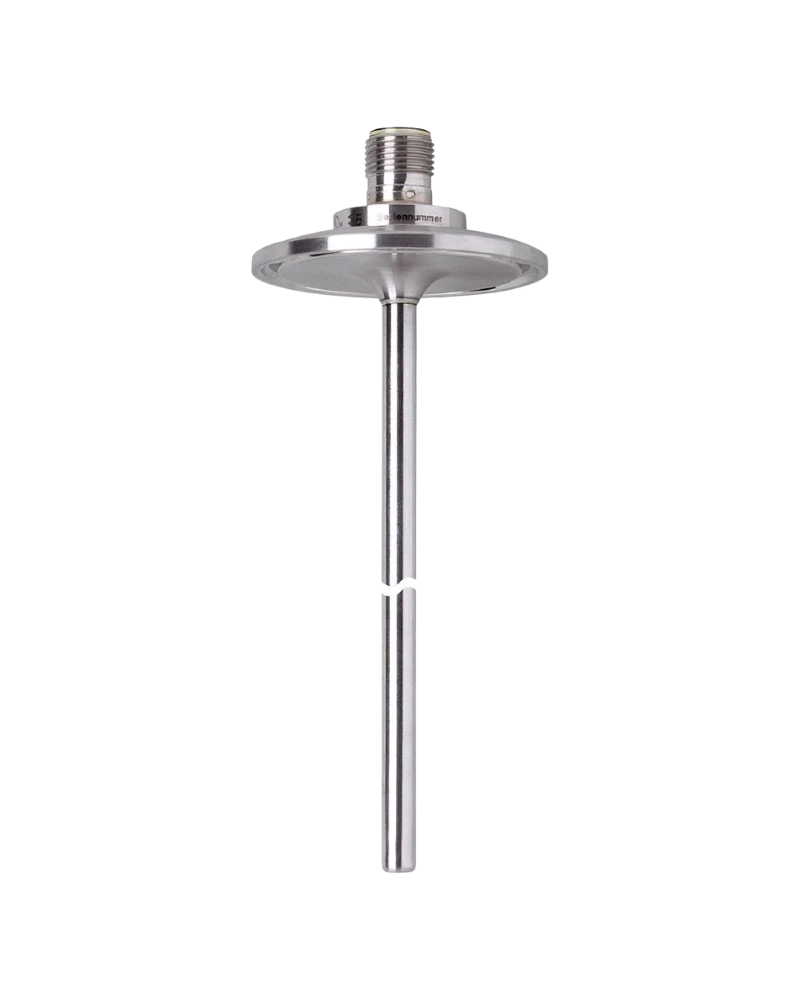

The TM4911 is a hygienic Pt100 temperature sensor with a 50 mm installation length and Clamp DN50 process connection. It provides reliable temperature measurement from -40 to 150 °C. The Class A RTD element supports accurate and repeatable process monitoring. Stainless-steel construction and IP68/IP69K protection make it suitable for demanding hygienic environments. The M12 connection provides convenient integration with evaluation and control equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4911 is designed for larger hygienic process connections where a 50 mm probe is required. Its Pt100 Class A element supports precise process temperature monitoring. The DN50 clamp connection allows hygienic mounting. The stainless-steel body supports industrial durability. The sensor is suitable for liquid and gaseous media.
The -40...150 °C measuring range covers a broad range of industrial processes. The Class A Pt100 element provides standardized resistance measurement. The 50 mm probe provides suitable immersion for many process vessels. The 1/3 second T05/T09 response supports dynamic temperature monitoring. The sensor can be used continuously with compatible evaluation systems.
The DN50 clamp connection follows DIN 32676/ISO 2852. The clamp interface supports hygienic installation and service. M12 electrical connectivity simplifies wiring. Gold-plated contacts support reliable signal connection. The sensor is suitable for integration with temperature evaluation units.
The sensor supports a 25 bar pressure rating. IP68/IP69K protection supports wet, washdown and industrial environments. Stainless-steel construction provides resistance to corrosion. The hygienic process design supports food and beverage applications. Shock and vibration resistance provide additional mechanical robustness.
The M12 connection allows efficient maintenance. The clamp process interface makes inspection straightforward. Seals should be inspected during preventive maintenance. The probe should be kept clean to preserve hygienic performance. Correct process mounting helps maintain measurement stability.
Pt100 Class A
50 mm installation length
Clamp DN50
-40...150 °C range
25 bar pressure rating
6 mm probe
IP68/IP69K
316L stainless steel
Hygienic design
M12 connector
Gold-plated contacts
Fast response
Food processing
Beverage production
Brewing
Dairy processing
Process tanks
Hygienic pipelines
CIP systems
Liquid monitoring
Gas monitoring
Process control
Temperature automation
Industrial process monitoring
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM4911 |
| 2 | Product Family | Hygienic RTD Sensors |
| 3 | Product Type | Clamp temperature sensor |
| 4 | Model Designation | TM-050KFEC02- /US/ |
| 5 | Measuring Element | 1 x Pt100 |
| 6 | Sensor Class | Class A |
| 7 | Measuring Range | -40...150 °C |
| 8 | Fahrenheit Range | -40...302 °F |
| 9 | Process Connection | Clamp DN50 (2") |
| 10 | Standard | DIN 32676 / ISO 2852 |
| 11 | Installation Length | 50 mm |
| 12 | Probe Length | 50 mm |
| 13 | Probe Diameter | 6 mm |
| 14 | Media | Liquids and gases |
| 15 | Pressure Rating | 25 bar |
| 16 | Minimum Installation Depth | 15 mm |
| 17 | Accuracy | ±(0.15 K + 0.002 × |
| 18 | Dynamic Response | 1 / 3 s |
| 19 | Ambient Temperature | -25...80 °C |
| 20 | Storage Temperature | -40...100 °C |
| 21 | Protection Rating | IP68 / IP69K |
| 22 | Protection Class | III |
| 23 | Housing Material | Stainless steel 316L |
| 24 | Wetted Surface | Hygienic stainless-steel surface |
| 25 | Electrical Connection | M12, gold-plated contacts |
