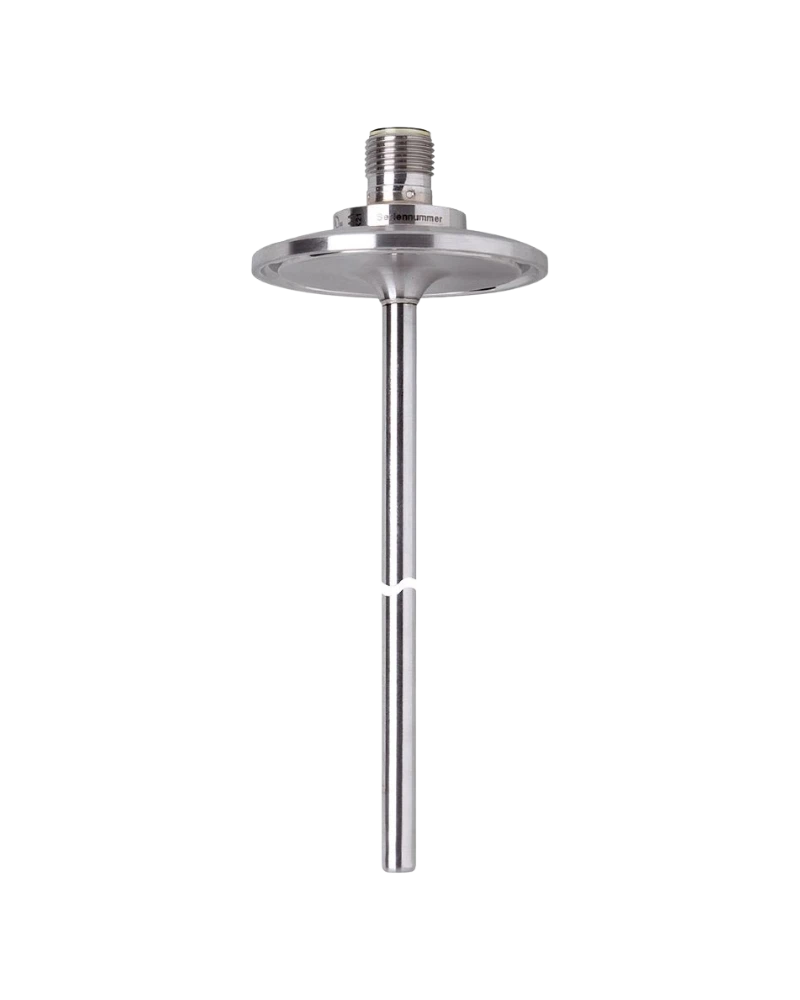

The TM4831 is a hygienic temperature sensor with a 100 mm installation length for accurate process temperature measurement. It uses a Pt100 Class A sensing element and a Clamp DN25 to DN40 process connection. The longer probe provides deeper immersion for tanks, vessels and process pipelines. Its stainless-steel construction and high ingress protection support demanding food and beverage applications. The M12 connection allows convenient integration with compatible temperature evaluation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4831 is designed for applications requiring extended temperature probe insertion. Its 100 mm installation length allows the sensing element to reach further into process media. The Pt100 Class A element provides dependable resistance-based temperature measurement. The hygienic clamp connection supports cleanable process installation. Its construction is suitable for continuous industrial service.
The sensor covers -40 to 150 °C. The Pt100 Class A element provides stable temperature measurement according to DIN EN 60751. The 100 mm probe length supports deeper measurement locations. Its fast response characteristic helps detect process temperature changes quickly. The sensor is suitable for continuous monitoring and process control.
The Clamp DN25...DN40 connection supports hygienic process integration. DIN 32676/ISO 2852 compatibility simplifies adapter selection. The M12 electrical connection provides convenient wiring. Stainless-steel wetted construction supports hygienic process requirements. The sensor is suitable for integration into evaluation and automation systems.
The robust stainless-steel body supports long-term industrial operation. The hygienic wetted surface is electropolished for improved cleanability. IP68/IP69K protection provides resistance to water and washdown environments. The sensor is designed for liquid and gaseous media. Shock and vibration resistance support industrial installation conditions.
The M12 connector simplifies service and replacement. The clamp process connection provides convenient access during maintenance. Routine inspection of the clamp seal helps maintain process integrity. Cleaning of the sensing area helps preserve hygienic performance. Proper insertion length and adapter selection support consistent measurement.
100 mm installation length
Pt100 Class A element
-40...150 °C range
Clamp DN25...DN40
DIN 32676 / ISO 2852
6 mm probe
Stainless-steel construction
IP68/IP69K protection
M12 electrical connection
Gold-plated contacts
Fast temperature response
Hygienic process design
Food and beverage plants
Dairy processing
Brewing equipment
Hygienic tanks
Process vessels
Production pipelines
CIP systems
Liquid temperature measurement
Gas temperature measurement
Process automation
Temperature control
Industrial process monitoring
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM4831 |
| 2 | Product Family | Hygienic RTD Sensors |
| 3 | Product Type | Clamp temperature sensor |
| 4 | Model Designation | TM-100KFEC01- /US/ |
| 5 | Measuring Element | 1 x Pt100 |
| 6 | Sensor Class | Class A |
| 7 | Measuring Range | -40...150 °C |
| 8 | Fahrenheit Range | -40...302 °F |
| 9 | Process Connection | Clamp DN25...DN40 |
| 10 | Standard | DIN 32676 / ISO 2852 |
| 11 | Installation Length | 100 mm |
| 12 | Probe Length | 100 mm |
| 13 | Probe Diameter | 6 mm |
| 14 | Media | Liquids and gases |
| 15 | Pressure Rating | 25 bar |
| 16 | Minimum Installation Depth | 15 mm |
| 17 | Accuracy | ±(0.15 K + 0.002 × |
| 18 | Dynamic Response | 1 / 3 s |
| 19 | Ambient Temperature | -25...80 °C |
| 20 | Storage Temperature | -40...100 °C |
| 21 | Protection Rating | IP68 / IP69K |
| 22 | Protection Class | III |
| 23 | Housing Material | Stainless steel 316L |
| 24 | Wetted Material | Electropolished stainless steel |
| 25 | Electrical Connection | M12, gold-plated contacts |
