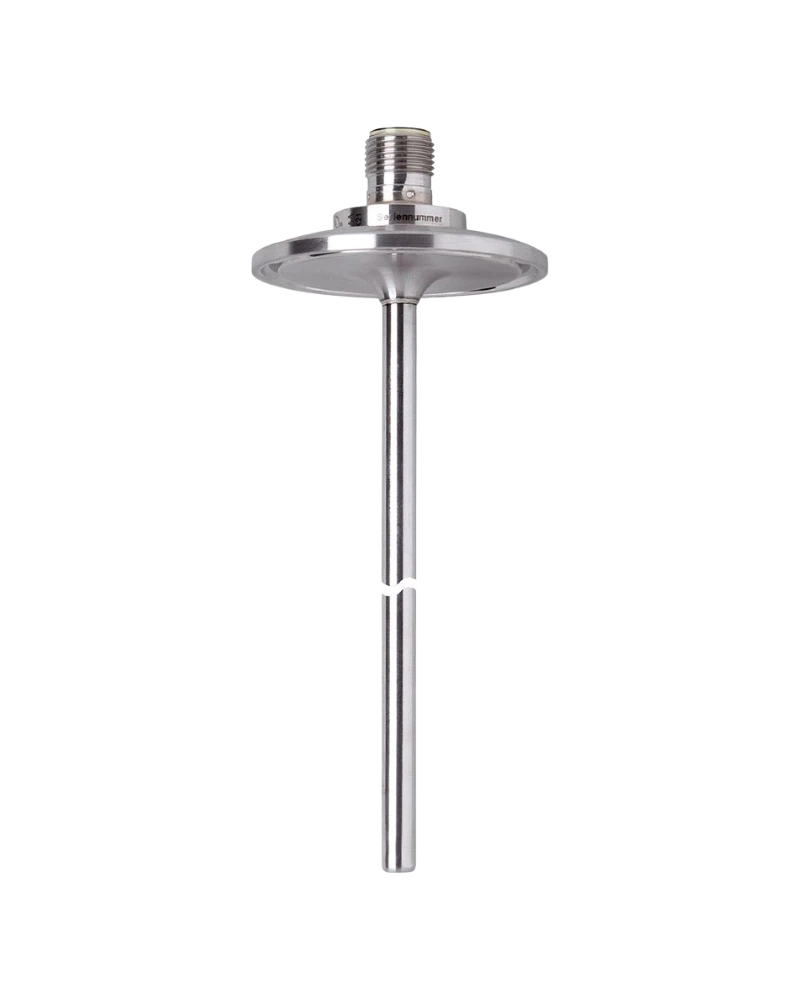

The TM4831 is an IFM hygienic temperature sensor designed for reliable process-temperature measurement in food and beverage applications. Its 100 mm installation length provides deeper immersion for process vessels and pipelines. The DN25...DN40 clamp connection supports hygienic installation according to compatible sanitary standards. The Pt 100 Class A sensing element provides stable and repeatable temperature measurement. Its passive RTD signal is designed for connection to an external temperature evaluation unit.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4831 features a stainless-steel 316L process-contact design. Its 100 mm probe provides useful immersion for larger hygienic process installations. The clamp connection supports quick installation in suitable sanitary piping. Electropolished wetted surfaces help support hygienic cleaning procedures. The M12 connector provides a compact industrial electrical interface.
The Pt 100 Class A sensor provides reliable temperature measurement. The -40...150 °C range supports many hygienic process applications. The 100 mm installation length enables deeper sensing in tanks and vessels. The passive RTD output allows connection to external temperature evaluation electronics. Its fast response supports processes where temperature changes need to be monitored.
The clamp connection provides practical installation for hygienic process systems. Stainless-steel construction supports suitable cleanable process equipment. The sensor can be connected to a PLC RTD input or evaluation unit. Gold-plated contacts improve electrical connection reliability. The design is suitable for food, beverage, dairy and sanitary process equipment.
Pt 100 Class A
100 mm installation length
Clamp DN25...DN40
DIN 32676 / ISO 2852
316L stainless steel
Electropolished wetted parts
Ra <0.8 µm
-40...150 °C
Passive RTD output
M12 A-coded connector
Gold-plated contacts
25 bar pressure rating
IP68 / IP69K
Hygienic construction
External evaluation
Food processing
Beverage processing
Dairy systems
Brewing equipment
Hygienic vessels
Process tanks
Sanitary pipelines
CIP systems
Filling machinery
Liquid temperature monitoring
Process control
Temperature regulation
PLC RTD systems
Industrial automation
Thermal processing
| Specification | Details |
|---|---|
| Product Model | TM4831 |
| Type Code | TM-100KFEC01- /US/ |
| Sensor | Pt 100 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40...150 °C |
| Installation Length | 100 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Application | Hygienic systems |
| Media | Liquids and gases |
| Pressure Rating | 25 bar |
| Minimum Installation Depth | 15 mm |
| Accuracy | ±(0.15 K + 0.002 × |
| Response | 1 / 3 s T05/T09 |
| Output | Passive RTD |
| Housing | Cylindrical |
| Material | 316L / 1.4404 |
| Wetted Surface | Electropolished |
| Surface Roughness | Ra <0.8 µm |
| Connector | M12 A-coded |
| Contacts | Gold-plated |
| Protection | IP68 / IP69K |
| Protection Class | III |
| Evaluation | External |
