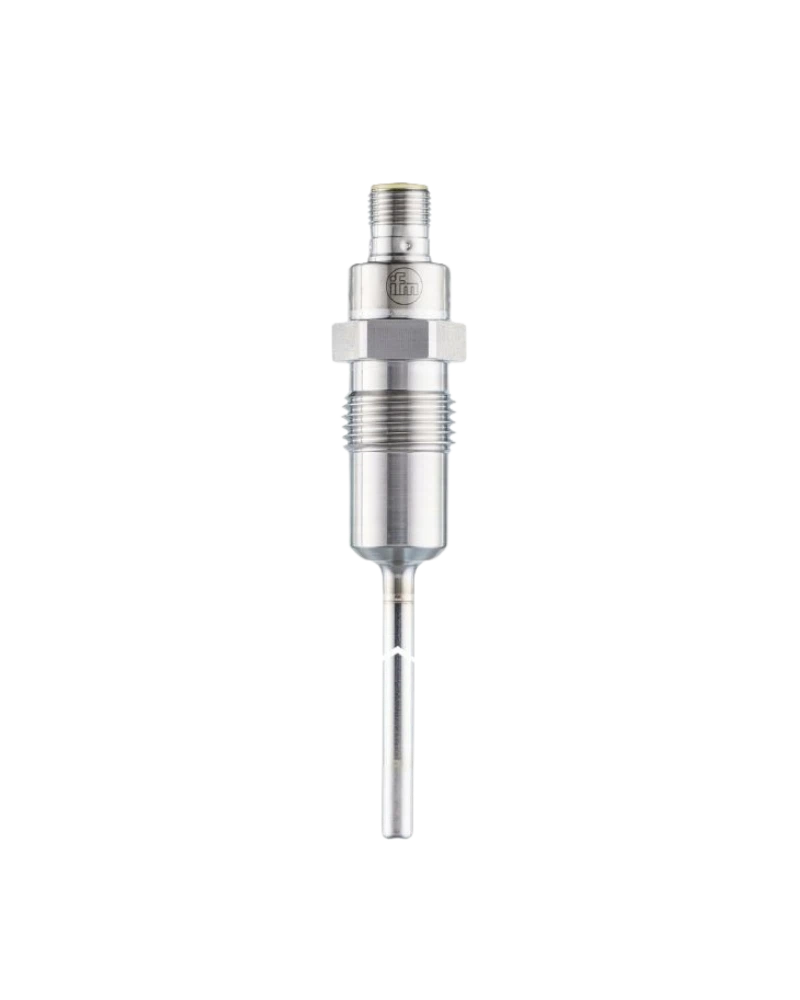

The TM4511 is a hygienic RTD temperature sensor designed for reliable process temperature measurement with a 50 mm installation length. Its hygienic process connection supports clean and secure installation in sanitary production equipment. The sensor uses a stainless-steel construction and Pt100 sensing element for stable temperature measurement. Its extended probe length provides deeper process contact than the compact TM4501 version. The sensor is suitable for food, beverage, pharmaceutical and other hygienic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4511 is designed for hygienic process applications requiring a 50 mm sensing depth. Its process connection supports clean installation into compatible equipment. The stainless-steel construction provides durable process contact. The Pt100 element delivers standard RTD temperature measurement. The sensor is suitable for continuous process monitoring and temperature-control systems.
The sensor operates across approximately -40...150 °C. Its Pt100 element provides reliable resistance-based temperature sensing. The 50 mm installation length provides moderate process immersion. Thermal response is suitable for many process temperature-control applications. The RTD signal can be evaluated by compatible temperature transmitters or controllers.
The hygienic process connection provides secure process integration. The 50 mm installation length is suitable for many tanks and process pipelines. Compatible electrical connection hardware enables integration with RTD evaluation systems. The sensor can be used with PLC temperature modules and process controllers. Correct hygienic sealing and mounting practices should be followed.
The sensor relies on external evaluation electronics for diagnostic information. Resistance measurements can be used for sensor-condition checks. Hygienic process surfaces should be maintained according to the application cleaning procedure. Periodic inspection of the process connection supports reliable operation. Calibration checks can be incorporated into preventive maintenance programs.
50 mm installation length
Pt100 RTD sensing
Hygienic process connection
Stainless-steel construction
-40...150 °C range
Compact hygienic design
Fast thermal response
Process-contact measurement
Food-industry suitable construction
External RTD evaluation
Food processing
Beverage plants
Dairy processing
Pharmaceutical systems
Hygienic tanks
Filling machines
Mixing equipment
Process pipelines
CIP-compatible systems
Temperature-control applications
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM4511 |
| 2 | Product Family | TM Hygienic Sensors |
| 3 | Product Type | Hygienic RTD temperature sensor |
| 4 | Sensor Element | Pt100 |
| 5 | Measuring Range | -40...150 °C |
| 6 | Installation Length | 50 mm |
| 7 | Process Connection | G1/2 hygienic sealing connection |
| 8 | Signal | RTD resistance |
| 9 | Probe Material | Stainless steel |
| 10 | Wetted Material | Stainless steel |
| 11 | Electrical Interface | Sensor connector configuration |
| 12 | Installation Type | Hygienic process mounting |
| 13 | Process Media | Food and process liquids |
| 14 | Surface Finish | Hygienic |
| 15 | Thermal Response | Fast process response |
| 16 | Evaluation | External RTD electronics |
| 17 | Controller Interface | RTD-compatible |
| 18 | Maintenance | Hygienic inspection |
| 19 | Calibration | External evaluation |
| 20 | Temperature Monitoring | Continuous |
| 21 | Housing | Stainless steel |
| 22 | Sealing | Hygienic process seal |
| 23 | Application Class | Hygienic |
| 24 | Mounting | Process connection |
| 25 | Primary Function | Hygienic process temperature measurement |
