The TM4511 is an IFM Pt 100 Class A temperature sensor designed for accurate temperature measurement in industrial process applications. Its 50 mm installation length provides practical immersion for process pipes and equipment. The G 1/2 external thread with sealing cone provides secure process installation. The sensor provides a passive RTD signal for connection to an external evaluation unit. Its stainless-steel construction, M12 connector and IP68/IP69K protection support demanding industrial environments. IFM specifies -40...150 °C, 160 bar pressure rating and 1/3 second T05/T09 response for this model.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

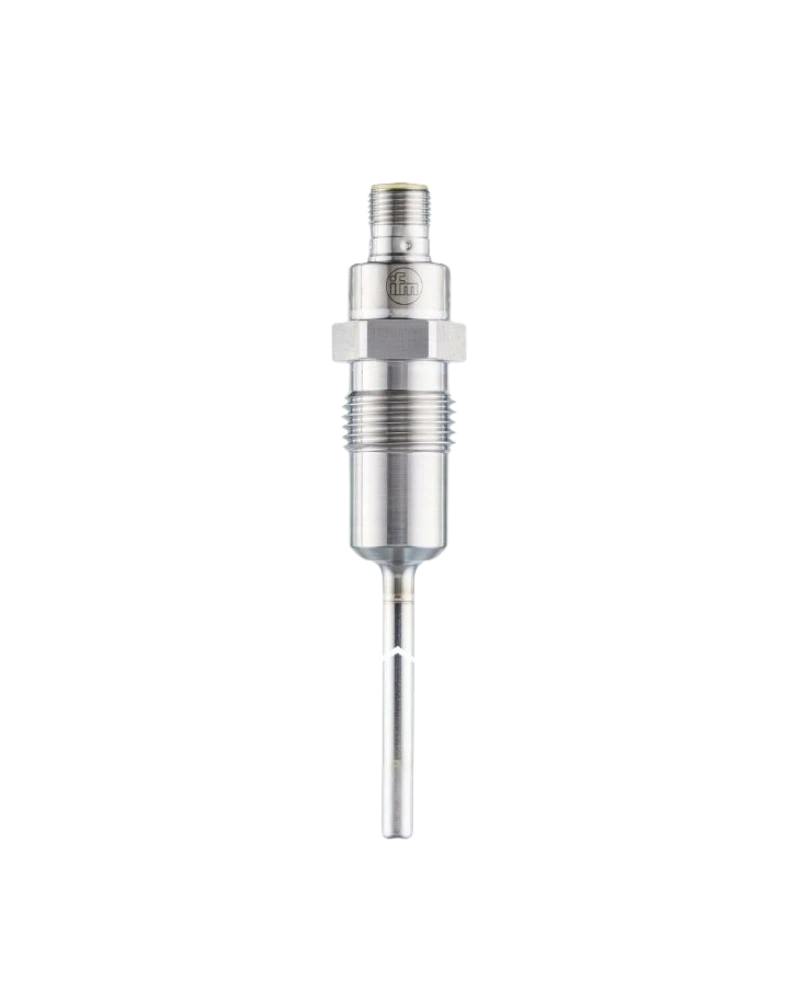

The TM4511 uses a cylindrical stainless-steel body designed for industrial process measurement. Its 50 mm probe provides a useful balance between compact installation and immersion depth. The 6 mm probe diameter allows installation in suitable process fittings. Stainless-steel 316L wetted materials provide durability and process compatibility. The M12 connection uses gold-plated contacts.
The Pt 100 Class A element provides stable and repeatable temperature measurement. The sensor covers -40...150 °C and is suitable for liquids and gases. The 50 mm installation length allows the sensing element to reach into the process medium. Its T05/T09 response is approximately 1/3 seconds. The passive RTD signal is evaluated by a compatible external temperature unit.
The G 1/2 external thread provides a secure process connection. The sealing cone supports suitable process sealing arrangements. The M12 A-coded connector provides convenient electrical integration. Gold-plated contacts help maintain reliable signal transmission. The sensor can be integrated with PLC temperature modules and industrial controllers.
Pt 100 Class A
50 mm installation length
G 1/2 external thread
Sealing cone
6 mm probe
-40...150 °C
160 bar pressure rating
Passive RTD output
M12 A-coded connector
Gold-plated contacts
IP68 / IP69K
1 / 3 s response
Stainless-steel construction
External evaluation
Liquid and gas measurement
Industrial piping
Cooling systems
Heating systems
Pumps
Compressors
Process skids
Machine tools
Process equipment
Liquid temperature monitoring
Gas temperature monitoring
PLC RTD inputs
Temperature controllers
Thermal processing
Machine protection
Industrial automation
| Specification | Details |
|---|---|
| Product Model | TM4511 |
| Type Code | TM-050KFER12- /US/ |
| Sensor | Pt 100 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40...150 °C |
| Installation Length | 50 mm |
| Probe Diameter | 6 mm |
| Process Connection | G 1/2 external thread |
| Seal | Sealing cone |
| Media | Liquids and gases |
| Pressure Rating | 160 bar |
| Minimum Installation Depth | 15 mm |
| Accuracy | ±(0.15 K + 0.002 × |
| Response T05/T09 | 1 / 3 s |
| Output | Passive RTD |
| Housing | Cylindrical |
| Material | 316L / 1.4404 |
| Wetted Material | Stainless steel |
| Connector | M12 A-coded |
| Contacts | Gold-plated |
| Protection Class | III |
| Protection | IP68 / IP69K |
| Ambient Temperature | -25...80 °C |
| Storage Temperature | -40...100 °C |
| Evaluation | External |
