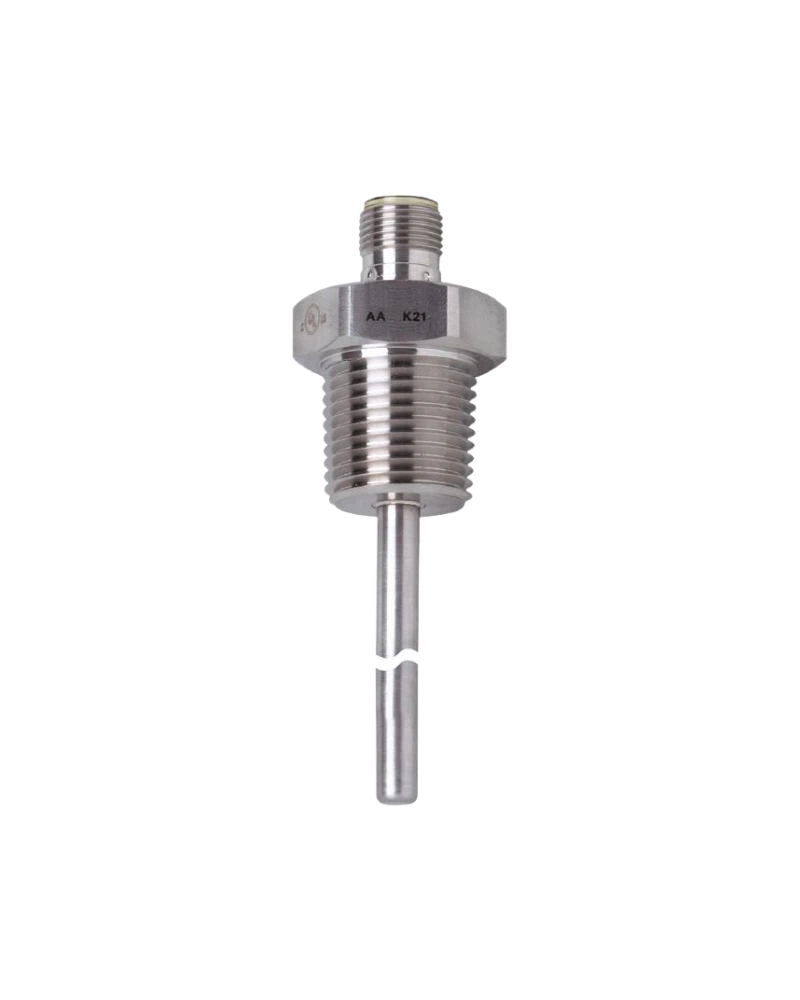

The TM4441 is an industrial Pt100 temperature sensor designed for process temperature measurement with a 150 mm installation length. Its G1/2 threaded connection provides secure process installation. The longer probe enables temperature sensing deeper inside tanks, vessels and process equipment. An M12 connector supports connection to compatible RTD evaluation systems. The stainless-steel construction provides durability for continuous industrial temperature monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4441 is designed for applications requiring a 150 mm sensing depth. Its extended probe allows measurement deeper within process media. The G1/2 connection provides a robust industrial mounting interface. The sensor uses a standard Pt100 element. Its compact electrical connection simplifies system integration.
The sensor measures approximately -40...150 °C. The Pt100 element provides stable RTD measurement. The 150 mm probe supports deeper process immersion. Thermal response depends on process conditions and installation. The sensor is suitable for general industrial temperature monitoring.
The G1/2 connection supports threaded process installation. The M12 connector enables practical electrical integration. The sensor can be connected to PLC RTD inputs and temperature transmitters. Extended probes should be installed with appropriate mechanical clearance. Proper sealing helps prevent process leakage.
The sensor works with external RTD electronics for diagnostics. Resistance checks can identify wiring or sensor problems. The probe should be inspected for mechanical deformation. Process seals should be checked periodically. Calibration verification can be included in maintenance schedules.
Pt100 element
150 mm installation length
G1/2 process connection
M12 connector
-40...150 °C range
Stainless-steel probe
RTD signal
Deep process measurement
Industrial construction
External evaluation compatible
Industrial tanks
Process vessels
Heating equipment
Cooling systems
Hydraulic systems
Process lines
Pumps
Compressors
Machine tools
Temperature control
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM4441 |
| 2 | Product Family | TM |
| 3 | Product Type | RTD temperature sensor |
| 4 | Sensor Element | Pt100 |
| 5 | Measuring Range | -40...150 °C |
| 6 | Process Connection | G1/2 |
| 7 | Installation Length | 150 mm |
| 8 | Electrical Connection | M12 |
| 9 | Signal Principle | RTD |
| 10 | Probe Material | Stainless steel |
| 11 | Wetted Material | Stainless steel |
| 12 | Installation Method | Threaded |
| 13 | Process Media | Liquids and gases |
| 14 | Probe Construction | Cylindrical |
| 15 | Response | Thermal RTD |
| 16 | Evaluation | External RTD electronics |
| 17 | Controller Interface | RTD-compatible |
| 18 | Maintenance | Passive sensor |
| 19 | Calibration | External evaluation |
| 20 | Monitoring | Continuous |
| 21 | Housing | Stainless steel |
| 22 | Connector | M12 |
| 23 | Application | Industrial |
| 24 | Mounting | Direct process |
| 25 | Function | Temperature sensing |
