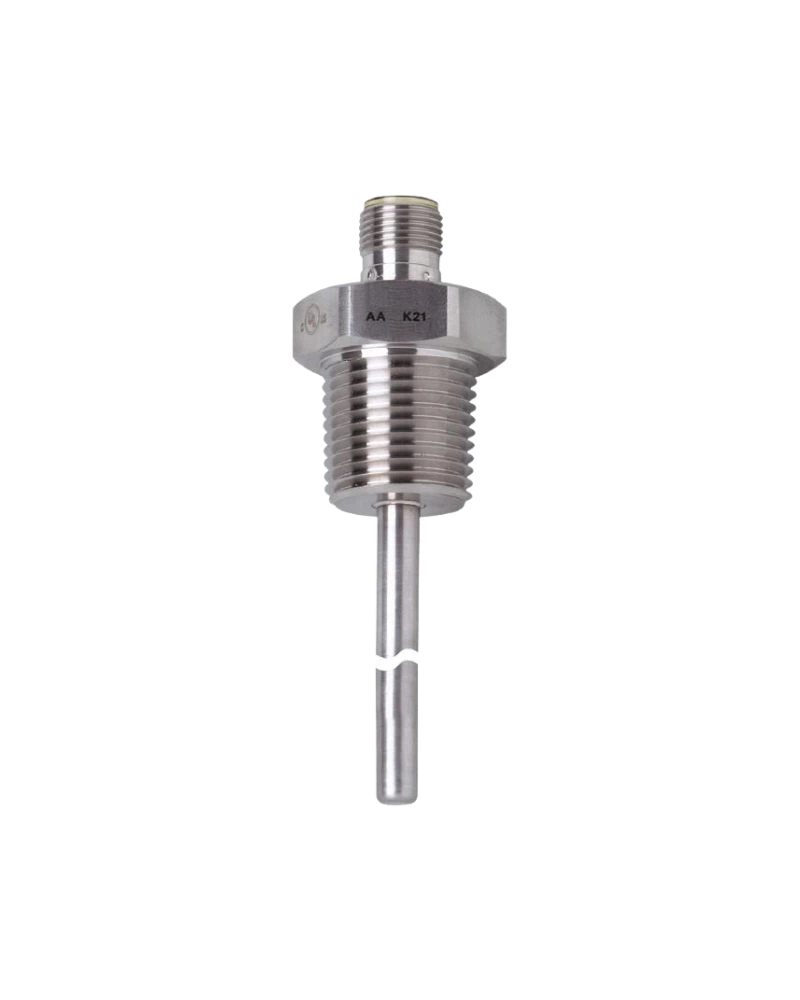

The TM4411 is an industrial RTD temperature sensor designed for process temperature measurement with a 50 mm installation length. Its G1/2 process connection provides a secure threaded interface for industrial equipment. The Pt100 sensing element delivers standard resistance-based temperature measurement. The M12 connector enables integration with compatible temperature transmitters and control systems. Its stainless-steel construction makes it suitable for reliable measurement in industrial process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4411 provides a 50 mm installation depth for general industrial temperature sensing. The G1/2 connection supports common process installation requirements. Its compact cylindrical design fits many machinery and process applications. The sensor provides a direct RTD measurement signal. It is suitable for continuous temperature monitoring.
The sensor covers approximately -40...150 °C. The Pt100 element provides stable RTD temperature measurement. The 50 mm installation length gives moderate process penetration. Its stainless-steel construction supports reliable thermal contact. External evaluation equipment converts the RTD signal into usable control data.
The G1/2 connection supports threaded process mounting. The M12 connector provides practical field wiring. The sensor can connect to temperature controllers and PLC RTD inputs. Its compact installation format suits machinery and process equipment. Proper sealing should be used for the selected process connection.
RTD diagnostics can be performed through connected evaluation electronics. Sensor resistance can be checked during maintenance. The process connection should be inspected for mechanical integrity. The M12 connector should remain clean and properly tightened. Periodic calibration verification helps maintain measurement quality.
Pt100 RTD
50 mm installation length
G1/2 process connection
M12 connector
-40...150 °C range
Stainless-steel probe
Compact design
RTD signal output
Industrial construction
Easy evaluation-system integration
Industrial machinery
Process lines
Hydraulic systems
Cooling equipment
Heating systems
Pumps
Compressors
Machine tools
Process monitoring
Automation systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM4411 |
| 2 | Product Family | TM |
| 3 | Product Type | RTD temperature sensor |
| 4 | Sensor Element | Pt100 |
| 5 | Measuring Range | -40...150 °C |
| 6 | Process Connection | G1/2 |
| 7 | Installation Length | 50 mm |
| 8 | Electrical Connection | M12 |
| 9 | Signal | RTD resistance |
| 10 | Probe Material | Stainless steel |
| 11 | Wetted Material | Stainless steel |
| 12 | Mounting | Threaded |
| 13 | Process Media | Liquids and gases |
| 14 | Housing | Stainless steel |
| 15 | Probe Design | Cylindrical |
| 16 | Evaluation | External RTD electronics |
| 17 | Controller Interface | RTD-compatible |
| 18 | Response | Thermal RTD response |
| 19 | Calibration | External evaluation based |
| 20 | Maintenance | Passive sensor |
| 21 | Monitoring | Continuous |
| 22 | Connector | M12 |
| 23 | Application | Industrial |
| 24 | Installation | Direct process |
| 25 | Primary Function | Process temperature sensing |
