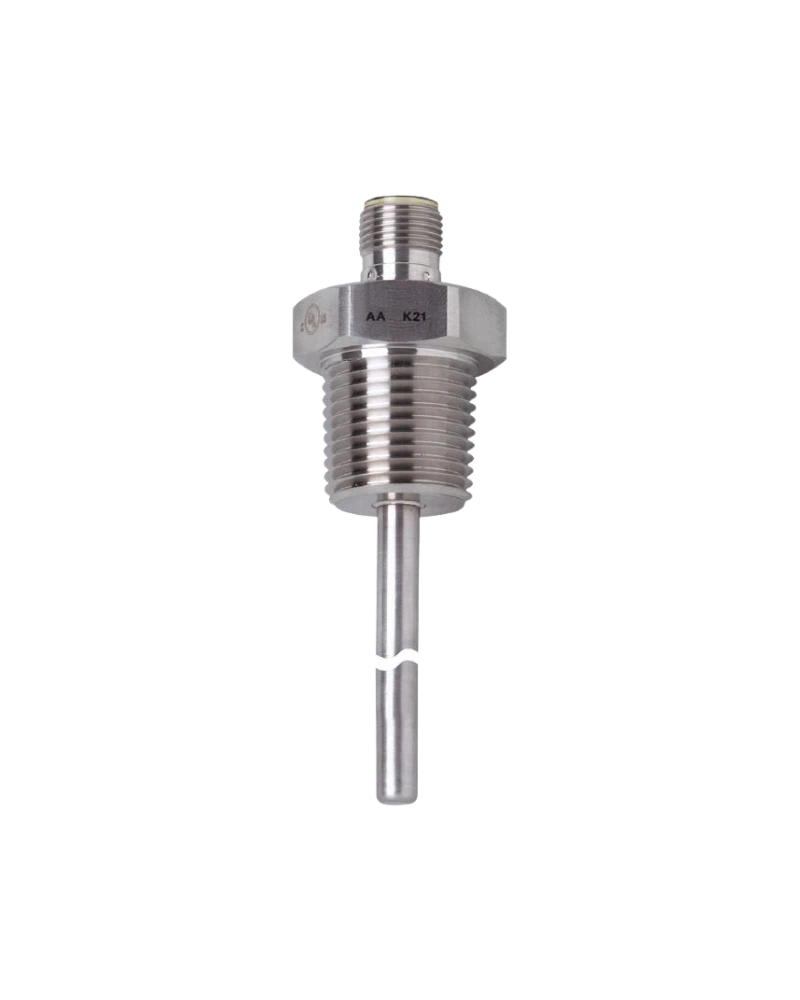

The TM4361 is a robust temperature sensor designed for accurate temperature measurement in industrial liquids and gases. It uses a Pt100 measuring element according to DIN EN 60751, Class A for dependable temperature sensing. The sensor features a 1/2" NPT external thread, 250 mm installation length, and a 6 mm probe diameter for process installation. Its stainless-steel construction provides durability for demanding industrial environments, while the M12 electrical connection supports reliable system integration. With a -40 to 150 °C measuring range, fast response, and IP68/IP69K protection, the TM4361 is suitable for process temperature monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4361 is designed for precise and reliable temperature measurement across a wide measuring range of -40 to 150 °C. It uses a Pt100 measuring element manufactured according to DIN EN 60751, Class A, ensuring accurate resistance-based temperature measurement. The sensor provides a specified accuracy of ±(0.15 K + 0.002 × |t|), making it suitable for demanding industrial process-monitoring applications. Its dynamic response time is approximately 1 second for T05 and 3 seconds for T09 under specified test conditions. This combination of measurement accuracy and fast response enables effective monitoring of temperature changes in industrial processes.
The TM4361 features a robust cylindrical stainless-steel construction developed for reliable operation in demanding industrial environments. The housing and wetted components are manufactured from 316L / 1.4404 stainless steel, providing high resistance to mechanical stress and chemical exposure. With a compact 6 mm probe diameter, the sensor can be installed in applications where space is limited. The 250 mm installation length allows the sensing element to reach the required measurement point inside tanks, pipelines, and process equipment. Its durable construction makes the sensor suitable for temperature measurement in both liquid and gas media.
The TM4361 is equipped with a 1/2" NPT external threaded process connection, allowing secure installation in compatible industrial process fittings and equipment. The threaded connection supports straightforward mechanical integration while maintaining a reliable connection in pressure-bearing applications. Its 250 mm installation length provides sufficient insertion depth for effective temperature measurement within the process medium. A minimum installation depth of 15 mm provides additional flexibility during installation. With a pressure rating of up to 160 bar / 16 MPa, the sensor is suitable for high-pressure process applications within its specified operating conditions.
The TM4361 uses a standardized 1 × M12 connector with A coding for electrical connection to compatible evaluation and automation systems. The connector contacts feature gold plating, helping provide reliable electrical conductivity and stable long-term connection performance. The sensor is intended for connection to an appropriate evaluation unit for processing and monitoring temperature measurements. Its Protection Class III electrical design provides the specified level of protection for the device. The standardized M12 interface also simplifies integration into industrial sensor, instrumentation, and automation systems.
The TM4361 is designed to operate reliably in demanding industrial environments and provides IP68 and IP69K protection against dust, water, and high-pressure cleaning conditions. The specified ambient operating temperature range is -25 to 80 °C, while the storage temperature range extends from -40 to 100 °C. The sensor is designed to withstand mechanical stresses commonly encountered in industrial installations. Its shock resistance is specified at 50 g for 11 ms, providing durability during mechanical impact conditions. In addition, vibration resistance of 5 g across 10–2000 Hz supports stable operation when installed near industrial machinery and vibrating equipment.
Pt100 temperature measuring element according to DIN EN 60751 Class A
Wide temperature measuring range from -40 to 150 °C
Measurement accuracy of ±(0.15 K + 0.002 × |t|)
Fast dynamic response time of approximately 1 second for T05
Dynamic response time of approximately 3 seconds for T09
1/2" NPT external threaded process connection
250 mm installation length
6 mm probe diameter
316L / 1.4404 stainless-steel construction
Pressure rating up to 160 bar / 16 MPa
1 × M12 A-coded electrical connector
Gold-plated connector contacts
IP68 and IP69K ingress protection
Cylindrical Ø30 mm housing
Suitable for liquid and gas media
Protection Class III electrical design
Industrial process temperature monitoring
Temperature measurement in pipelines and process lines
Temperature monitoring in tanks and vessels
Liquid temperature measurement systems
Gas temperature monitoring applications
Industrial heating and cooling systems
Fluid handling and processing equipment
Machine and equipment temperature monitoring
Temperature monitoring in pressure-bearing process systems
Process control and automation systems
Food and beverage processing equipment
Water treatment and fluid processing applications
Manufacturing and production process monitoring
Industrial instrumentation and evaluation systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM4361 |
| 2 | Product Model | TM-250KFBN12- /US/ |
| 3 | Product Type | Temperature sensor with process connection |
| 4 | Manufacturer | ifm electronic |
| 5 | Measuring Element | 1 × Pt100 |
| 6 | Sensor Standard | DIN EN 60751, Class A |
| 7 | Measuring Range | -40 to 150 °C |
| 8 | Measuring Range | -40 to 302 °F |
| 9 | Accuracy | ±(0.15 K + 0.002 × |t|) |
| 10 | Dynamic Response T05 | 1 s |
| 11 | Dynamic Response T09 | 3 s |
| 12 | Process Connection | 1/2" NPT external thread |
| 13 | Installation Length | 250 mm |
| 14 | Probe Length | 242 mm |
| 15 | Probe Diameter | 6 mm |
| 16 | Minimum Installation Depth | 15 mm |
| 17 | Pressure Rating | 160 bar / 16 MPa |
| 18 | Housing Material | Stainless steel 316L / 1.4404 |
| 19 | Wetted Parts Material | Stainless steel 316L / 1.4404 |
| 20 | Housing Design | Cylindrical |
| 21 | Housing Dimensions | Ø30 × 285 mm |
| 22 | Electrical Connection | 1 × M12, A-coded |
| 23 | Connector Contacts | Gold-plated |
| 24 | Protection Rating | IP68 / IP69K |
| 25 | Operating Ambient Temperature | -25 to 80 °C |
