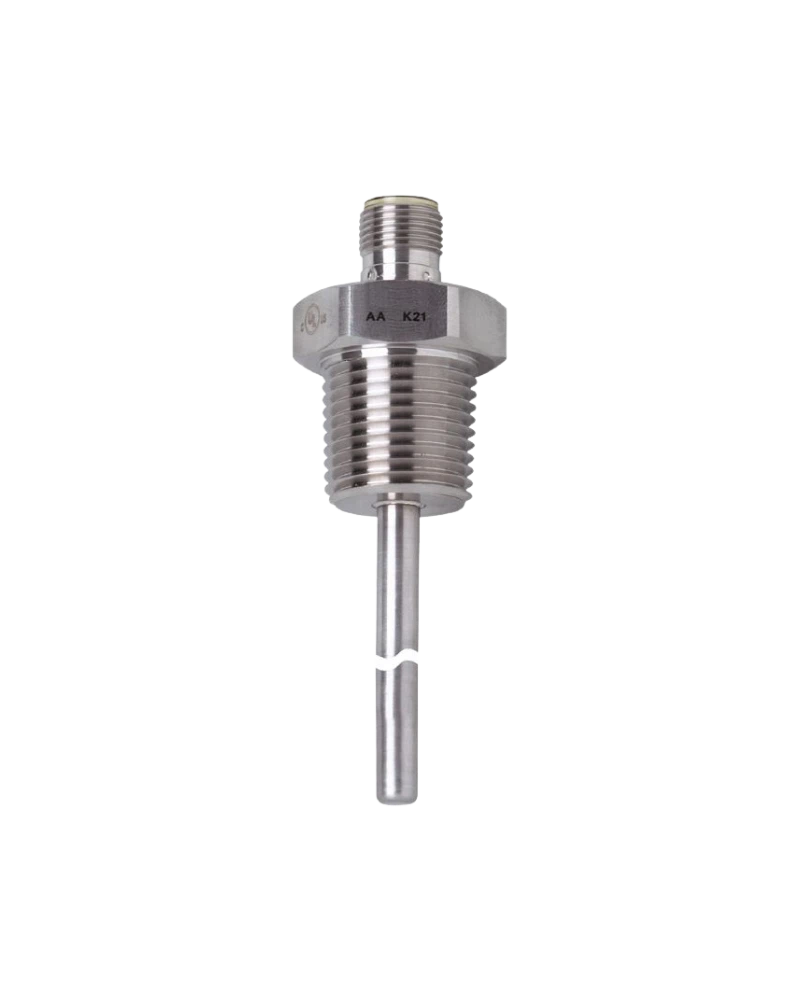

The TM4341 is a Pt100 industrial temperature sensor with a 150 mm installation length. It is designed for temperature measurement in process equipment where deeper probe insertion is required. The 1/2-inch NPT connection provides secure threaded process mounting. Its M12 connector allows straightforward connection to compatible RTD evaluation systems. The sensor is suitable for industrial machinery, process lines, tanks and temperature-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4341 extends the TM industrial sensor range with a 150 mm sensing depth. It is suitable for applications where short probes cannot reach the desired measurement location. The threaded process interface supports secure installation. The stainless-steel probe provides robust process contact. Its compact electrical interface simplifies field integration.
The Pt100 element provides reliable RTD temperature sensing. The sensor operates across approximately -40...150 °C. Its 150 mm probe supports deeper temperature measurement. The thermal response is suitable for general industrial process monitoring. Compatible RTD electronics can convert the resistance signal for control systems.
The 1/2-inch NPT process connection supports industrial installation. The 150 mm installation length provides extended process penetration. The M12 connector supports field wiring. The sensor can connect to PLC RTD modules, transmitters and controllers. Proper mechanical support should be considered for longer probe installations.
The sensor provides a passive RTD signal, allowing diagnostics through the connected controller. Open-circuit detection can be implemented by suitable evaluation equipment. Regular inspection of the probe and process thread helps maintain reliability. Mechanical damage should be avoided during installation and cleaning. Periodic calibration checks support measurement accuracy.
Pt100 sensing element
150 mm installation length
1/2-inch NPT process connection
M12 connector
-40...150 °C range
Stainless-steel probe
RTD resistance output
Industrial construction
Deep process measurement
PLC-compatible through RTD evaluation
Process tanks
Industrial vessels
Hydraulic systems
Machine tools
Heating systems
Cooling systems
Process pipelines
Compressors
Pumps
Automation equipment
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM4341 |
| 2 | Product Family | TM |
| 3 | Product Type | RTD temperature sensor |
| 4 | Sensor Element | Pt100 |
| 5 | Measuring Range | -40...150 °C |
| 6 | Process Connection | 1/2-inch NPT |
| 7 | Installation Length | 150 mm |
| 8 | Electrical Connection | M12 |
| 9 | Signal | RTD resistance |
| 10 | Probe Material | Stainless steel |
| 11 | Wetted Material | Stainless steel |
| 12 | Mounting | Threaded |
| 13 | Process Media | Liquids and gases |
| 14 | Sensor Construction | Cylindrical probe |
| 15 | Response | Thermal RTD response |
| 16 | Evaluation | External RTD electronics |
| 17 | Controller Interface | RTD input |
| 18 | Maintenance | Passive sensor |
| 19 | Calibration | Evaluation-system based |
| 20 | Temperature Monitoring | Continuous |
| 21 | Housing | Stainless steel |
| 22 | Connector | M12 |
| 23 | Application | Industrial |
| 24 | Installation | Direct process |
| 25 | Primary Function | Temperature measurement |
