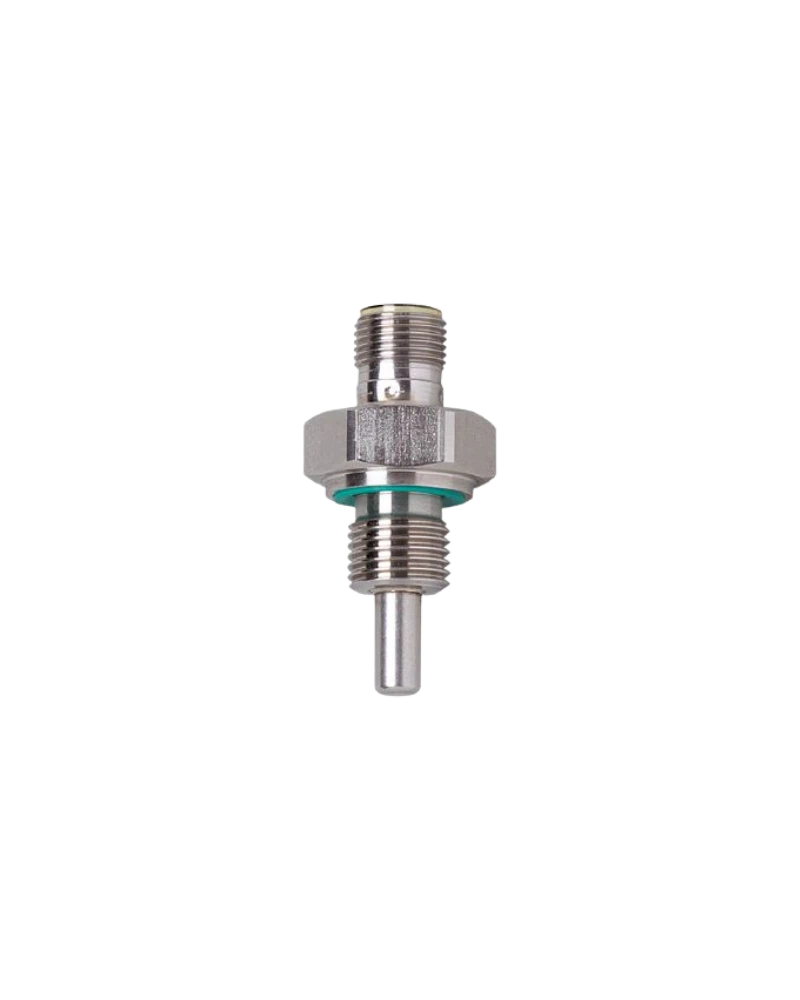

The TM4101 is a compact RTD temperature sensor designed for industrial process temperature measurement. It features a short 25 mm installation length and G1/4 process connection for compact equipment. The sensor uses a Pt100 measuring element for accurate temperature detection. Its M12 electrical connection supports straightforward integration into automation systems. The compact stainless-steel construction makes it suitable for machinery, process lines and temperature-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4101 is designed for applications requiring a short temperature probe. Its 25 mm installation length is useful where installation space is limited. The G1/4 process connection supports compact machine-level installation. The sensor provides a direct RTD measurement signal to a suitable evaluation system. Its industrial construction supports reliable continuous operation.
The sensor measures temperature over approximately -40...150 °C. The Pt100 element provides standard RTD temperature sensing. The compact probe supports fast thermal response. The sensor is intended for use with compatible RTD evaluation electronics. Temperature data can be integrated into PLC and control architectures through suitable evaluation equipment.
The G1/4 process connection allows direct installation into compatible machine components. The 25 mm installation length provides shallow insertion. The M12 connector supports industrial wiring. The sensor can be connected to RTD transmitters, controllers and temperature modules. Correct mechanical sealing is important for process reliability.
The sensor itself provides passive RTD measurement rather than active digital diagnostics. Condition monitoring is generally performed by the connected evaluation system. Periodic inspection of the probe and process connection helps maintain accuracy. Connector cleanliness should be maintained. Proper calibration practices help ensure long-term measurement reliability.
Pt100 RTD element
25 mm installation length
G1/4 process connection
M12 electrical connection
-40...150 °C measurement range
Compact construction
Stainless-steel process interface
Fast thermal response
Industrial design
Easy PLC integration through evaluation electronics
Machine tools
Hydraulic systems
Cooling equipment
Heating equipment
Pumps
Compressors
Industrial process lines
Temperature controllers
Machine monitoring
Automation systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM4101 |
| 2 | Product Family | TM Temperature Sensors |
| 3 | Product Type | RTD temperature sensor |
| 4 | Measuring Element | Pt100 |
| 5 | Measuring Range | -40...150 °C |
| 6 | Process Connection | G1/4 |
| 7 | Installation Length | 25 mm |
| 8 | Probe Construction | Stainless steel |
| 9 | Electrical Connection | M12 |
| 10 | Signal Type | RTD |
| 11 | Output Principle | Resistance measurement |
| 12 | Sensor Class | Industrial RTD |
| 13 | Process Media | Liquids and gases |
| 14 | Housing | Stainless steel |
| 15 | Wetted Material | Stainless steel |
| 16 | Connector | M12 |
| 17 | Installation | Threaded |
| 18 | Application | Industrial temperature sensing |
| 19 | Response | Fast compact-probe response |
| 20 | Evaluation | External RTD electronics |
| 21 | Maintenance | Low-maintenance passive sensor |
| 22 | Mounting | Direct process mounting |
| 23 | Temperature Monitoring | Continuous |
| 24 | Integration | PLC/controller via RTD input |
| 25 | Construction | Compact cylindrical sensor |
