The TD2907 is an IFM compact temperature transmitter designed for reliable local and remote process-temperature monitoring. It uses a Pt 1000 Class A element for stable temperature measurement and repeatable process feedback. Its 30 mm installation length is suitable for compact piping and machinery installations. The transmitter provides 4–20 mA output and IO-Link communication for flexible industrial integration. Its integrated display allows operators to view process temperature directly without an additional indicator.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

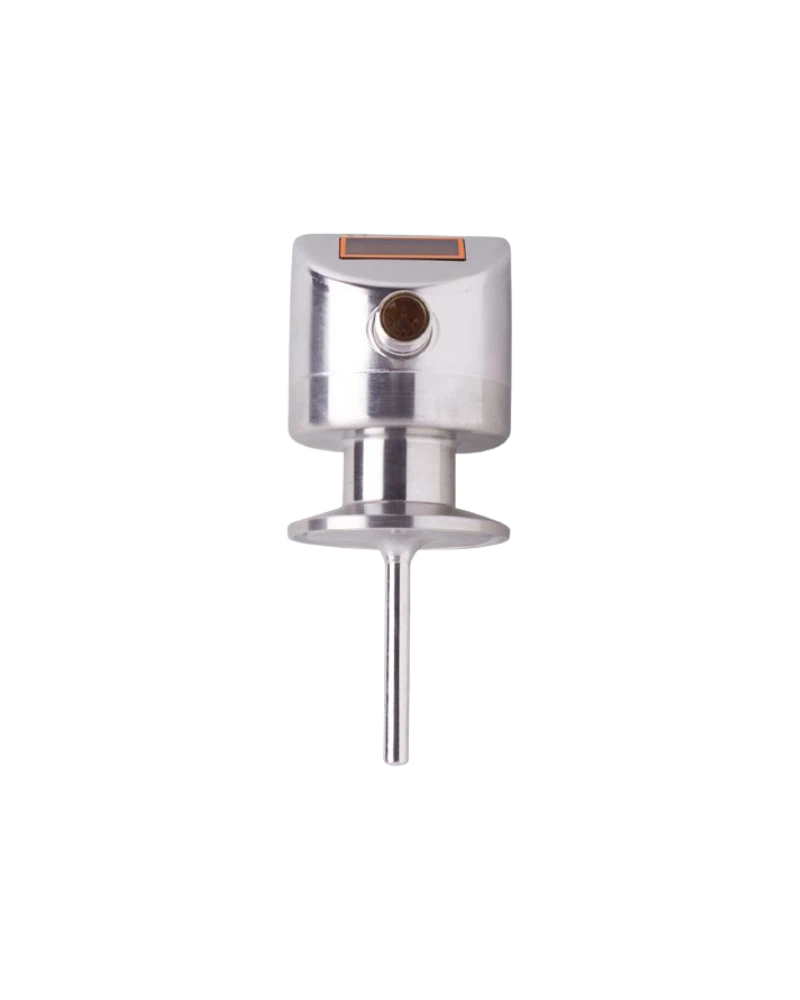

The TD2907 uses a compact probe assembly designed for installations with limited immersion depth. Stainless-steel process-contact materials provide a durable solution for suitable industrial media. The integrated transmitter electronics reduce the need for separate signal-conditioning equipment. The display is positioned for convenient local process indication. An M12 connector supports straightforward electrical installation. The compact design is suitable for automated process equipment and machinery.
The Pt 1000 Class A element provides accurate and repeatable temperature measurement. The 30 mm sensing length provides a short measurement point for compact installations. The analogue output provides a standard 4–20 mA temperature signal. IO-Link adds digital configuration and diagnostic capabilities. The fast response allows the device to follow process changes effectively. Installation should ensure adequate contact with the process medium for representative measurement.
The integrated LED display provides convenient local process-temperature indication. Celsius and Fahrenheit formats offer flexible display configuration. The M12 connector supports industrial electrical integration. IO-Link allows digital access to parameters and process values. The 4–20 mA output supports conventional PLC and controller systems. This combination allows the product to operate in mixed analogue and digital automation environments.
The TD2907 is suitable for food, beverage, process and machine-temperature applications. Its short installation length makes it useful where long probes cannot be accommodated. Stainless-steel construction supports demanding industrial installations. It can be applied to piping, process skids, cooling circuits and temperature-controlled machinery. Local display indication helps operators during commissioning and maintenance. The final selection should consider media compatibility, process temperature and pressure.
30 mm installation length
Pt 1000 Class A
Integrated display
4–20 mA output
IO-Link 1.1
M12 connection
°C / °F display
Compact probe
Stainless-steel construction
Fast response
High protection rating
Digital diagnostics
Local indication
PLC integration
Industrial design
Process machinery
Food equipment
Beverage systems
Cooling circuits
Heating systems
Pumps
Process skids
Packaging equipment
Filling machinery
Temperature control
Liquid monitoring
Gas monitoring
PLC automation
Machine automation
Industrial process monitoring
| Specification | Details |
|---|---|
| Product Model | TD2907 |
| Type Code | TD-030CFEC02-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Installation Length | 30 mm |
| Probe Diameter | Approx. 6 mm |
| Process Connection | Hygienic clamp |
| Display | 4-digit LED |
| Display Type | 7-segment |
| Display Unit | °C / °F |
| Analogue Output | 4–20 mA |
| IO-Link Version | 1.1 |
| IO-Link Mode | COM2 |
| Baud Rate | 38.4 kBaud |
| Operating Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Connector | M12 A-coded |
| Protection Class | III |
| Ingress Protection | IP67 / IP68 / IP69K |
| Wetted Material | Stainless steel 316L |
| Surface Finish | Model-dependent |
| Response | Fast dynamic response |
| Application Media | Liquids and gases |
| Product Category | Temperature transmitter |
| Local Indication | Integrated LED display |
