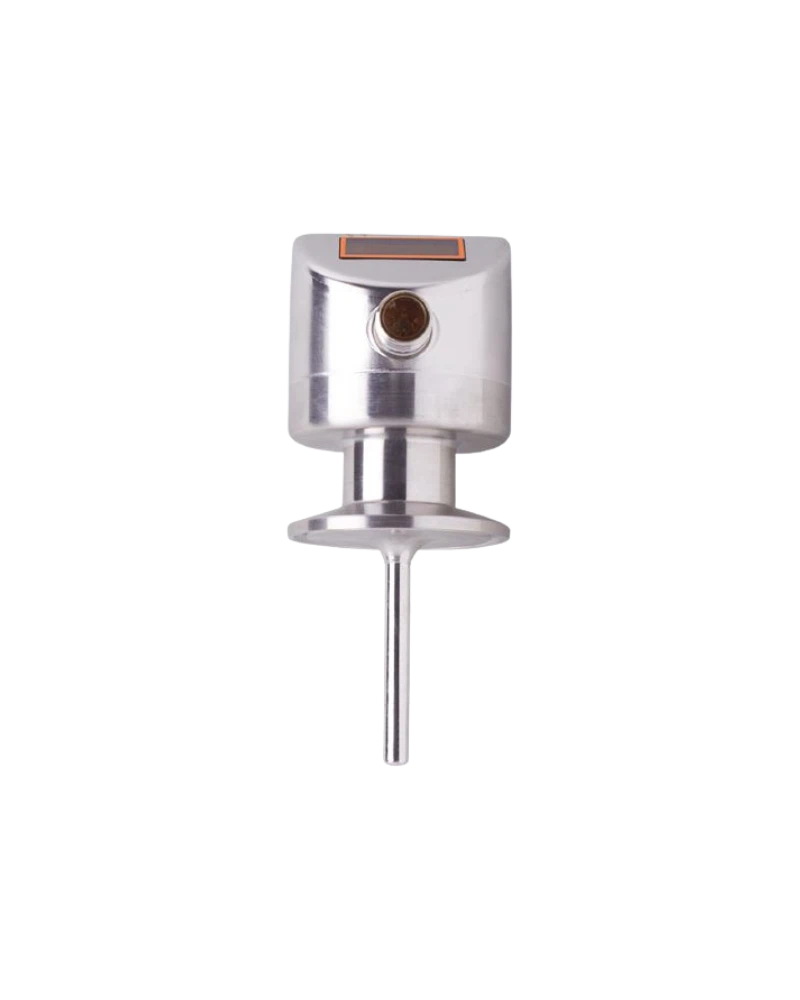

The TD2863 is an IFM temperature transmitter with an integrated four-digit LED display for reliable hygienic process-temperature measurement. Its Pt 1000 Class A sensing element provides stable and repeatable temperature measurement. The 250 mm installation length allows the sensor to reach deeper measurement points inside process vessels. Its sanitary clamp connection supports compatible hygienic piping installations. A 4–20 mA analogue output provides conventional automation integration while IO-Link adds digital communication and diagnostics. Stainless-steel construction and high protection make it suitable for demanding food, beverage and process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2863 features an extended 250 mm sensing length combined with a hygienic clamp process connection. Stainless-steel wetted construction provides durability and supports hygienic process requirements. The extended probe allows temperature measurement deeper inside tanks and vessels. The integrated four-digit display gives operators direct local process visibility. The M12 connector provides a compact industrial electrical interface. Its construction is designed for reliable continuous operation in automated process equipment.
The Pt 1000 Class A sensing element provides stable temperature measurement across the specified process range. The nominal range extends from -50...150 °C / -58...302 °F. The FF variant is factory configured for 0...300 °F operation. The 4–20 mA analogue output provides a standard signal for PLCs and controllers. IO-Link provides digital parameterisation, diagnostics and process information. Fast response characteristics support applications where process temperatures change dynamically. This makes the transmitter suitable for monitoring and automated temperature-control applications.
The integrated four-digit LED display provides clear local temperature indication. Celsius and Fahrenheit presentation allow flexible operation across different plant standards. The M12 connection provides reliable industrial electrical connectivity. IO-Link COM2 communication supports digital device configuration and diagnostics. The 4–20 mA output allows straightforward integration with conventional automation systems. The combination of local display, analogue output and IO-Link provides a flexible temperature-monitoring solution.
The TD2863 is suitable for hygienic temperature measurement in food, beverage, dairy and process industries. The sanitary clamp connection supports compatible hygienic piping systems. Stainless-steel wetted components and electropolished surfaces support cleanable process installations. High ingress protection helps protect the device during demanding washdown environments. The 250 mm installation length is useful for large vessels and deeper process measurement points. Application-specific pressure, temperature and connection requirements should be verified before installation.
250 mm installation length
Sanitary clamp connection
Pt 1000 Class A
4-digit LED display
0...300 °F factory configuration
°C / °F display
4–20 mA output
IO-Link 1.1
COM2
38.4 kBaud
M12 A-coded connector
316L / 1.4404 construction
Electropolished wetted surface
IP67 / IP68 / IP69K
Fast response
Large process vessels
Food processing plants
Beverage production
Dairy systems
Brewing equipment
Hygienic pipelines
CIP systems
Filling equipment
Storage tanks
Liquid temperature monitoring
Gas temperature monitoring
Thermal processing
PLC control
Process automation
Industrial temperature monitoring
| Specification | Details |
|---|---|
| Product Model | TD2863 |
| Type Code | TD-250FFEC01-A-ZVG/US |
| Product Type | Temperature transmitter with display |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C / -58...302 °F |
| Factory Setting | 0...300 °F |
| Installation Length | 250 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp DN25...DN40 |
| Connection Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit 7-segment LED |
| Display Unit | °C / °F |
| Resolution | 0.28 K |
| Analogue Output | 4–20 mA |
| Output Resolution | 0.04 K |
| Maximum Load | 300 Ω |
| IO-Link | 1.1 |
| Communication Mode | COM2 |
| Baud Rate | 38.4 kBaud |
| Minimum Cycle Time | 2.3 ms |
| Operating Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Electrical Connection | M12 A-coded |
| Protection Class | III |
| Ingress Protection | IP67 / IP68 / IP69K |
| Wetted Material | Stainless steel 316L / 1.4404 |
| Surface Finish | Ra <0.8 µm |
