The TD2847 is an IFM temperature transmitter designed for accurate process-temperature measurement with an integrated local display. It uses a Pt 1000 Class A sensor element for reliable temperature monitoring. The 150 mm installation length provides suitable immersion for hygienic process vessels and pipelines. Its sanitary clamp connection supports compatible food and beverage process installations. The transmitter provides 4–20 mA analogue output together with IO-Link communication. Stainless-steel construction, high ingress protection and hygienic design support demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

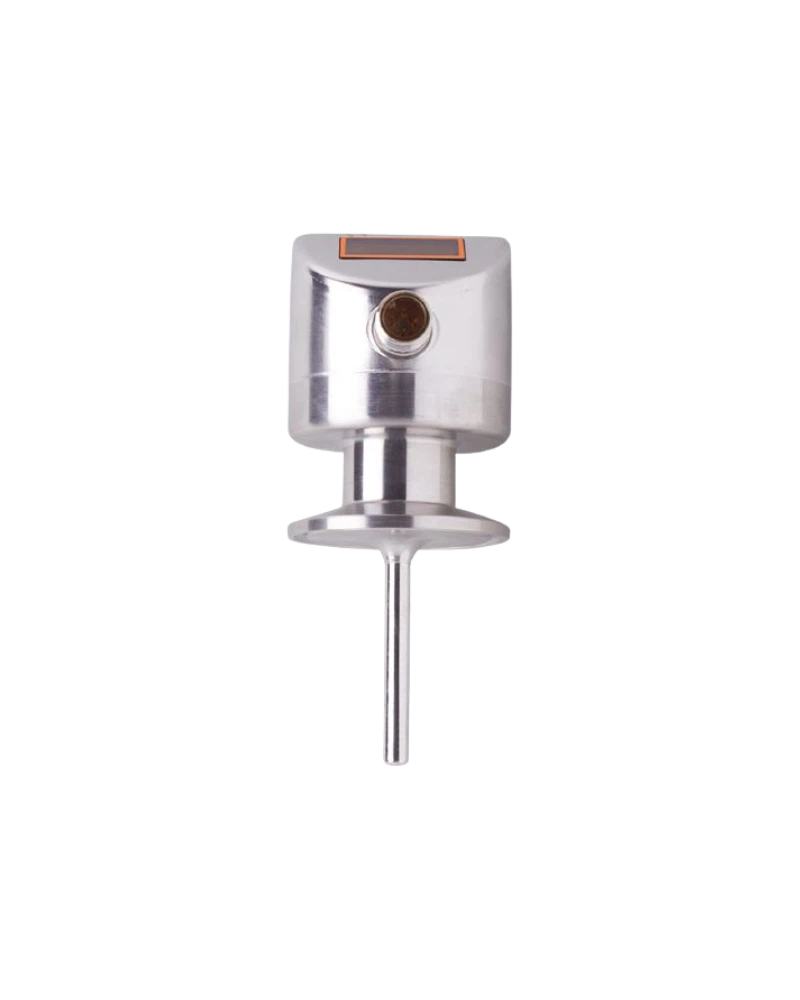

The TD2847 combines a 150 mm sensing probe with integrated transmitter electronics and a four-digit display. Stainless-steel process-contact materials provide durability and suitable hygienic characteristics. The clamp connection enables installation in compatible sanitary piping systems. The extended installation length provides useful sensing depth for vessels and process lines. The display provides direct temperature visibility for operators and maintenance personnel. The M12 connector supports convenient industrial electrical integration.
The Pt 1000 Class A sensing element provides stable and repeatable process-temperature measurement. The transmitter supports a nominal measuring range of -50...150 °C. Its 4–20 mA analogue output provides a standard signal for PLC and controller integration. IO-Link communication adds digital parameterisation and diagnostic information. Fast response characteristics allow efficient detection of process-temperature changes. The device is suitable for continuous temperature monitoring and automated control.
The four-digit seven-segment LED display provides direct local temperature indication. Operators can configure temperature presentation in Celsius or Fahrenheit. The M12 A-coded connection provides a robust industrial electrical interface. IO-Link COM2 enables configuration and diagnostics through compatible automation equipment. The 4–20 mA output supports conventional analogue inputs. This combination provides local, analogue and digital access to temperature information.
The TD2847 is suitable for hygienic food, beverage, dairy and process applications. The sanitary clamp connection supports compatible hygienic piping systems. Stainless-steel and electropolished wetted surfaces support cleanable process installations. High protection ratings help protect the transmitter against moisture and washdown conditions. The 150 mm installation length makes it suitable for deeper measurement points. The final installation should be selected according to process pressure, temperature, media and connection requirements.
150 mm probe length
Sanitary clamp connection
Pt 1000 Class A sensor
4-digit LED display
°C / °F indication
-50...150 °C measuring range
4–20 mA analogue output
IO-Link 1.1
COM2
38.4 kBaud
M12 connection
316L / 1.4404 stainless steel
Electropolished wetted surface
IP67 / IP68 / IP69K
Fast response
Food processing machinery
Beverage production
Dairy processing
Brewing systems
Hygienic process tanks
Sanitary pipelines
CIP systems
Filling equipment
Packaging machinery
Liquid temperature monitoring
Gas temperature monitoring
Thermal processing
PLC temperature control
Industrial automation
Process monitoring
| Specification | Details |
|---|---|
| Product Model | TD2847 |
| Type Code | TD-150CFEC01-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Factory Setting | 0...100 °C |
| Installation Length | 150 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp DN25...DN40 |
| Connection Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit LED |
| Display Type | 7-segment |
| Display Unit | °C / °F |
| Display Resolution | 0.1 K |
| Analogue Output | 4–20 mA |
| Output Resolution | 0.04 K |
| Maximum Load | 300 Ω |
| Communication | IO-Link 1.1 |
| IO-Link Mode | COM2 |
| Baud Rate | 38.4 kBaud |
| Minimum Cycle Time | 2.3 ms |
| Operating Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Electrical Connection | M12 A-coded |
| Protection | IP67 / IP68 / IP69K |
| Wetted Material | 316L / 1.4404 |
| Surface Finish | Ra <0.8 µm |
