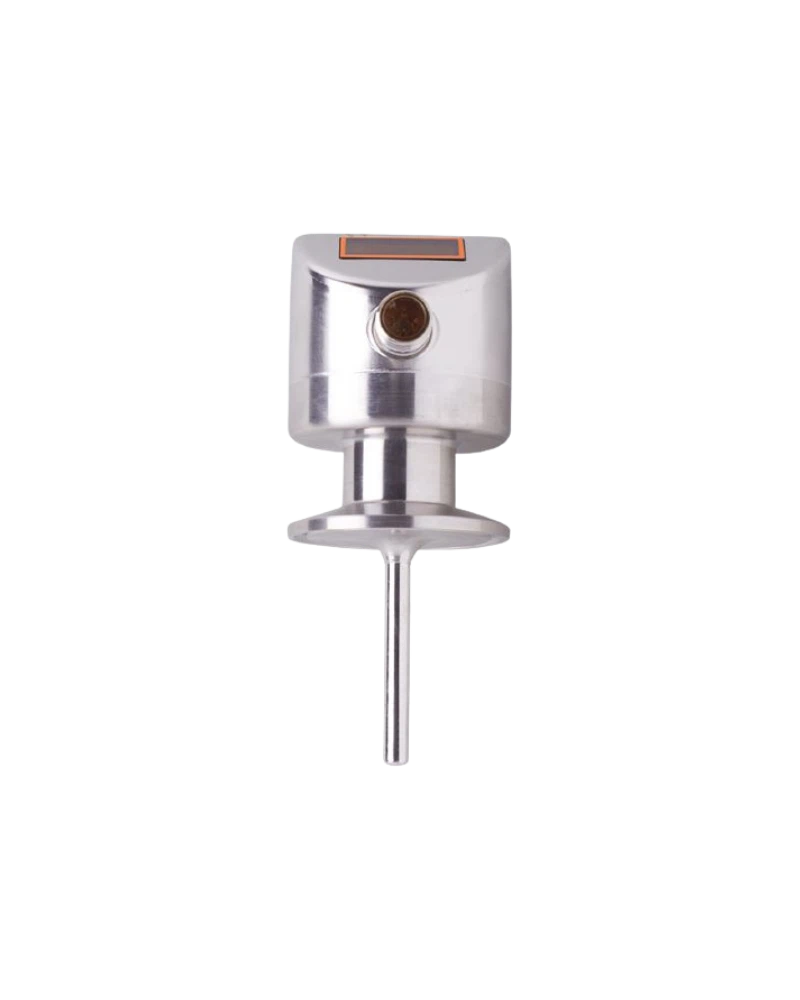

The TD2843 is an IFM temperature transmitter with integrated four-digit LED display for hygienic process-temperature monitoring. Its Pt 1000 Class A sensing element provides stable and reliable temperature measurement. The transmitter provides a standard 4–20 mA output for PLCs and industrial control systems. IO-Link communication provides digital parameterisation and diagnostic functionality. Its sanitary clamp connection and stainless-steel construction support demanding food and beverage applications. The 150 mm installation length provides suitable sensing depth for process vessels and hygienic pipelines.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2843 combines temperature sensing, electronic signal processing and local display in a compact hygienic transmitter. Stainless-steel wetted components provide robust process-contact construction. The 150 mm installation length enables deeper immersion into process media. The clamp process connection is designed for compatible hygienic piping systems. The integrated LED display allows operators to verify temperature directly at the installation point. The M12 electrical connection supports reliable industrial integration.
The Pt 1000 Class A sensor provides repeatable temperature measurement. The nominal measuring capability extends across -50...150 °C / -58...302 °F. This FF version is configured for 0...300 °F factory operation. The 4–20 mA analogue output supports conventional automation systems. IO-Link provides digital parameterisation, process information and diagnostics. Fast response characteristics support applications where process temperature can change rapidly. The transmitter is suitable for continuous monitoring and process-control applications.
The integrated 4-digit LED display provides direct local temperature indication. The display supports °C and °F formats for flexible plant operation. The M12 connector provides a compact and robust industrial interface. IO-Link COM2 enables communication with compatible IO-Link masters. The 4–20 mA output allows integration with standard PLC analogue inputs. The device therefore supports both traditional and digitally connected automation architectures.
The TD2843 is suitable for hygienic food, beverage and dairy process applications. The clamp connection supports compatible sanitary piping arrangements. Stainless-steel wetted materials and electropolished surfaces help support cleanable process equipment. High ingress protection supports demanding industrial and washdown environments. The 150 mm sensing length provides suitable immersion for process tanks and piping. Installation should be matched to the process temperature, pressure, connection and hygiene requirements.
150 mm installation length
Sanitary clamp connection
Pt 1000 Class A
4-digit LED display
0...300 °F factory configuration
°C / °F indication
4–20 mA output
IO-Link 1.1
COM2
38.4 kBaud
M12 A-coded connection
316L / 1.4404 stainless steel
Electropolished wetted surface
IP67 / IP68 / IP69K
Fast response
Food processing
Beverage production
Dairy plants
Breweries
Hygienic process vessels
Sanitary pipelines
CIP equipment
Filling machines
Packaging lines
Liquid monitoring
Gas temperature monitoring
Thermal processing
PLC automation
Process control
Industrial temperature monitoring
| Specification | Details |
|---|---|
| Product Model | TD2843 |
| Type Code | TD-150FFEC01-A-ZVG/US |
| Product Type | Temperature transmitter with display |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Nominal Range | -50...150 °C / -58...302 °F |
| Factory Setting | 0...300 °F |
| Installation Length | 150 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit 7-segment LED |
| Display Units | °C / °F |
| Display Resolution | 0.28 K |
| Analogue Output | 4–20 mA |
| Output Resolution | 0.04 K |
| Maximum Load | 300 Ω |
| IO-Link Version | 1.1 |
| IO-Link Mode | COM2 |
| Baud Rate | 38.4 kBaud |
| Minimum Cycle Time | 2.3 ms |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Connector | M12 A-coded |
| Protection | IP67 / IP68 / IP69K |
| Wetted Material | 316L / 1.4404 |
