The TD2841 is an IFM temperature transmitter with an integrated LED display for reliable process-temperature measurement. It uses a Pt 1000 Class A sensing element for stable and repeatable temperature monitoring. The transmitter provides a 4–20 mA analogue output for conventional PLC and process-control systems. IO-Link communication adds digital configuration, diagnostics and process-data access. Its hygienic clamp connection and stainless-steel construction make it suitable for food, beverage and sanitary process applications. The 150 mm installation length provides greater immersion depth for tanks, vessels and process pipelines.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

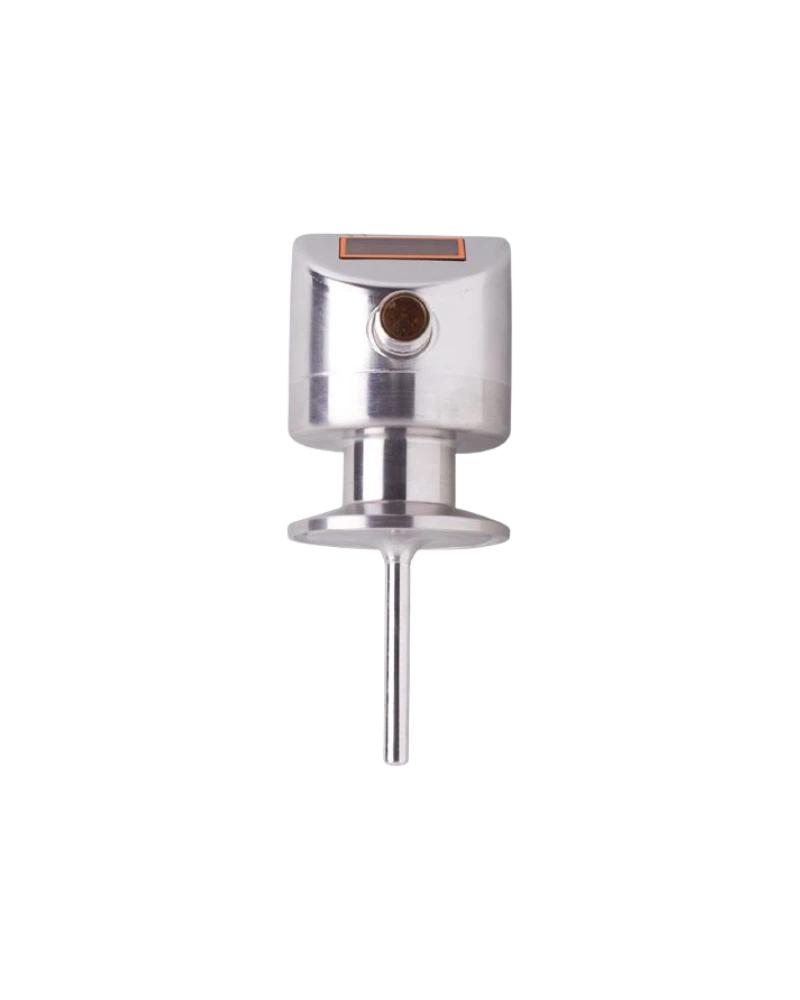

The TD2841 is designed as a compact combination of temperature sensor, transmitter and local display. Its stainless-steel wetted construction provides durability for demanding process environments. The 150 mm installation length allows the sensing element to reach deeper measurement points. Its sanitary clamp connection supports hygienic process installation with compatible piping systems. The integrated LED display provides direct local temperature visibility. The M12 electrical connection allows convenient integration into industrial automation systems.
The TD2841 uses a Pt 1000 Class A sensing element manufactured according to DIN EN 60751. The nominal measuring range extends from -50...150 °C, supporting many industrial temperature-monitoring requirements. The 4–20 mA analogue output allows measured temperature to be transferred to PLCs and controllers. IO-Link provides digital access to parameters, process data and diagnostic information. Fast response characteristics allow the transmitter to react efficiently to temperature changes. The device is suitable for continuous temperature monitoring and automated process control.
The integrated four-digit LED display provides easy-to-read process-temperature information. Celsius and Fahrenheit display formats provide flexibility for different operating environments. The M12 A-coded connector provides a reliable industrial electrical interface. IO-Link COM2 communication allows digital device configuration and diagnostics. The 4–20 mA output ensures compatibility with conventional analogue control systems. This provides a practical combination of local indication and remote automation connectivity.
The TD2841 is suitable for hygienic applications in food, beverage, dairy and pharmaceutical-related process equipment where compatible specifications are met. Its sanitary clamp connection supports hygienic piping installations. Stainless-steel wetted materials and smooth process-contact surfaces support cleanable equipment designs. High ingress protection helps protect the transmitter against moisture and washdown exposure. The 150 mm installation length provides useful immersion for larger process vessels and lines. The complete installation should be selected according to the required process pressure, temperature and connection specifications.
150 mm installation length
Sanitary clamp connection
Pt 1000 Class A sensor
4-digit LED display
°C / °F indication
-50...150 °C measuring capability
4–20 mA analogue output
IO-Link 1.1
COM2 communication
38.4 kBaud
M12 connector
Stainless-steel construction
Electropolished wetted surface
High ingress protection
Fast response characteristics
Food processing
Beverage production
Dairy processing
Brewing systems
Hygienic tanks
Process vessels
Sanitary pipelines
CIP systems
Filling equipment
Packaging machinery
Liquid temperature monitoring
Gas temperature monitoring
Thermal processing
PLC control systems
Process automation
| Specification | Details |
|---|---|
| Product Model | TD2841 |
| Type Code | TD-150CFEC01-A-ZVG/US |
| Product Type | Temperature transmitter with display |
| Sensor Element | Pt 1000 |
| Sensor Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Factory Setting | -10...150 °C |
| Installation Length | 150 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp DN25...DN40 |
| Connection Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit LED |
| Display Type | 7-segment |
| Display Units | °C / °F |
| Display Resolution | 0.1 K |
| Analogue Output | 4–20 mA |
| Output Resolution | 0.04 K |
| Maximum Load | 300 Ω |
| Communication | IO-Link 1.1 |
| IO-Link Mode | COM2 |
| Baud Rate | 38.4 kBaud |
| Minimum Cycle Time | 2.3 ms |
| Operating Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Electrical Connection | M12 A-coded |
| Protection | IP67 / IP68 / IP69K |
| Wetted Material | 316L / 1.4404 stainless steel |
