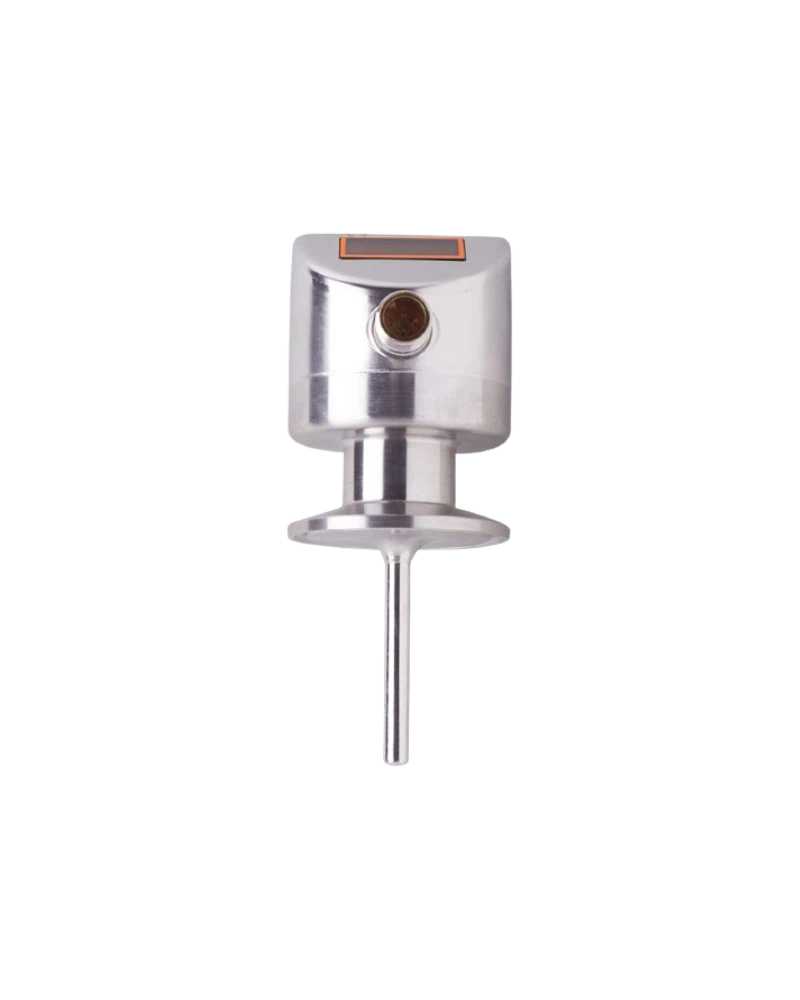

The TD2833 is an IFM temperature transmitter with integrated four-digit display for hygienic process-temperature measurement. It uses a Pt 1000 Class A sensing element for reliable temperature monitoring. The 100 mm installation length provides suitable sensing depth for process vessels and sanitary piping. Its clamp connection supports compatible food and beverage process installations. A 4–20 mA analogue output provides standard automation connectivity while IO-Link adds digital configuration and diagnostics. Stainless-steel construction, electropolished wetted surfaces and high ingress protection make it suitable for demanding hygienic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2833 combines a 100 mm sensing probe with a sanitary clamp process connection. Stainless-steel 316L / 1.4404 wetted materials provide durable hygienic construction. Electropolished surfaces support cleanability and sanitary process requirements. The integrated LED display provides convenient local temperature indication. The M12 connector provides a compact industrial electrical interface. The design is suitable for continuous operation in food and beverage processing systems.
The Pt 1000 Class A sensor provides dependable temperature measurement. The nominal range extends from -50...150 °C / -58...302 °F. The FF version is configured for 0...300 °F operation. The 4–20 mA output provides standard analogue process transmission. IO-Link adds digital parameterisation and diagnostics. Fast response characteristics make it suitable for monitoring dynamic process temperatures.
The four-digit LED display provides clear local process-temperature indication. Celsius and Fahrenheit formats provide flexible operation. The M12 connector supports reliable industrial wiring. IO-Link COM2 enables digital configuration and device diagnostics. The 4–20 mA output supports conventional PLC inputs. This combination provides local, analogue and digital temperature information.
The TD2833 is designed for hygienic food and beverage applications. Its clamp process connection supports compatible sanitary piping systems. Stainless-steel and electropolished wetted surfaces support hygienic process requirements. High protection ratings help protect the transmitter during washdown conditions. The 100 mm installation length provides useful immersion depth. It is suitable for process tanks, pipelines, filling equipment and other hygienic machinery.
100 mm installation length
Sanitary clamp
DN25...DN40 / 1...1.5-inch family
Pt 1000 Class A
4-digit LED display
0...300 °F factory setting
4–20 mA
IO-Link 1.1
COM2
38.4 kBaud
316L / 1.4404 stainless steel
Electropolished surface
Ra <0.8 µm
IP67 / IP68 / IP69K
M12 connector
Food processing
Beverage production
Dairy processing
Brewing
Sanitary piping
Process vessels
Filling machinery
Packaging lines
CIP systems
Liquid monitoring
Gas temperature monitoring
Thermal processing
PLC control
Process automation
Hygienic production equipment
| Specification | Details |
|---|---|
| Model | TD2833 |
| Type code | TD-100FFEC01-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C / -58...302 °F |
| Factory setting | 0...300 °F |
| Installation length | 100 mm |
| Process connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit LED |
| Display units | °C / °F |
| Display resolution | 0.28 K |
| Analogue output | 4–20 mA |
| Output resolution | 0.04 K |
| Maximum load | 300 Ω |
| IO-Link revision | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply voltage | 18...32 V DC |
| Current | <50 mA |
| Probe diameter | 6 mm |
| Wetted material | 316L / 1.4404 |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
