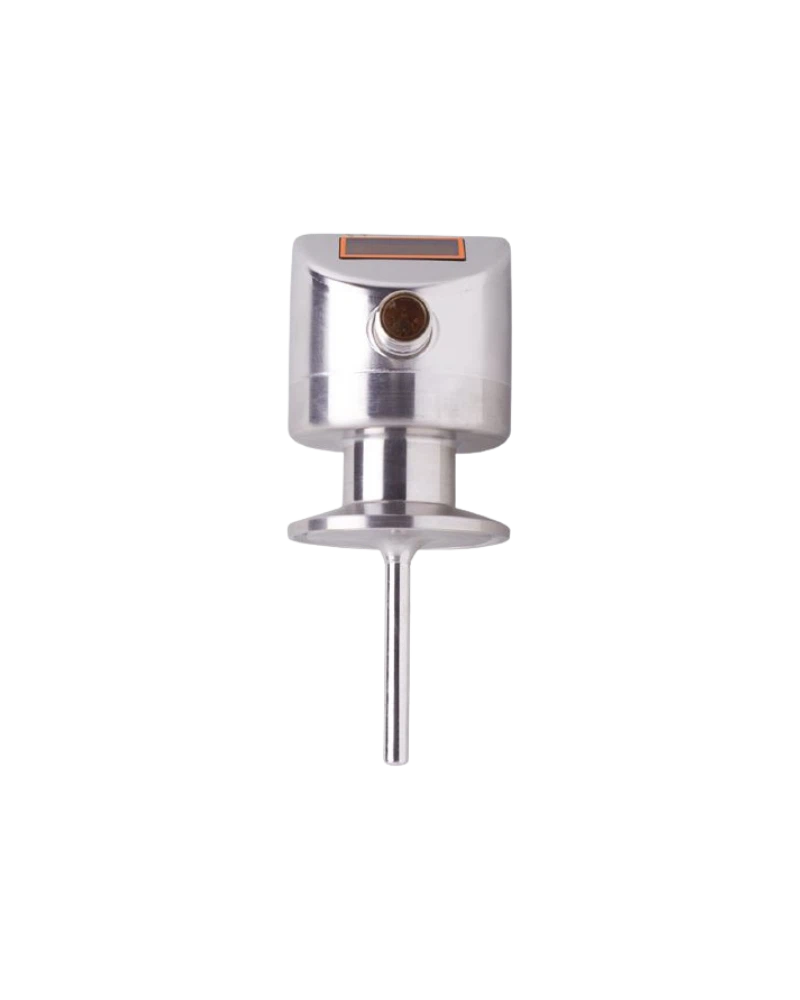

The TD2831 is an IFM hygienic temperature transmitter with integrated LED display and a 100 mm installation length. It uses a Pt 1000 Class A sensor for stable and accurate process-temperature measurement. Its sanitary clamp connection is suitable for compatible food and beverage piping systems. The transmitter provides a 4–20 mA analogue output for conventional automation and IO-Link communication for digital configuration. Stainless-steel 316L construction and electropolished wetted surfaces support hygienic process requirements. The 100 mm installation length provides increased sensing depth for vessels and process lines.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2831 uses a 100 mm probe with a hygienic clamp process connection. Stainless-steel 1.4404 / 316L wetted materials provide robust construction. The electropolished process-contact surface supports cleanability. The integrated LED display allows local temperature monitoring. The M12 connector provides reliable industrial electrical connectivity. Its design is suitable for continuous food and beverage process operation.
The Pt 1000 Class A element provides reliable process-temperature measurement. The nominal measuring range extends from -50...150 °C. The 4–20 mA output provides standard analogue integration. IO-Link provides digital parameterisation and diagnostics. Fast response supports dynamic temperature monitoring. The transmitter is suitable for process control and temperature supervision.
The four-digit LED display provides clear local temperature indication. °C and °F display formats support different operating requirements. The M12 connector provides industrial connectivity. IO-Link COM2 enables digital configuration. The analogue 4–20 mA signal supports conventional PLC inputs. This allows the TD2831 to integrate into both analogue and digital control systems.
The TD2831 is suitable for hygienic food, beverage and dairy process applications. Its sanitary clamp connection supports compatible hygienic piping systems. Stainless-steel and electropolished wetted surfaces support clean process requirements. High ingress protection supports demanding washdown conditions. The 100 mm installation length provides increased immersion depth. It is suitable for liquid and gas temperature monitoring within the specified process conditions.
100 mm installation length
Sanitary clamp connection
Pt 1000 Class A
4-digit LED display
°C / °F
4–20 mA output
IO-Link 1.1
COM2
38.4 kBaud
M12 connector
316L / 1.4404 stainless steel
Electropolished surface
Ra <0.8 µm
IP67 / IP68 / IP69K
Fast response
Food processing
Dairy plants
Beverage production
Breweries
Process tanks
Hygienic pipelines
Sanitary skids
CIP systems
Liquid temperature monitoring
Gas monitoring
Filling equipment
Packaging lines
PLC control
Process automation
Industrial temperature monitoring
| Specification | Details |
|---|---|
| Model | TD2831 |
| Type code | TD-100CFEC01-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 100 mm |
| Process connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit LED |
| Units | °C / °F |
| Resolution | 0.1 K |
| Analogue output | 4–20 mA |
| Output resolution | 0.04 K |
| Maximum load | 300 Ω |
| IO-Link | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply | 18...32 V DC |
| Current | <50 mA |
| Probe diameter | 6 mm |
| Wetted material | 316L / 1.4404 |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
