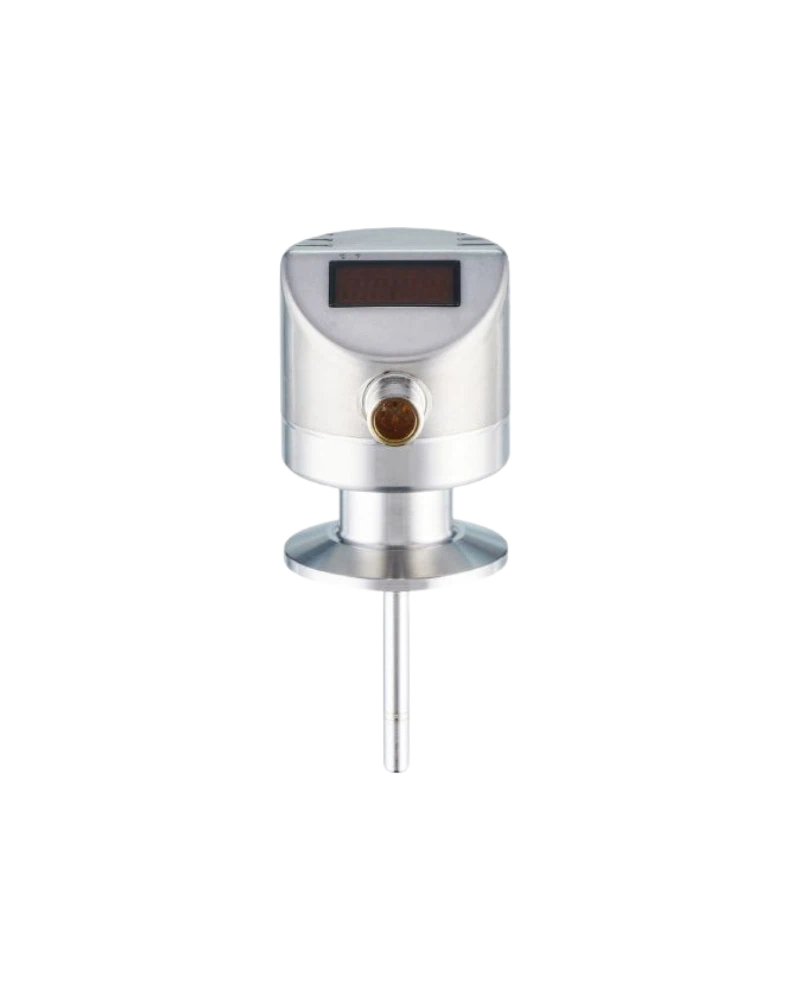

The TD2817 is a 50 mm hygienic temperature transmitter for accurate process temperature monitoring. It incorporates a Pt1000 Class A element, integrated four-digit LED display, 4–20 mA analogue output, and IO-Link communication. The transmitter supports a -50...150 °C measuring range and a 0...100 °C factory setting. Its clamp connection is designed for sanitary process installations. The stainless-steel construction, high protection rating, and fast response make it suitable for demanding food and beverage applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TD2817 combines local display indication with digital automation connectivity. Its 50 mm installation length supports common sanitary process points. The Pt1000 sensor provides stable measurement. IO-Link simplifies configuration and diagnostics. The device is suitable for continuous process temperature control.
The measuring element is a Class A Pt1000 sensor. The measuring range extends from -50...150 °C. The factory setting is 0...100 °C. A 4–20 mA output supports standard industrial automation. IO-Link provides digital process-value access and parameterisation.
The clamp connection supports hygienic installation. Stainless-steel wetted surfaces are electropolished. The device is suitable for liquids and gases. Its 50 mm installation length provides practical sensing depth. IP67/IP68/IP69K protection supports demanding process cleaning.
IO-Link allows convenient configuration during commissioning. Local display indication assists technicians during troubleshooting. Electrical protection improves operational stability. The hygienic design supports repeatable cleaning procedures. Regular inspection of clamps and seals helps maintain process integrity.
50 mm installation length
Pt1000 Class A
4-digit LED display
4–20 mA output
IO-Link
0...100 °C factory setting
Clamp DN25...DN40
316L stainless steel
High protection rating
Fast response
Dairy processing
Food manufacturing
Breweries
Beverage production
Hygienic tanks
Pipelines
Process automation
Temperature control
CIP applications
PLC systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TD2817 |
| 2 | Product Family | TD Hygienic Temperature Transmitter |
| 3 | Measuring Element | 1 × Pt1000 |
| 4 | Sensor Standard | DIN EN 60751 Class A |
| 5 | Measuring Range | -50...150 °C |
| 6 | Factory Setting | 0...100 °C |
| 7 | Installation Length | 50 mm |
| 8 | Probe Diameter | 6 mm |
| 9 | Process Connection | Clamp |
| 10 | Clamp Standard | DIN 32676 / ISO 2852 |
| 11 | Connection Size | DN25...DN40 / 1...1.5 in |
| 12 | Analogue Output | 4–20 mA |
| 13 | Maximum Load | 300 Ω |
| 14 | Communication | IO-Link |
| 15 | IO-Link Revision | 1.1 |
| 16 | Operating Voltage | 18–32 V DC |
| 17 | Current Consumption | <50 mA |
| 18 | Display | 4-digit LED |
| 19 | Display Units | °C / °F |
| 20 | Analogue Resolution | 0.04 K |
| 21 | Display Resolution | 0.1 K |
| 22 | Dynamic Response | T05/T09 1/3 s |
| 23 | Ambient Temperature | -25...80 °C |
| 24 | Storage Temperature | -40...100 °C |
| 25 | Protection | IP67 / IP68 / IP69K |
