The TD2817 is an IFM temperature transmitter designed for hygienic temperature measurement with local display. It uses a Pt 1000 Class A sensing element for stable process-temperature monitoring. The 50 mm installation length provides suitable immersion for many sanitary process applications. Its clamp process connection supports compatible hygienic piping systems. The transmitter provides a 4–20 mA analogue output and IO-Link communication. Stainless-steel construction and high protection support demanding food and beverage environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

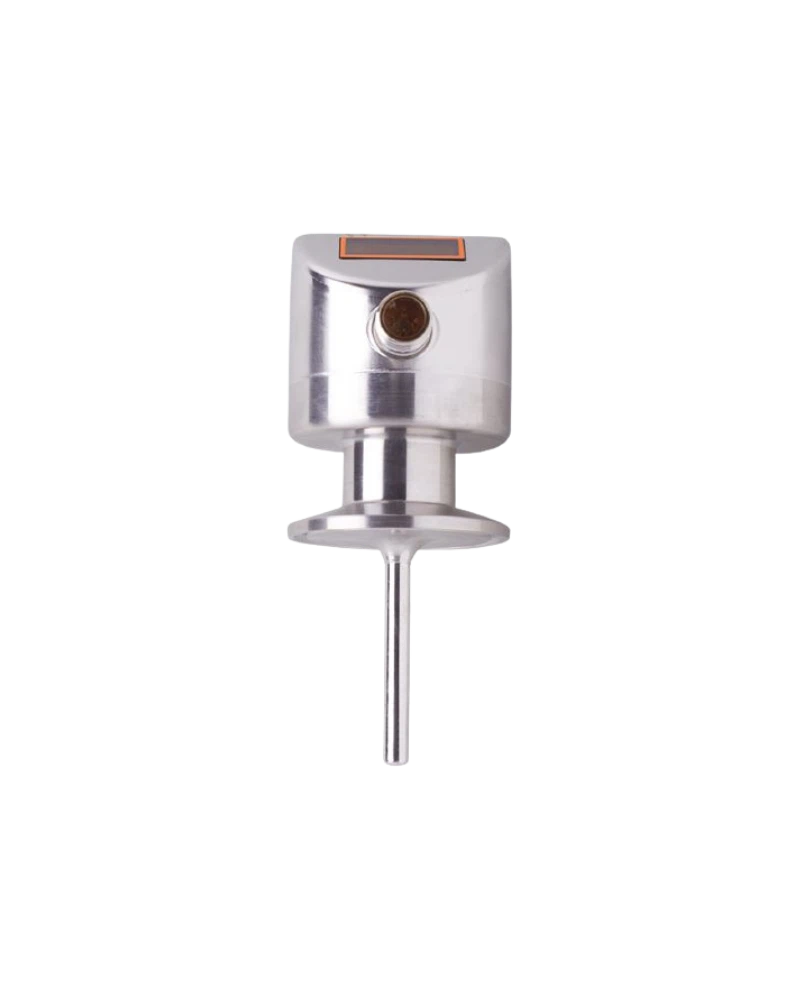

The TD2817 features a compact sanitary clamp connection and 50 mm sensing length. Stainless-steel 316L / 1.4404 wetted components support durable hygienic construction. The electropolished surface provides a smooth process-contact finish. The integrated four-digit LED display allows local temperature verification. The M12 connector supports reliable electrical installation. Its design is suitable for automated sanitary process systems.
The Pt 1000 Class A sensor provides dependable process-temperature measurement. The nominal range extends from -50...150 °C. The 4–20 mA output provides a standard industrial signal. IO-Link adds digital parameterisation and diagnostics. Fast response helps detect process-temperature changes. The transmitter is suitable for continuous process control and monitoring.
The integrated LED display provides clear local temperature information. Celsius and Fahrenheit formats support flexible plant configuration. The M12 connector provides industrial connectivity. IO-Link COM2 supports digital device configuration. The analogue output connects to conventional PLC systems. Local and remote monitoring can therefore be achieved with one device.
The TD2817 is suitable for hygienic food, beverage and dairy process systems. The sanitary clamp connection supports compatible piping installations. Stainless-steel and electropolished wetted surfaces support hygienic process requirements. High protection ratings help protect the transmitter during washdown. Its 50 mm sensing length suits many sanitary process lines and vessels. It can be used for suitable liquid and gas temperature measurement.
50 mm installation length
Clamp connection
Pt 1000 Class A
4-digit LED
°C / °F
4–20 mA
IO-Link
COM2
38.4 kBaud
M12 connector
316L stainless steel
Electropolished wetted surface
Ra <0.8 µm
IP67 / IP68 / IP69K
Fast response
Food processing
Dairy production
Beverage manufacturing
Breweries
Sanitary piping
Process vessels
Filling machines
CIP systems
Liquid monitoring
Gas monitoring
Thermal processing
PLC automation
Process control
Packaging systems
Hygienic machinery
| Specification | Details |
|---|---|
| Model | TD2817 |
| Type code | TD-050CFEC01-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 50 mm |
| Process connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit LED |
| Units | °C / °F |
| Resolution | 0.1 K |
| Output | 4–20 mA |
| Maximum load | 300 Ω |
| IO-Link | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply | 18...32 V DC |
| Current | <50 mA |
| Probe diameter | 6 mm |
| Wetted material | 316L / 1.4404 |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
| Ambient | -25...80 °C |
