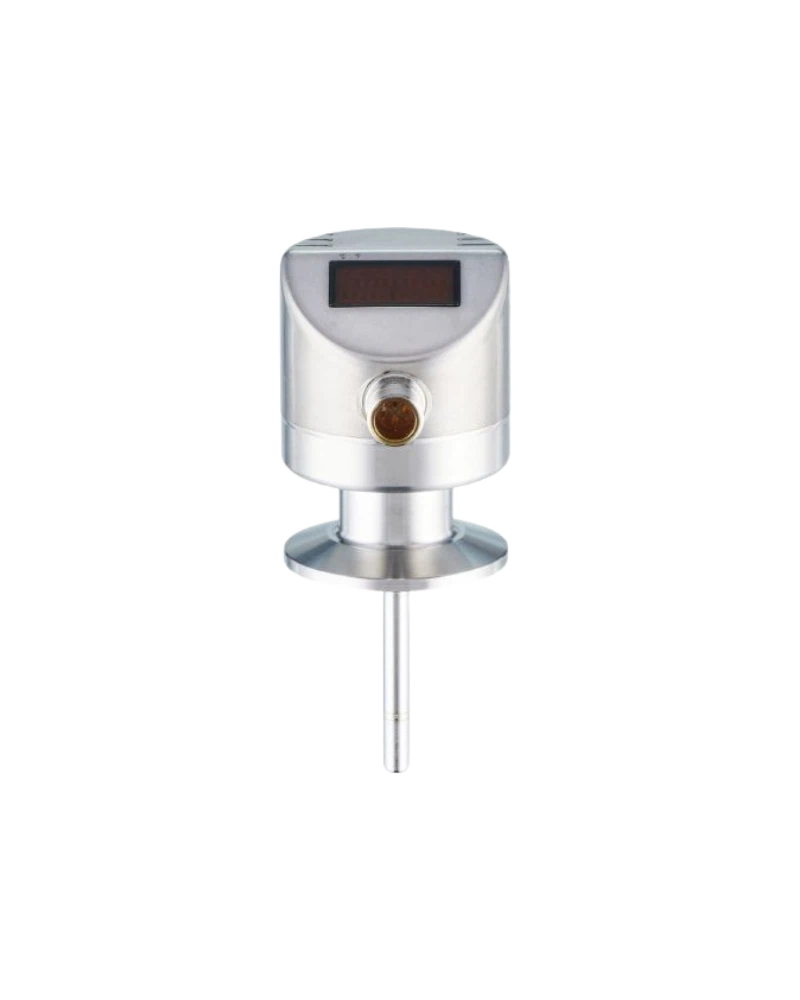

The TD2813 is a 50 mm hygienic temperature transmitter designed for reliable temperature monitoring in food and beverage processes. It uses a Pt1000 Class A sensing element and provides a four-digit LED display for direct local indication. The device combines a 4–20 mA analogue output with IO-Link communication. Its sanitary clamp connection supports hygienic installation and cleaning requirements. The transmitter is suitable for liquid and gas measurement across a -50...150 °C range.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TD2813 provides continuous temperature measurement at process points. The 50 mm probe provides balanced installation depth for sanitary equipment. The integrated display allows operators to see process temperature locally. IO-Link supports digital configuration and diagnostics. Its construction is suitable for automated hygienic production systems.
The Pt1000 Class A element supports accurate process measurement. The measuring range is -50...150 °C. The 4–20 mA output supports PLC and controller integration. IO-Link provides additional digital communication. The transmitter offers fast response for dynamic process monitoring.
The device uses a clamp DN25...DN40 process connection. Wetted parts are stainless steel and electropolished. The design is suitable for liquids and gases. The 50 mm installation length provides practical process penetration. High ingress protection supports cleaning environments.
IO-Link supports configuration and diagnostic functions. The LED display helps with local inspection. Electrical protection improves reliability. The hygienic construction simplifies routine cleaning. Process seals and connections should be inspected during planned maintenance.
50 mm installation length
Pt1000 Class A
-50...150 °C measuring range
4-digit LED display
4–20 mA output
IO-Link 1.1
Clamp DN25...DN40
316L stainless steel
Electropolished wetted surfaces
IP67/IP68/IP69K
Food processing
Dairy processing
Brewing
Beverage plants
Sanitary tanks
Process pipelines
Temperature control
CIP systems
PLC integration
Industrial automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TD2813 |
| 2 | Product Type | Temperature transmitter with display |
| 3 | Measuring Element | Pt1000 |
| 4 | Sensor Class | Class A |
| 5 | Measuring Range | -50...150 °C |
| 6 | Factory Setting | 0...300 °F |
| 7 | Installation Length | 50 mm |
| 8 | Probe Diameter | 6 mm |
| 9 | Process Connection | Clamp |
| 10 | Clamp Standard | DIN 32676 / ISO 2852 |
| 11 | Connection Range | DN25...DN40 / 1...1.5 in |
| 12 | Analogue Output | 4–20 mA |
| 13 | Maximum Load | 300 Ω |
| 14 | Communication | IO-Link |
| 15 | IO-Link Revision | 1.1 |
| 16 | Operating Voltage | 18–32 V DC |
| 17 | Current Consumption | <50 mA |
| 18 | Display | 4-digit LED |
| 19 | Display Units | °C / °F |
| 20 | Analogue Resolution | 0.04 K |
| 21 | Display Resolution | 0.1 K |
| 22 | Response Time | T05/T09 1/3 s |
| 23 | Ambient Temperature | -25...80 °C |
| 24 | Storage Temperature | -40...100 °C |
| 25 | Protection | IP67 / IP68 / IP69K |
