The TD2813 is an IFM hygienic temperature transmitter with a 50 mm installation length and integrated LED display. It uses a Pt 1000 Class A sensing element for reliable temperature measurement. The sanitary clamp process connection is suitable for hygienic food and beverage piping systems. Its 4–20 mA output supports conventional control systems while IO-Link provides digital communication. The stainless-steel construction and electropolished wetted surfaces support clean process requirements. The device is suitable for continuous temperature monitoring in automated hygienic processes.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

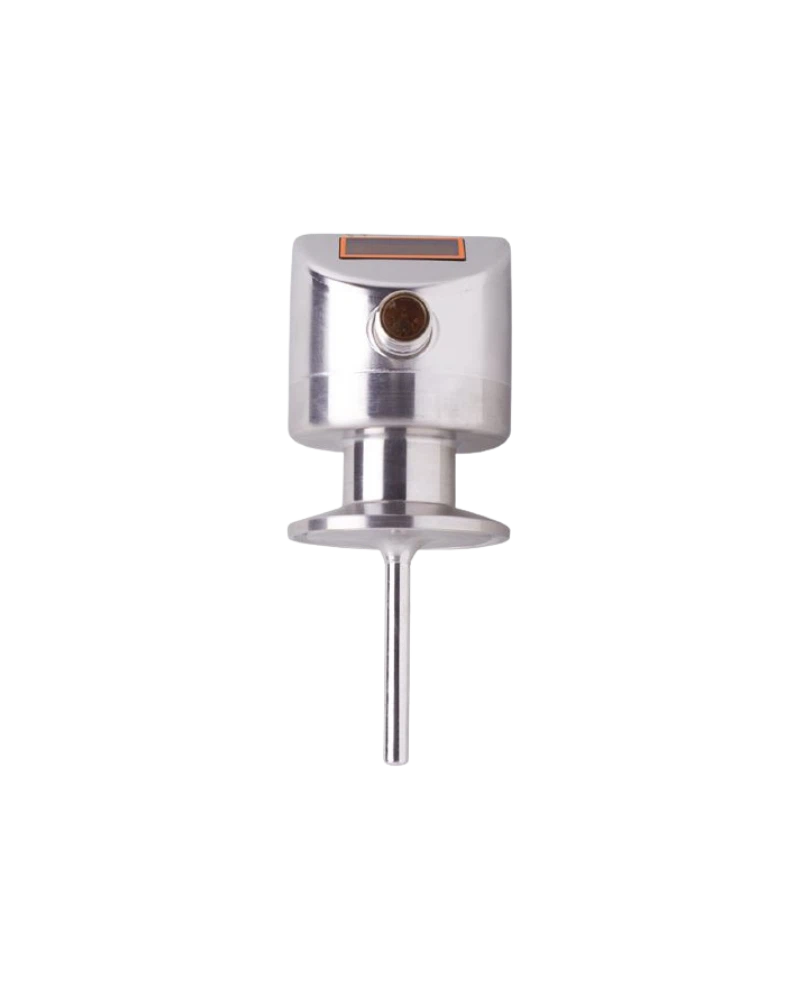

The TD2813 uses a 50 mm probe with a sanitary clamp connection. Stainless-steel process-contact materials provide durable and hygienic construction. The electropolished surface supports cleanability. The integrated display provides local process-temperature visibility. M12 electrical connectivity supports industrial automation. Its compact design is suitable for food and beverage processing machinery.
The Pt 1000 Class A sensor provides stable temperature measurement. The nominal range is -50...150 °C / -58...302 °F. The FF version is factory configured for 0...300 °F. The 4–20 mA output supports standard automation systems. IO-Link provides digital parameterisation and diagnostics. The transmitter provides fast response for changing process conditions. IFM's TD2813 documentation confirms the 50 mm installation length, Pt1000 Class A element and clamp DN25...DN40 connection.
The four-digit LED display provides direct local temperature indication. Celsius and Fahrenheit display formats provide flexible operation. The M12 connector provides reliable electrical connectivity. IO-Link COM2 supports digital configuration. The analogue output integrates with conventional PLCs. This provides a combined local and remote monitoring solution.
The TD2813 is intended for hygienic food and beverage process applications. Its clamp connection supports compatible sanitary piping standards. Electropolished stainless-steel wetted surfaces support cleanability. High IP protection supports demanding washdown environments. The 50 mm sensing length is useful for process lines and vessels. Suitable liquid and gas temperatures can be monitored within the specified limits.
50 mm installation length
Sanitary clamp
DN25...DN40 / 1...1.5-inch family
Pt 1000 Class A
4-digit LED
0...300 °F factory configuration
4–20 mA
IO-Link 1.1
COM2
M12 connection
316L / 1.4404
Electropolished surface
Ra <0.8 µm
IP67 / IP68 / IP69K
Fast response
Food production
Beverage processing
Dairy plants
Breweries
Sanitary pipelines
Filling machines
Process tanks
CIP systems
Liquid temperature monitoring
Gas monitoring
Thermal processing
PLC control
Industrial automation
Packaging equipment
Hygienic skids
| Specification | Details |
|---|---|
| Model | TD2813 |
| Type code | TD-050FFEC01-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C / -58...302 °F |
| Factory setting | 0...300 °F |
| Installation length | 50 mm |
| Process connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit LED |
| Units | °C / °F |
| Display resolution | 0.28 K |
| Analogue output | 4–20 mA |
| Maximum load | 300 Ω |
| IO-Link | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply | 18...32 V DC |
| Current | <50 mA |
| Probe diameter | 6 mm |
| Wetted material | 316L / 1.4404 |
| Surface | Electropolished, Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
