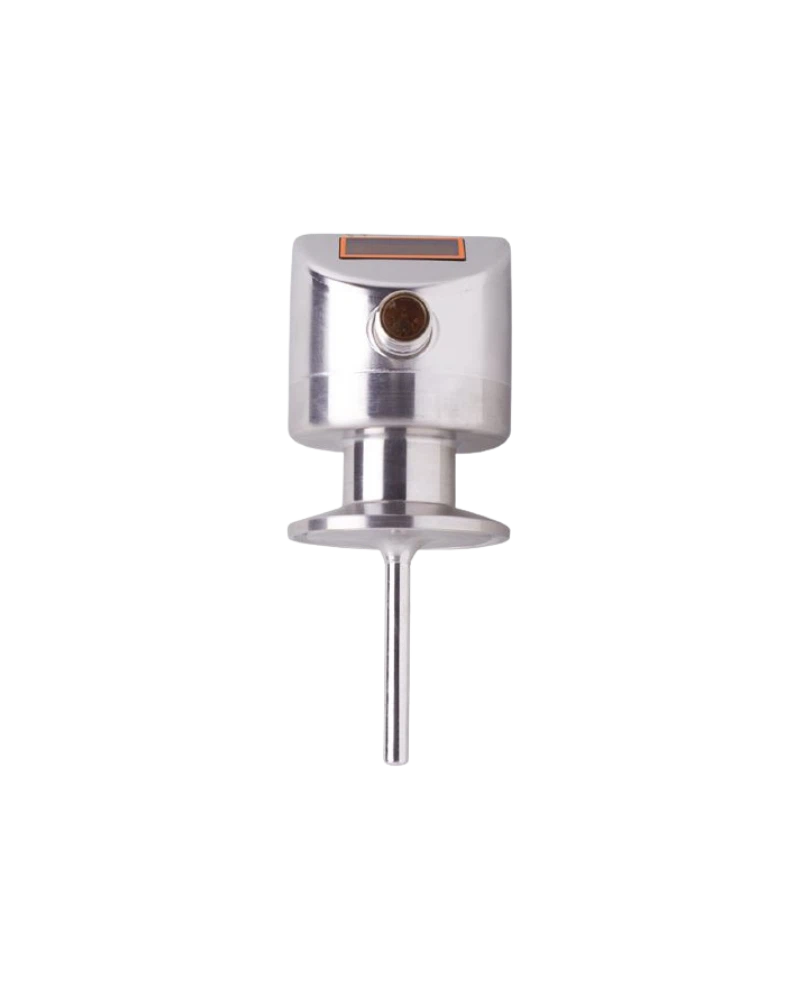

The TD2811 is an IFM hygienic temperature transmitter with display and a 50 mm installation length. It uses a Pt 1000 Class A sensing element for stable temperature measurement. The sanitary clamp connection is designed for compatible hygienic process installations. A 4–20 mA analogue output provides conventional automation integration. IO-Link provides digital configuration and diagnostics. Stainless-steel construction and electropolished wetted surfaces make it suitable for demanding food and beverage applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2811 features a 50 mm sensing length with a sanitary clamp process connection. Stainless-steel 316L / 1.4404 wetted materials provide durable hygienic construction. The electropolished surface supports clean process requirements. The integrated four-digit display provides local temperature indication. The M12 connector provides reliable electrical integration. Its design is suitable for continuous hygienic process operation.
The Pt 1000 Class A sensor provides reliable process-temperature measurement. The nominal range extends from -50...150 °C. The 4–20 mA output supports standard PLC and controller inputs. IO-Link adds digital parameterisation and diagnostics. Fast response supports process-temperature changes. The device is suitable for continuous monitoring and control.
The LED display provides direct local temperature indication. °C and °F formats provide flexible operation. The M12 connector provides industrial electrical connectivity. IO-Link COM2 supports digital configuration. The analogue output provides conventional system integration. This combination provides convenient local and remote temperature monitoring.
The TD2811 is suitable for food, beverage and dairy processing systems. The clamp connection supports sanitary piping arrangements. Stainless-steel and electropolished surfaces support hygienic installation requirements. High protection ratings support demanding washdown conditions. The 50 mm sensing length provides useful immersion for process lines and vessels. It can be used in suitable liquid and gas temperature applications.
50 mm installation length
Clamp connection
Pt 1000 Class A
4-digit LED
°C / °F
4–20 mA
IO-Link 1.1
COM2
38.4 kBaud
316L stainless steel
Electropolished surface
Ra <0.8 µm
IP67 / IP68 / IP69K
M12 connection
Fast response
Food processing
Dairy production
Beverage plants
Breweries
Sanitary pipelines
Process vessels
Filling equipment
CIP systems
Liquid monitoring
Gas monitoring
Thermal processing
PLC control
Process automation
Packaging machinery
Hygienic skids
| Specification | Details |
|---|---|
| Model | TD2811 |
| Type code | TD-050CFEC01-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 50 mm |
| Process connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit LED |
| Display units | °C / °F |
| Resolution | 0.1 K |
| Output | 4–20 mA |
| Output resolution | 0.04 K |
| Maximum load | 300 Ω |
| IO-Link | 1.1 |
| Mode | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply | 18...32 V DC |
| Current | <50 mA |
| Probe | 6 mm |
| Wetted material | 316L / 1.4404 |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
