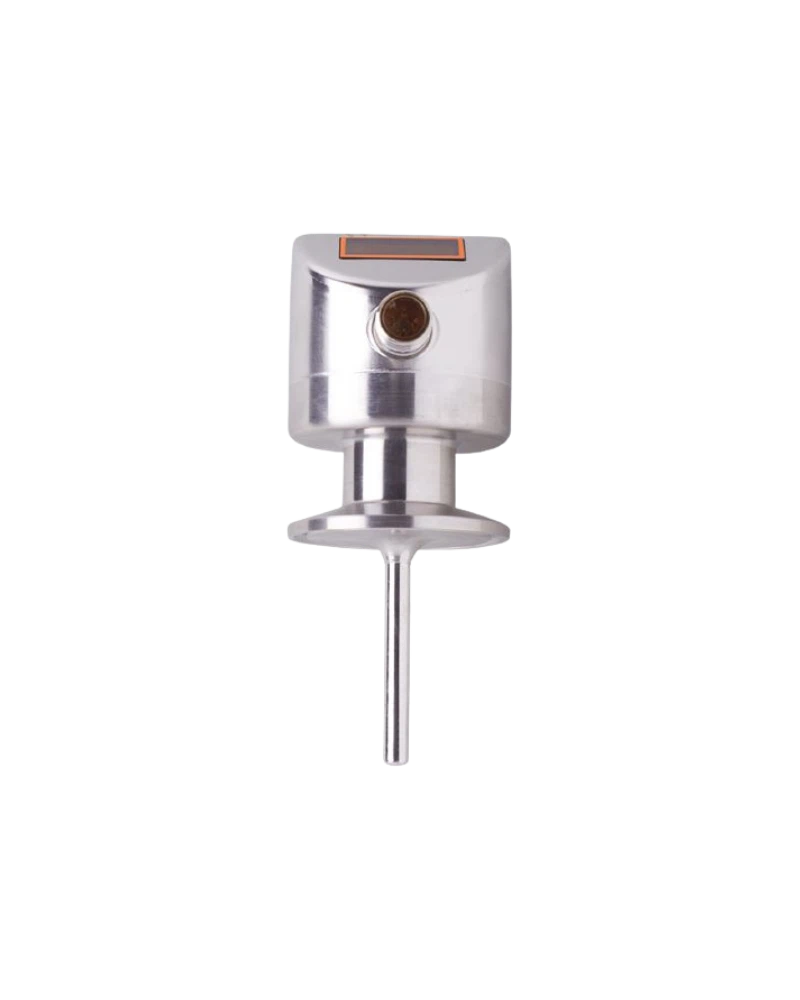

The TD2807 is a 30 mm hygienic temperature transmitter designed for compact process installations. It incorporates a Pt1000 Class A sensing element, four-digit LED display, 4–20 mA analogue output, and IO-Link communication. The sensor provides a -50...150 °C measuring range with a 0...100 °C factory setting. Its clamp connection is suitable for sanitary process equipment used in food and beverage production. The compact stainless-steel design provides reliable measurement and easy integration into automated process systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TD2807 is designed for short-depth hygienic temperature measurement. Its 30 mm installation length suits compact process connections. The display provides immediate local temperature information. IO-Link supports digital configuration and diagnostics. The device can be integrated into modern PLC and process-control systems.
The Pt1000 sensor provides stable temperature measurement. The measuring range is -50...150 °C. The factory setting is 0...100 °C. The analogue output provides 4–20 mA. IO-Link adds digital communication and parameterisation capability.
The transmitter uses a hygienic clamp connection. Wetted surfaces are stainless steel and electropolished. The design supports liquid and gas measurement. The compact probe is useful for shallow process points. IP67/IP68/IP69K protection supports demanding cleaning environments.
IO-Link simplifies device setup and service. The LED display helps technicians confirm operation locally. Short-circuit and overload protection support dependable output operation. The robust housing is designed for industrial conditions. Regular inspection of seals and process connections supports hygienic operation.
30 mm installation length
Pt1000 Class A
-50...150 °C measuring range
0...100 °C factory setting
4–20 mA output
IO-Link 1.1
4-digit LED display
Hygienic clamp
316L stainless steel
IP67/IP68/IP69K
Food processing
Beverage manufacturing
Dairy systems
Brewing equipment
Hygienic piping
Tank temperature measurement
CIP systems
PLC temperature control
Process monitoring
Production automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TD2807 |
| 2 | Product Family | TD Hygienic Temperature Transmitter |
| 3 | Measuring Element | Pt1000 |
| 4 | Sensor Standard | DIN EN 60751 Class A |
| 5 | Measuring Range | -50...150 °C |
| 6 | Factory Setting | 0...100 °C |
| 7 | Installation Length | 30 mm |
| 8 | Probe Diameter | 6 mm |
| 9 | Process Connection | Clamp |
| 10 | Connection Standard | DIN 32676 / ISO 2852 |
| 11 | Connection Size | DN25...DN40 / 1...1.5 in |
| 12 | Output | 4–20 mA |
| 13 | Maximum Load | 300 Ω |
| 14 | Communication | IO-Link |
| 15 | IO-Link Revision | 1.1 |
| 16 | Operating Voltage | 18–32 V DC |
| 17 | Current Consumption | <50 mA |
| 18 | Display | 4-digit 7-segment LED |
| 19 | Display Units | °C / °F |
| 20 | Resolution | 0.04 K analogue |
| 21 | Display Resolution | 0.1 K |
| 22 | Dynamic Response | T05/T09 1/3 s |
| 23 | Ambient Temperature | -25...80 °C |
| 24 | Storage Temperature | -40...100 °C |
| 25 | Protection | IP67 / IP68 / IP69K |
