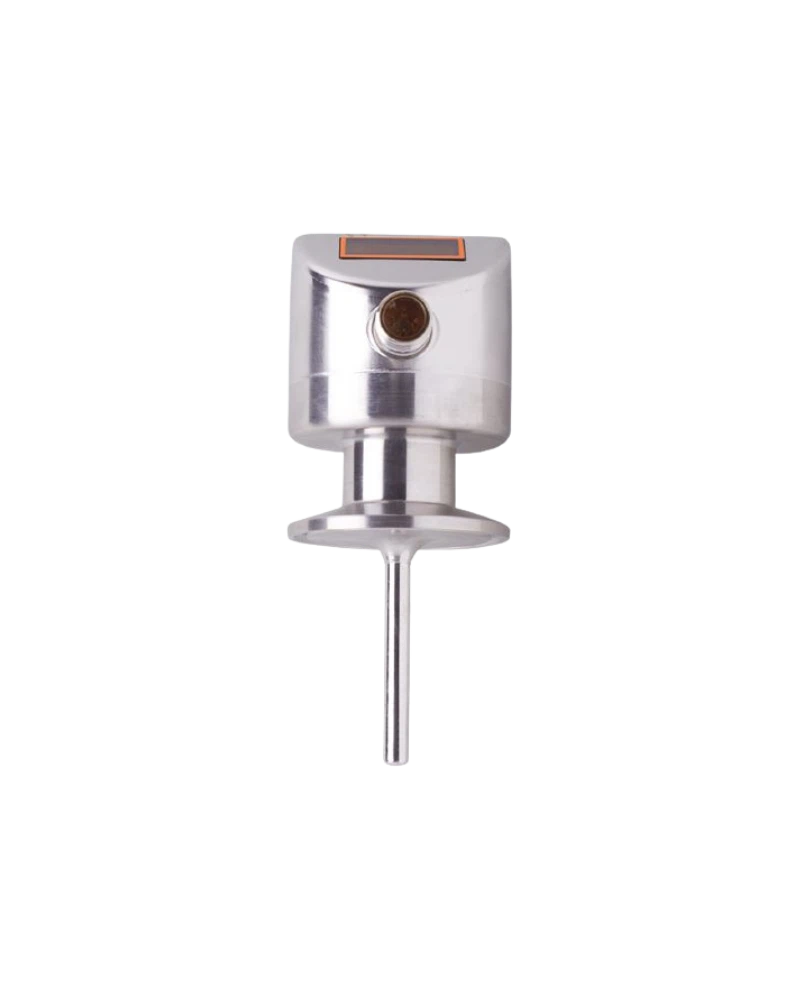

The TD2807 is an IFM hygienic temperature transmitter with an integrated four-digit display. Its Pt 1000 Class A sensor provides dependable temperature measurement for food and beverage processes. The 30 mm installation length provides compact sensing for sanitary process equipment. Its clamp connection supports compatible hygienic piping systems. The transmitter provides 4–20 mA output and IO-Link communication for automation systems. Stainless-steel construction, electropolished surfaces and high protection ratings support demanding process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2807 uses a compact sanitary clamp connection and 30 mm installation length. Stainless-steel 1.4404 / 316L process-contact materials provide durability. Electropolished wetted surfaces support hygienic production requirements. The integrated LED display provides local temperature visibility. The M12 connection supports reliable electrical integration. Its compact design is suitable for sanitary process machinery.
The Pt 1000 Class A sensor provides stable temperature measurement. The nominal range extends from -50...150 °C. The 4–20 mA output provides standard analogue process signalling. IO-Link provides digital configuration and diagnostic information. Fast response supports monitoring of dynamic process temperatures. The transmitter is suitable for continuous process control.
The four-digit LED display provides direct process-temperature indication. Celsius and Fahrenheit formats provide flexible display configuration. The M12 connector provides industrial connectivity. IO-Link COM2 enables parameterisation and diagnostics. The 4–20 mA output connects to conventional automation equipment. The transmitter therefore supports both analogue and digital process integration.
The TD2807 is suitable for hygienic food, beverage and dairy applications. Its clamp connection supports sanitary piping systems. Electropolished stainless-steel wetted surfaces support hygienic process requirements. High ingress protection supports demanding cleaning conditions. It can monitor suitable liquid and gas process temperatures. The transmitter is useful for tanks, piping, filling and process equipment.
30 mm installation length
Clamp process connection
Pt 1000 Class A
4-digit LED
°C / °F
4–20 mA
IO-Link
COM2
38.4 kBaud
316L / 1.4404 stainless steel
Electropolished surface
Ra <0.8 µm
IP67 / IP68 / IP69K
M12 connector
Fast response
Food processing
Beverage production
Dairy systems
Breweries
Sanitary piping
Filling equipment
Process tanks
CIP systems
Liquid monitoring
Gas monitoring
Thermal processing
PLC control
Process automation
Packaging systems
Hygienic production lines
| Specification | Details |
|---|---|
| Model | TD2807 |
| Type code | TD-030CFEC01-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 30 mm |
| Process connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit LED |
| Units | °C / °F |
| Resolution | 0.1 K |
| Output | 4–20 mA |
| Maximum load | 300 Ω |
| IO-Link | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply | 18...32 V DC |
| Current | <50 mA |
| Probe diameter | 6 mm |
| Wetted material | 316L / 1.4404 |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
| Display type | 7-segment LED |
