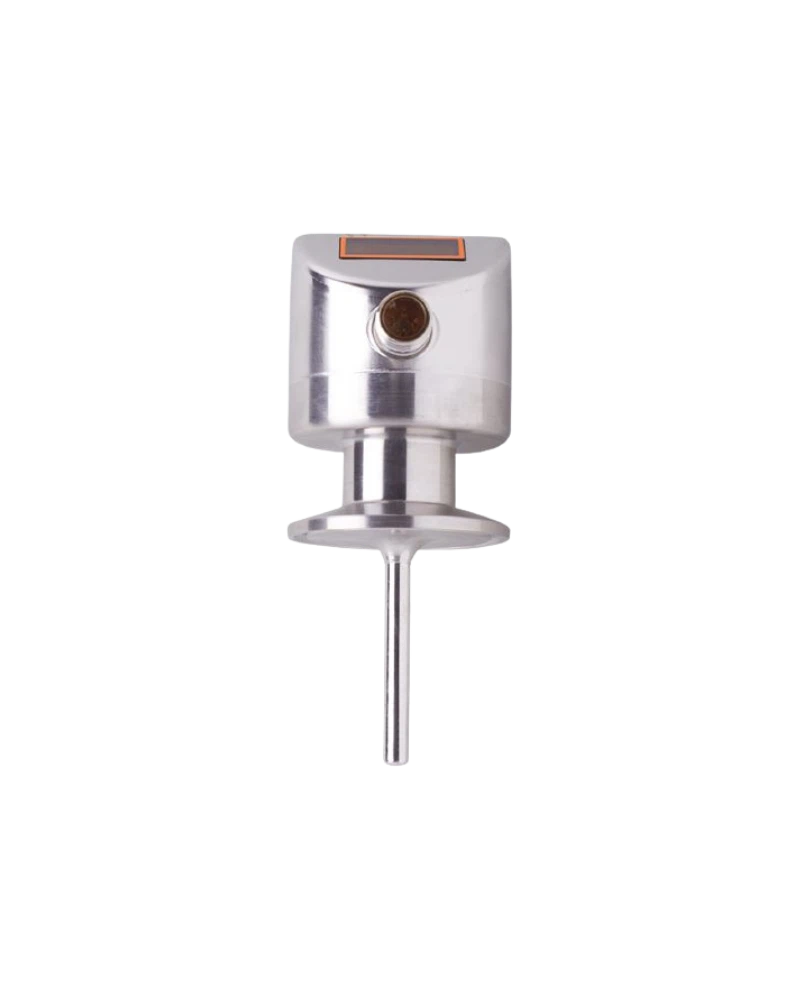

The TD2803 is a compact IFM temperature transmitter with display designed for hygienic process applications. It uses a Pt 1000 Class A sensing element for stable temperature measurement. The 30 mm installation length provides a compact sensing solution. Its sanitary clamp connection is suitable for compatible food and beverage piping systems. The transmitter provides 4–20 mA output and IO-Link communication for automation integration. The integrated display allows convenient local temperature monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2803 uses a hygienic clamp connection and compact 30 mm sensing length. Stainless-steel process-contact materials provide durability and cleanability. The electropolished wetted surface supports hygienic process requirements. The integrated LED display provides local temperature visibility. The M12 connector supports industrial electrical installation. Its compact construction is useful for sanitary production machinery.
The Pt 1000 Class A sensor provides reliable temperature measurement. The nominal range is -50...150 °C / -58...302 °F. This FF variant is configured for 0...300 °F operation. A 4–20 mA output provides conventional automation integration. IO-Link adds digital configuration and diagnostics. The fast response characteristics are suitable for dynamic process monitoring.
The four-digit LED display provides clear local process indication. Celsius and Fahrenheit presentation support flexible operation. The M12 connector provides reliable industrial connectivity. IO-Link COM2 supports digital parameterisation. The 4–20 mA output allows standard PLC connection. Local and digital monitoring are therefore available in a single device.
The TD2803 is suitable for hygienic food and beverage process systems. The sanitary clamp connection supports compatible DIN 32676 / ISO 2852 piping arrangements. Stainless-steel wetted surfaces provide durable and hygienic construction. High IP protection supports demanding washdown conditions. It can be used for liquid and gas temperature measurement. The transmitter is suitable for filling, processing, piping and tank applications.
30 mm installation length
Sanitary clamp connection
Pt 1000 Class A
4-digit LED display
0...300 °F factory setting
4–20 mA
IO-Link 1.1
COM2
38.4 kBaud
Stainless-steel 316L
Electropolished surface
Ra <0.8 µm
IP67 / IP68 / IP69K
M12 connection
Fast response
Food production
Beverage plants
Dairy processing
Breweries
Sanitary pipelines
Filling machines
Process skids
Hygienic tanks
CIP systems
Liquid monitoring
Gas monitoring
Temperature control
PLC automation
Packaging equipment
Production lines
| Specification | Details |
|---|---|
| Model | TD2803 |
| Type code | TD-030FFEC01-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C / -58...302 °F |
| Factory setting | 0...300 °F |
| Installation length | 30 mm |
| Process connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Display | 4-digit LED |
| Display unit | °C / °F |
| Resolution | 0.28 K |
| Output | 4–20 mA |
| Maximum load | 300 Ω |
| IO-Link | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply | 18...32 V DC |
| Current | <50 mA |
| Probe diameter | 6 mm |
| Material | 316L / 1.4404 |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
