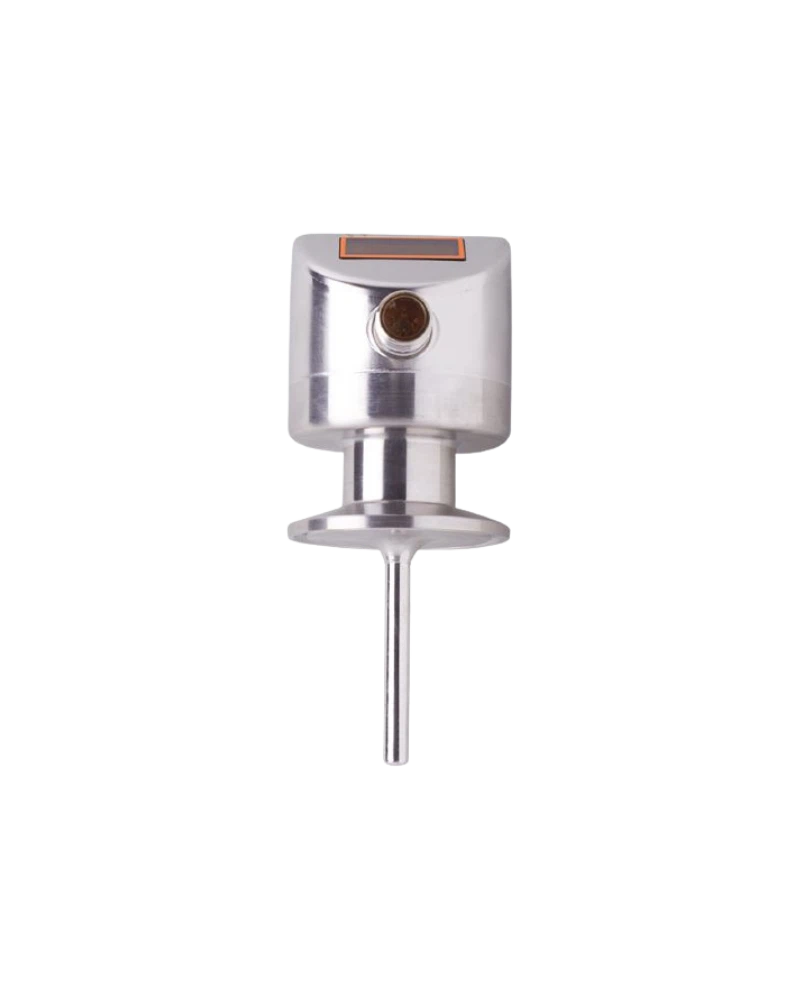

The TD2801 is an IFM temperature transmitter with integrated display designed for hygienic food and beverage process applications. It uses a Pt 1000 Class A sensing element for reliable temperature measurement. The model features a sanitary clamp process connection suitable for compatible hygienic pipe systems. Its 30 mm installation length provides compact temperature sensing for process equipment. The transmitter offers 4–20 mA analogue output and IO-Link communication. High protection, stainless-steel construction and hygienic surface characteristics support demanding process environments. IFM identifies the TD2801 as a temperature transmitter with display for the food industry and lists the clamp DN25...DN40 / 1...1.5-inch DIN 32676 / ISO 2852 connection family.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2801 uses a sanitary clamp-style process connection for hygienic installation. Its 30 mm installation length provides a compact sensing arrangement. Stainless-steel 1.4404 / 316L process-contact material provides durable and hygienic construction. The wetted surface is electropolished and designed for clean process applications. The integrated 4-digit LED display provides local temperature indication. Its M12 connector provides compact industrial electrical connectivity.
The transmitter uses a Pt 1000 Class A measuring element according to DIN EN 60751. It supports a nominal temperature range of -50...150 °C. The 4–20 mA output provides accurate analogue transmission to control systems. IO-Link provides digital configuration and diagnostics. Fast dynamic response supports process-temperature monitoring. Its hygienic design makes it particularly suitable for food and beverage processes.
The four-digit LED display provides direct local process-temperature indication. Celsius and Fahrenheit units can be selected for convenient operation. The M12 A-coded connector provides industrial electrical connectivity. IO-Link COM2 supports digital parameterisation and process information. The 4–20 mA output supports conventional PLC integration. This combination reduces the need for separate display instrumentation.
The TD2801 is designed for hygienic applications in food and beverage processing. The clamp connection is compatible with sanitary piping systems such as DIN 32676 / ISO 2852 installations. Stainless-steel wetted parts and electropolished surfaces support hygienic process requirements. High IP67/IP68/IP69K protection supports demanding cleaning environments. The unit can measure liquids and gases under suitable operating conditions. Its sanitary construction makes it suitable for process skids, filling systems, tanks and hygienic pipelines.
Sanitary clamp connection
DN25...DN40 / 1...1.5-inch connection family
30 mm installation length
Pt 1000 Class A
4-digit LED display
°C / °F
4–20 mA output
IO-Link 1.1
COM2
38.4 kBaud
Stainless steel 1.4404 / 316L
Electropolished wetted surface
Ra <0.8 µm
IP67 / IP68 / IP69K
M12 A-coded connector
Food processing
Beverage production
Dairy processing
Breweries
Hygienic pipelines
Sanitary process skids
Filling machines
Process vessels
CIP systems
Liquid temperature monitoring
Gas temperature monitoring
Tank temperature control
Packaging equipment
PLC automation
Hygienic production lines
| Specification | Details |
|---|---|
| Model | TD2801 |
| Type code | TD-030CFEC01-A-ZVG/US |
| Sensor | Pt 1000 |
| Sensor class | Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 30 mm |
| Process connection | Clamp DN25...DN40 |
| Connection standard | DIN 32676 / ISO 2852 |
| Display | 4-digit 7-segment LED |
| Display units | °C / °F |
| Display resolution | 0.1 K |
| Analogue output | 4–20 mA |
| Output resolution | 0.04 K |
| Maximum load | 300 Ω |
| IO-Link | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Minimum cycle time | 2.3 ms |
| Supply voltage | 18...32 V DC |
| Current | <50 mA |
| Probe diameter | 6 mm |
| Wetted material | 1.4404 / 316L |
| Surface | Electropolished, Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
