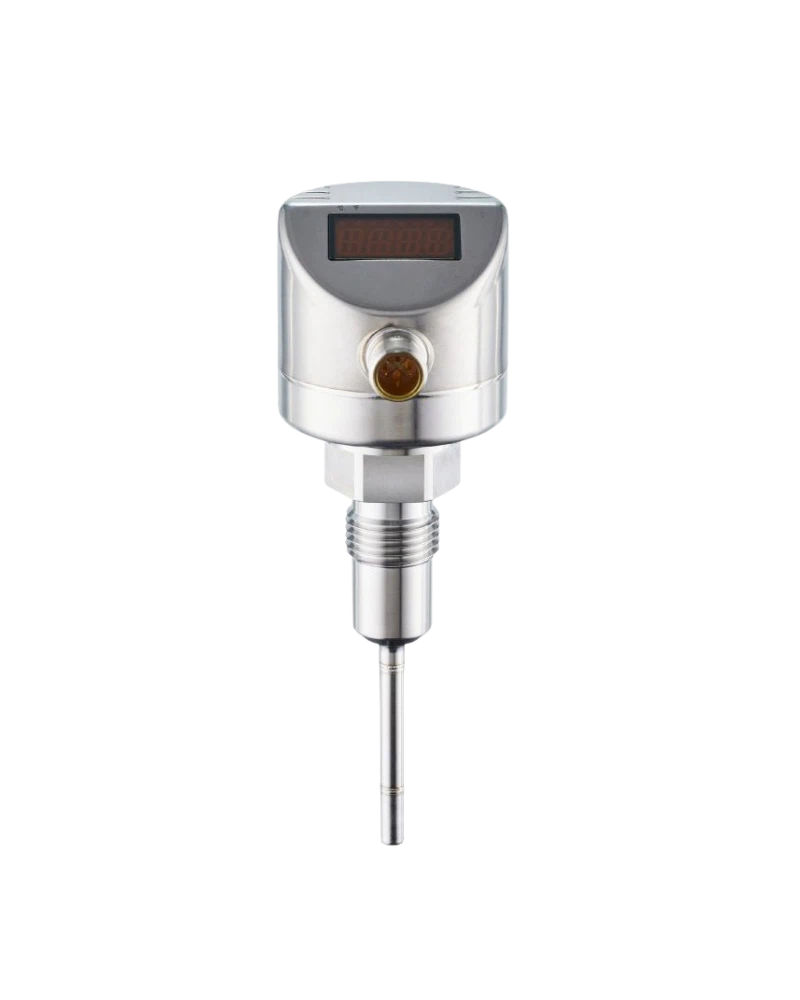

The TD2547 provides accurate temperature monitoring with a 150 mm installation length for deeper process applications. It uses a Pt1000 Class A sensing element and provides a -50...150 °C measuring range. The device features a four-digit LED display, configurable 4–20 mA output, and IO-Link communication. Its G 1/2 external thread and sealing cone provide secure process installation. The robust stainless-steel construction makes it suitable for hygienic liquid and gas measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TD2547 is designed for deeper process temperature measurement. Its 150 mm probe provides additional installation flexibility. The integrated display provides clear local indication. Digital IO-Link communication simplifies configuration. The device combines local operation with automation-ready connectivity.
The sensor measures temperatures from -50...150 °C. The 4–20 mA signal supports conventional PLC integration. IO-Link provides digital process-value communication. The output supports loads up to 300 Ω. Fast dynamic response helps track process temperature changes.
The G 1/2 sealing-cone connection supports direct process installation. The 150 mm probe is suitable for larger process equipment. Stainless-steel wetted parts support hygienic applications. The transmitter can be used with liquid and gaseous media. Its pressure and protection characteristics support industrial environments.
IO-Link provides useful information during commissioning and service. The LED display enables direct local checking. Reverse-polarity protection improves installation safety. Short-circuit and overload protection improve output reliability. Regular process connection inspection helps maintain measurement integrity.
150 mm probe
Pt1000 Class A
-50...150 °C range
0...100 °C factory setting
4–20 mA output
IO-Link 1.1
4-digit display
G 1/2 sealing cone
316L stainless steel
IP67/IP68/IP69K
Food processing plants
Brewing systems
Dairy equipment
Process tanks
Pipelines
Liquid temperature measurement
Gas temperature measurement
PLC systems
Process control
Hygienic automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TD2547 |
| 2 | Product Type | Temperature transmitter with display |
| 3 | Sensor | Pt1000 Class A |
| 4 | Measuring Range | -50...150 °C |
| 5 | Factory Setting | 0...100 °C |
| 6 | Installation Length | 150 mm |
| 7 | Probe Diameter | 6 mm |
| 8 | Process Connection | G 1/2 |
| 9 | Connection Design | External thread with sealing cone |
| 10 | Analogue Output | 4–20 mA |
| 11 | Maximum Load | 300 Ω |
| 12 | IO-Link | Yes |
| 13 | IO-Link Revision | 1.1 |
| 14 | Transmission | COM2 |
| 15 | Baud Rate | 38.4 kBaud |
| 16 | Operating Voltage | 18–32 V DC |
| 17 | Current Consumption | <50 mA |
| 18 | Display | 4-digit 7-segment LED |
| 19 | Display Units | °C / °F |
| 20 | Analogue Resolution | 0.04 K |
| 21 | Display Resolution | 0.1 K |
| 22 | Dynamic Response | T05/T09 1/3 s |
| 23 | Ambient Temperature | -25...80 °C |
| 24 | Storage Temperature | -40...100 °C |
| 25 | Protection | IP67 / IP68 / IP69K |
