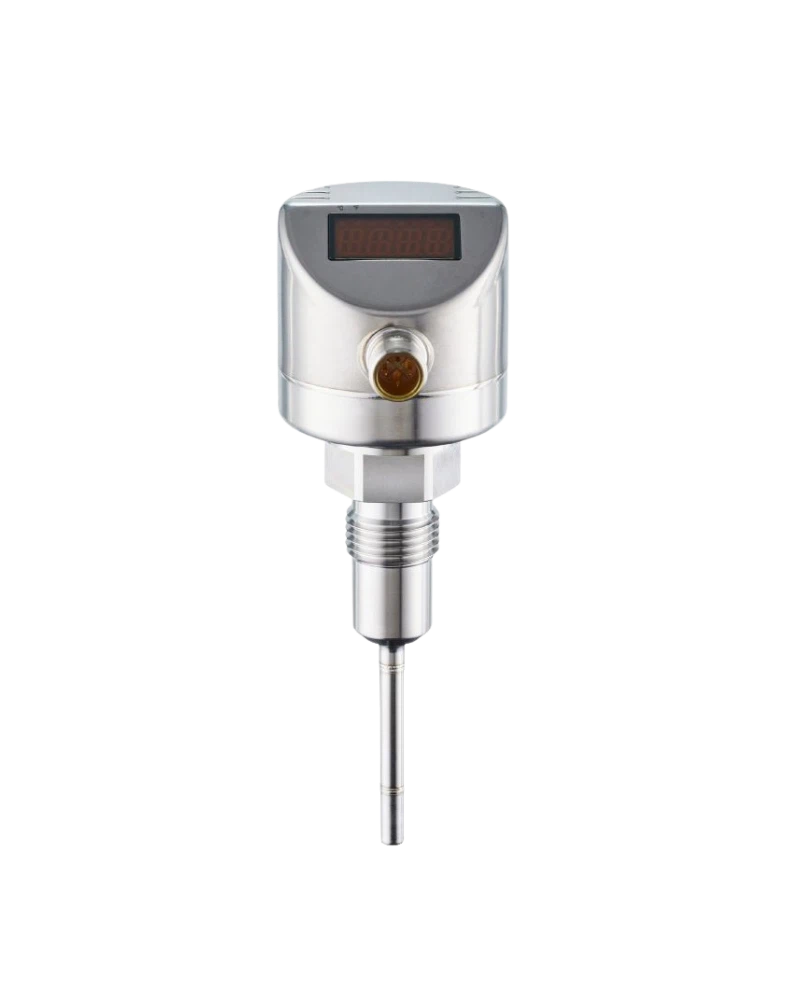

The TD2547 is an IFM temperature transmitter designed for reliable process-temperature measurement with local display. Its Pt 1000 Class A sensor provides stable temperature measurement for industrial applications. The 150 mm installation length provides suitable immersion for many process vessels and pipelines. A G 1/2 threaded connection supports compatible process installations. The transmitter provides 4–20 mA analogue output and IO-Link communication. Its stainless-steel construction and high protection rating make it suitable for hygienic and demanding process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2547 features a 150 mm sensing length and threaded process connection. Stainless-steel construction provides durable process-contact material. The integrated LED display allows local temperature verification. The M12 connector supports reliable electrical integration. Its compact transmitter head is suitable for industrial installations. The design supports continuous process monitoring.
The Pt 1000 Class A element provides dependable process-temperature sensing. The nominal measuring range is -50...150 °C. The 4–20 mA output supports conventional automation. IO-Link provides digital parameterisation and diagnostics. Fast response characteristics support dynamic process monitoring. The device is suitable for temperature-control and monitoring applications.
The 4-digit LED display provides clear temperature indication. Celsius and Fahrenheit display formats support different operating standards. The M12 connection provides a secure industrial interface. IO-Link COM2 supports digital configuration. The analogue output supports standard PLC integration. Together, these interfaces provide flexible automation connectivity.
The TD2547 is suitable for food, beverage and hygienic process equipment. Stainless-steel wetted construction supports cleanable process installations. High protection ratings help protect the transmitter in demanding environments. The 150 mm installation length provides increased sensing depth. It can be used for liquid and gas temperature monitoring within suitable process limits. The complete installation should be checked for pressure and connection compatibility.
150 mm probe length
G 1/2 connection
Pt 1000 Class A
4-digit LED display
°C / °F
4–20 mA
IO-Link 1.1
COM2
38.4 kBaud
M12
Stainless steel
IP67 / IP68 / IP69K
Fast response
Short-circuit protection
Overload protection
Food processing
Dairy systems
Beverage production
Breweries
Process tanks
Hygienic vessels
Pipelines
CIP systems
Liquid temperature monitoring
Gas monitoring
Thermal processes
Filling systems
Packaging machinery
PLC control
Industrial automation
| Specification | Details |
|---|---|
| Model | TD2547 |
| Type code | TD-150CFER12-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 150 mm |
| Process connection | G 1/2 |
| Display | 4-digit LED |
| Units | °C / °F |
| Resolution | 0.1 K |
| Analogue output | 4–20 mA |
| Output resolution | 0.04 K |
| Maximum load | 300 Ω |
| Communication | IO-Link 1.1 |
| Mode | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply voltage | 18...32 V DC |
| Current | <50 mA |
| Connector | M12 |
| Probe diameter | 6 mm |
| Wetted material | Stainless steel |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
