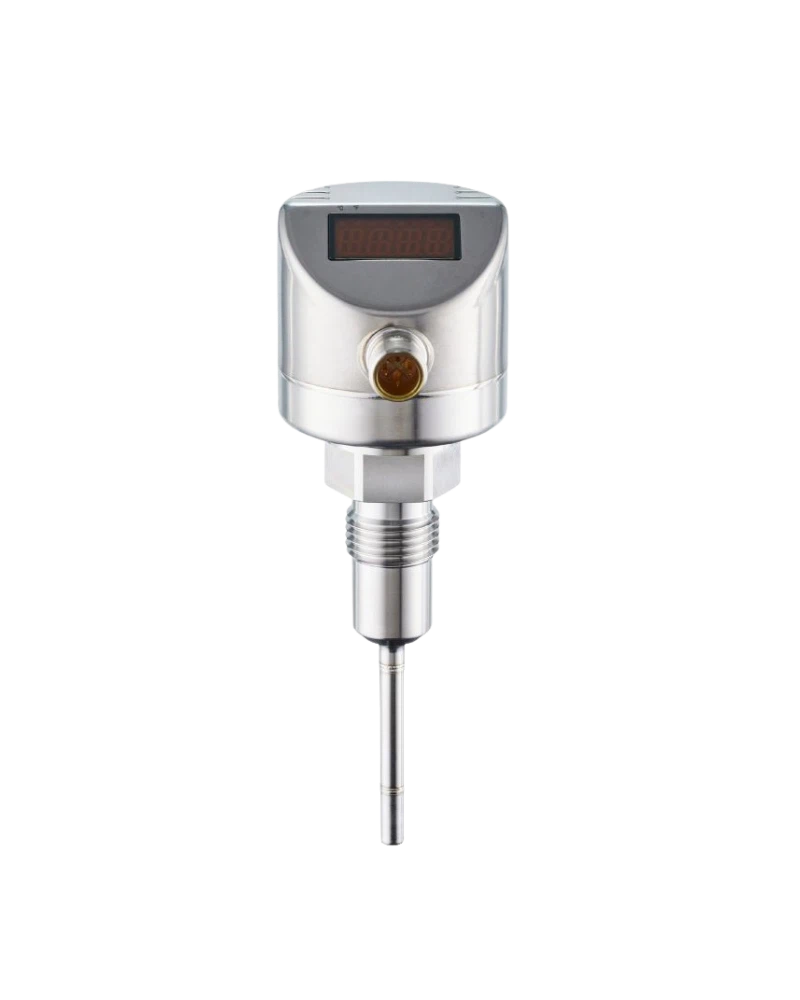

The TD2541 is an IFM temperature transmitter with integrated display and a 150 mm installation length. It uses a Pt 1000 Class A sensor for dependable process-temperature measurement. The G 1/2 threaded process connection provides a practical solution for compatible hygienic installations. A 4–20 mA analogue output allows integration with PLCs and process controllers. IO-Link provides digital parameterisation, diagnostics and process-data access. The stainless-steel construction and high protection rating make it suitable for demanding process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2541 provides a 150 mm sensing length for deeper process measurement applications. Stainless-steel process-contact materials support durability and hygienic installation. The G 1/2 threaded connection allows installation with compatible adapters. The integrated display provides local temperature visibility. The M12 electrical connection simplifies industrial wiring. Its compact transmitter head supports convenient operation and maintenance.
The Pt 1000 Class A sensor provides stable and repeatable temperature measurement. The nominal range extends from -50...150 °C. A 4–20 mA output provides a standard analogue signal. IO-Link provides digital configuration and diagnostics. Fast response characteristics support changing process conditions. The transmitter is suitable for temperature monitoring and control.
The four-digit LED display provides clear process-temperature indication. Celsius and Fahrenheit formats provide flexible operation. M12 connectivity supports reliable industrial integration. IO-Link COM2 allows digital communication and parameterisation. The analogue output connects to standard PLC inputs. This combination provides local indication and automation connectivity.
The TD2541 is suitable for food, beverage, dairy and hygienic process systems. Stainless-steel construction supports cleanable process equipment. High ingress protection helps protect the device in demanding environments. Its 150 mm installation length suits deeper process measurement points. Suitable liquids and gases can be monitored within the specified process limits. The process connection and pressure requirements should be checked before installation.
150 mm installation length
G 1/2 process connection
Pt 1000 Class A
4-digit LED display
°C / °F
4–20 mA output
IO-Link 1.1
COM2
38.4 kBaud
M12 connection
Stainless steel
IP67 / IP68 / IP69K
Fast response
Overload protection
Short-circuit protection
Food processing
Dairy production
Beverage plants
Brewing
Process tanks
Hygienic vessels
Pipelines
CIP systems
Liquid monitoring
Gas monitoring
Thermal processing
Filling machinery
Packaging equipment
PLC control
Industrial automation
| Specification | Details |
|---|---|
| Model | TD2541 |
| Type code | TD-150CFER12-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 150 mm |
| Process connection | G 1/2 |
| Display | 4-digit LED |
| Units | °C / °F |
| Resolution | 0.1 K |
| Output | 4–20 mA |
| Output resolution | 0.04 K |
| Maximum load | 300 Ω |
| IO-Link revision | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply | 18...32 V DC |
| Current | <50 mA |
| Connector | M12 |
| Probe diameter | 6 mm |
| Material | Stainless steel |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
