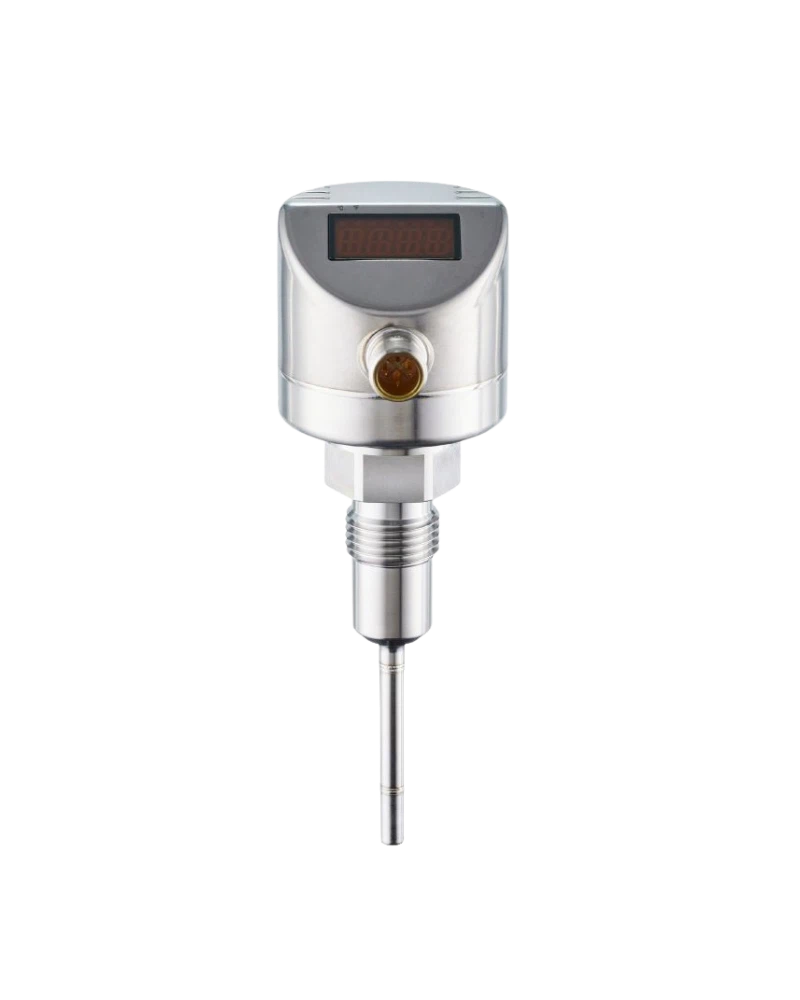

The TD2517 is a compact hygienic temperature transmitter with a 50 mm installation length and integrated local display. It uses a Class A Pt1000 measuring element for dependable process temperature measurement. The device provides a configurable 4–20 mA analogue signal together with IO-Link communication. Its factory measuring setting is 0...100 °C while the available measuring range extends from -50...150 °C. The robust stainless-steel design makes it suitable for food, beverage, pharmaceutical, and general hygienic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TD2517 provides continuous temperature monitoring at the process point. The integrated display makes local temperature verification simple for operators and maintenance personnel. Its Pt1000 sensor provides stable measurement performance. IO-Link supports digital parameterisation and process-value access. The compact design helps simplify installation in process equipment.
The transmitter supports a -50...150 °C measuring range. The 4–20 mA output provides a standard industrial signal for PLC and controller integration. IO-Link provides additional digital communication and configuration capability. The analogue output has a 300 Ω maximum load. Fast response characteristics support temperature monitoring in changing process conditions.
The device uses a G 1/2 external thread with sealing cone. The 50 mm probe length suits compact measurement locations. Stainless-steel wetted parts support hygienic process environments. The construction is designed for liquids and gases. The high protection rating supports demanding industrial washdown conditions.
IO-Link enables convenient device setup and diagnostic access. The display provides direct confirmation of the measured temperature. Electrical protection includes reverse-polarity, short-circuit, and overload protection. Maintenance teams can inspect the process connection and cable condition during routine servicing. Proper installation helps maintain measurement accuracy and process reliability.
Pt1000 Class A sensing element
50 mm installation length
4-digit LED display
4–20 mA analogue signal
IO-Link communication
G 1/2 sealing-cone connection
18–32 V DC operation
300 Ω maximum output load
IP67/IP68/IP69K protection
Stainless-steel wetted construction
Dairy processing
Brewing systems
Food production lines
Hygienic liquid monitoring
Process vessel temperature control
Pipeline temperature measurement
CIP-compatible process equipment
PLC temperature monitoring
Industrial automation
Process quality control
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TD2517 |
| 2 | Product Family | TD Temperature Transmitter |
| 3 | Product Type | Temperature transmitter with display |
| 4 | Measuring Element | 1 × Pt1000 |
| 5 | Sensor Class | Class A |
| 6 | Measuring Range | -50...150 °C |
| 7 | Factory Setting | 0...100 °C |
| 8 | Installation Length | 50 mm |
| 9 | Probe Diameter | 6 mm |
| 10 | Process Connection | G 1/2 external thread |
| 11 | Sealing | Sealing cone |
| 12 | Output | 4...20 mA |
| 13 | Output Quantity | 1 analogue output |
| 14 | Maximum Load | 300 Ω |
| 15 | Communication | IO-Link |
| 16 | IO-Link Revision | 1.1 |
| 17 | Baud Rate | COM2, 38.4 kBaud |
| 18 | Supply Voltage | 18...32 V DC |
| 19 | Current Consumption | <50 mA |
| 20 | Display Type | 4-digit 7-segment LED |
| 21 | Display Units | °C / °F |
| 22 | Ambient Temperature | -25...80 °C |
| 23 | Storage Temperature | -40...100 °C |
| 24 | Protection | IP67 / IP68 / IP69K |
| 25 | Wetted Material | Stainless steel 316L / 1.4404 |
