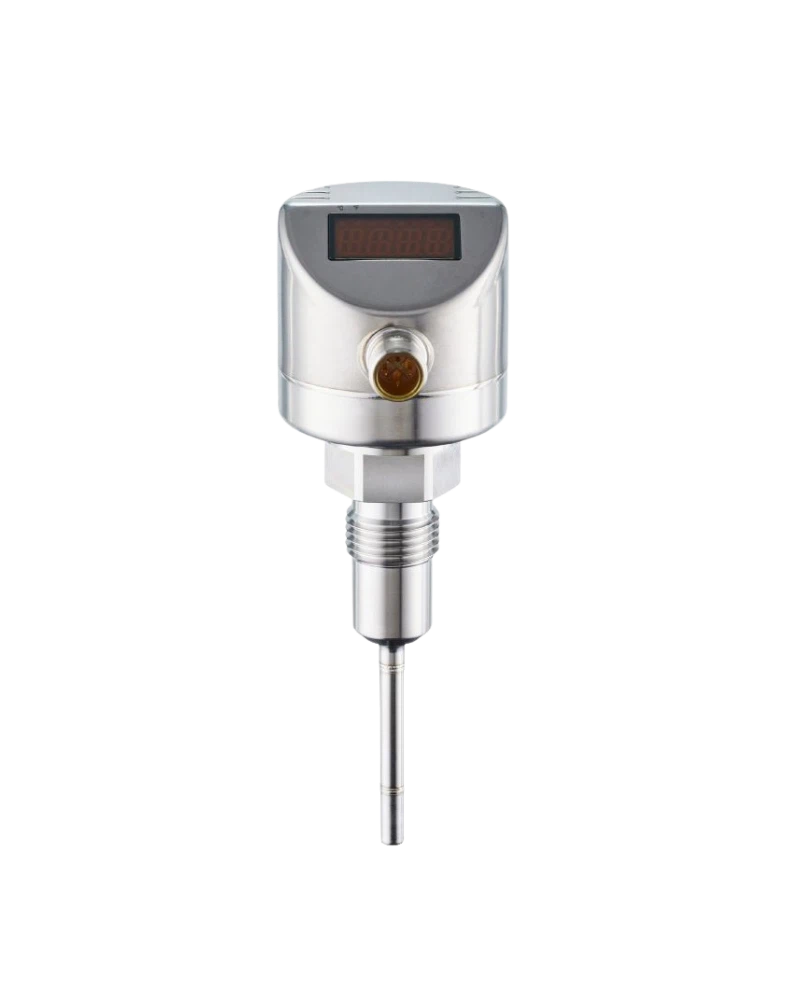

The TD2517 is a compact IFM temperature transmitter with an integrated four-digit display. Its Pt 1000 Class A sensor provides dependable temperature measurement for industrial processes. The 50 mm sensing length provides suitable immersion for compact vessels and process lines. The G 1/2 process connection supports compatible threaded installations. A 4–20 mA analogue output provides conventional automation connectivity. IO-Link communication adds digital configuration and diagnostics for modern control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Design & Construction:
The TD2517 uses a stainless-steel process-contact construction designed for demanding applications. Its 50 mm installation length provides a practical balance between compact size and sensing depth. The threaded process connection simplifies installation with compatible adapters. The integrated display allows direct local temperature verification. M12 electrical connectivity supports industrial wiring. The transmitter is designed for continuous process operation.
Measurement & Performance:
The Pt 1000 Class A element provides reliable temperature measurement. Its nominal measuring range extends to 150 °C. The analogue output provides a 4–20 mA signal for controllers and PLCs. IO-Link adds digital parameterisation and diagnostic information. Fast response characteristics support process monitoring. The transmitter is suitable for applications where dependable temperature feedback is required.
Display & Connectivity:
The 4-digit LED display provides clear local temperature indication. Operators can use °C or °F according to the configured system. The M12 connection provides reliable industrial connectivity. IO-Link COM2 supports configuration through an IO-Link master. The analogue output provides compatibility with conventional systems. These communication options simplify integration into different automation architectures.
Hygiene & Applications:
The TD2517 is suitable for hygienic food and beverage processes. Stainless-steel wetted components support cleanable process installations. High ingress protection supports demanding industrial environments. Its 50 mm installation length suits compact process equipment. It can be used for liquid and gas temperature measurement where process conditions are suitable. Installation should follow the selected process adapter and plant requirements.
Key Features:
50 mm installation length
G 1/2 connection
Pt 1000 Class A
4-digit LED
°C / °F
4–20 mA
IO-Link
COM2
M12
38.4 kBaud
Stainless steel
IP67 / IP68 / IP69K
Fast response
Overload protection
Short-circuit protection
Applications:
Food plants
Beverage systems
Dairy equipment
Breweries
Process vessels
Pipelines
CIP systems
Liquid temperature control
Gas monitoring
Thermal processing
Filling equipment
Packaging equipment
PLC systems
Process automation
Machine monitoring
| Specification | Details |
|---|---|
| Model | TD2517 |
| Type code | TD-050CFER12-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 50 mm |
| Process connection | G 1/2 |
| Display | 4-digit LED |
| Display units | °C / °F |
| Resolution | 0.1 K |
| Output | 4–20 mA |
| Maximum load | 300 Ω |
| IO-Link revision | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply | 18...32 V DC |
| Current | <50 mA |
| Connector | M12 |
| Probe | 6 mm |
| Material | Stainless steel |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
| Ambient | -25...80 °C |
