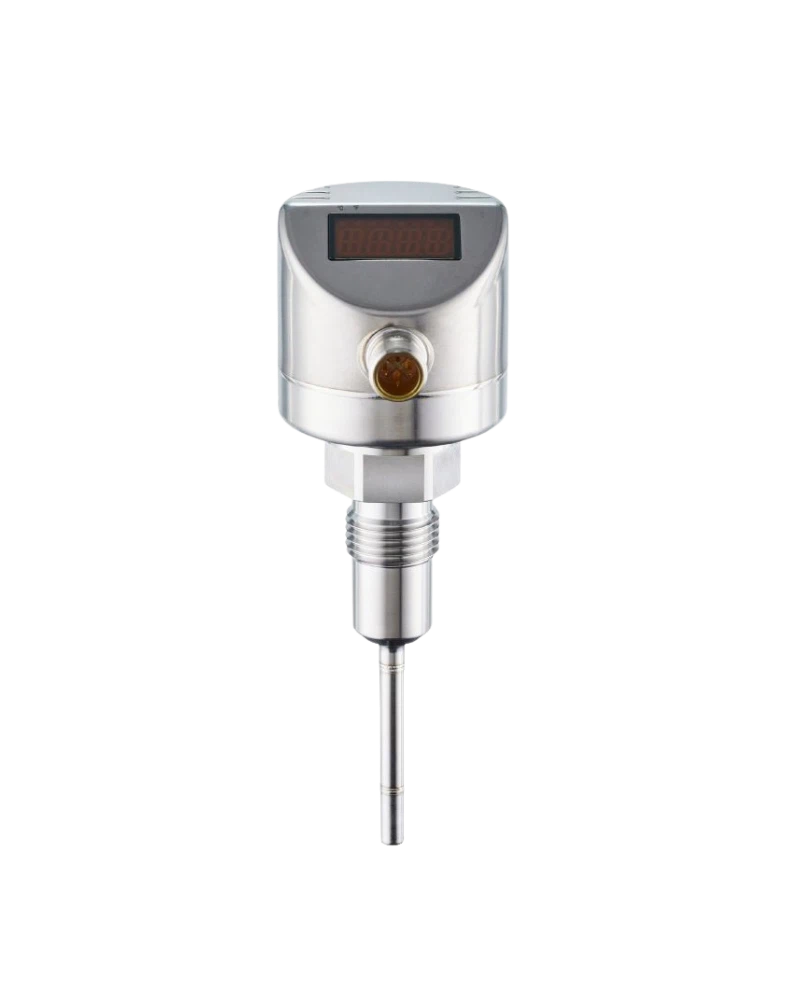

The TD2511 is an IFM temperature transmitter designed for reliable process-temperature measurement with integrated local display. Its Pt 1000 Class A sensor provides stable and accurate temperature measurement. The 50 mm installation length provides additional immersion compared with compact versions. The G 1/2 threaded process connection supports compatible hygienic process installations. The transmitter provides 4–20 mA output together with IO-Link communication. Its stainless-steel construction and high ingress protection make it suitable for demanding process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Design & Construction:
The TD2511 features a 50 mm sensing length and G 1/2 threaded connection. Its stainless-steel wetted construction provides durability and suitable hygienic characteristics. The integrated display allows operators to view temperature directly. The compact transmitter head simplifies installation and maintenance. The M12 connector provides reliable industrial connectivity. The design is suitable for automated process equipment.
Measurement & Performance:
The Pt 1000 Class A element provides repeatable temperature measurement. The nominal range extends from -50...150 °C. The 4–20 mA output provides a standard industrial signal. IO-Link enables digital parameterisation and diagnostics. Fast response supports dynamic process-temperature monitoring. The transmitter is suitable for continuous temperature control applications.
Display & Connectivity:
The 4-digit LED display provides clear local indication. °C and °F display options provide operational flexibility. M12 connectivity supports industrial installation. IO-Link COM2 provides digital communication with automation systems. The 4–20 mA output supports standard PLC integration. This makes the device suitable for both conventional and modern control systems.
Hygiene & Applications:
The TD2511 is suitable for food, beverage and hygienic process applications. Stainless-steel materials support cleanable process installations. High protection ratings support demanding industrial environments. The 50 mm installation length provides flexible immersion depth. Suitable liquid and gas temperature applications can be monitored. Final process pressure, temperature and adapter compatibility should be checked before installation.
Key Features:
50 mm installation length
G 1/2 threaded connection
Pt 1000 Class A
4-digit LED display
°C / °F
4–20 mA output
IO-Link 1.1
COM2
M12 connector
38.4 kBaud
Stainless-steel construction
IP67 / IP68 / IP69K
Fast response
Short-circuit protection
Overload protection
Applications:
Food processing
Dairy processing
Beverage production
Brewing
Hygienic piping
Process tanks
Process skids
Liquid monitoring
Gas monitoring
CIP systems
Thermal processes
PLC control
Industrial automation
Process monitoring
Production machinery
| Specification | Details |
|---|---|
| Model | TD2511 |
| Type code | TD-050CFER12-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 50 mm |
| Process connection | G 1/2 |
| Display | 4-digit LED |
| Units | °C / °F |
| Display resolution | 0.1 K |
| Analogue output | 4–20 mA |
| Output resolution | 0.04 K |
| Maximum load | 300 Ω |
| IO-Link | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Cycle time | 2.3 ms |
| Supply voltage | 18...32 V DC |
| Current | <50 mA |
| Connector | M12 |
| Probe diameter | 6 mm |
| Wetted material | 316L / 1.4404 |
| Surface finish | Ra <0.8 µm |
| Protection | IP67 / IP68 / IP69K |
| Ambient temperature | -25...80 °C |
