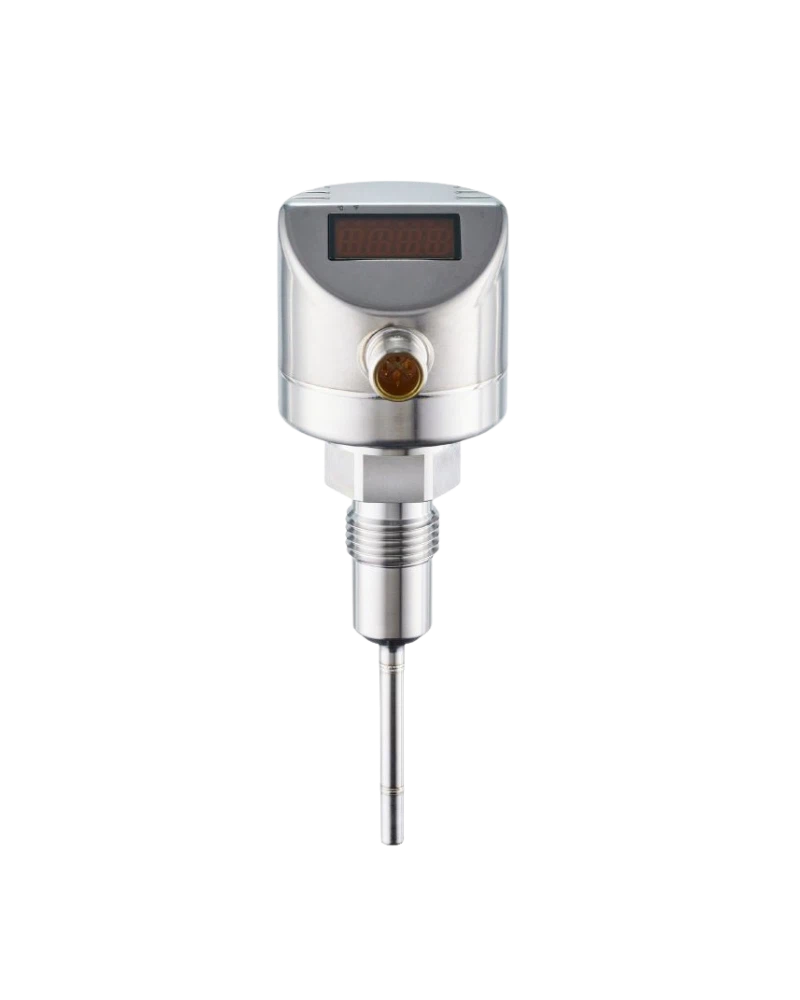

The TD2507 is a compact hygienic temperature transmitter with integrated display and a 30 mm sensing probe. It is designed for food, beverage and sanitary applications requiring a short installation length. The transmitter provides −50…150 °C temperature measurement with 4–20 mA output. IO-Link communication enables digital parameterisation, diagnostics and process-data transmission. Stainless-steel construction and high protection ratings support demanding industrial environments. The TD2507 provides compact installation, clear local indication and reliable automation integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2507 provides a compact solution for temperature monitoring in hygienic process equipment. Its 30 mm insertion length allows installation where longer probes are unsuitable. The integrated four-digit display provides direct local temperature indication. The transmitter supports conventional analogue automation through its 4–20 mA output. IO-Link adds digital communication and configuration capability. It is suitable for continuous temperature monitoring in food and beverage production.
The integrated temperature element detects the process temperature. The electronics process the signal and provide a proportional 4–20 mA output. IO-Link enables digital process communication and device parameterisation. The four-digit display provides local temperature information. Diagnostic functions support troubleshooting and maintenance. The transmitter can therefore be integrated into both traditional and smart automation systems.
The compact 30 mm probe is suitable for short installation spaces. Stainless-steel construction supports hygienic process requirements. High IP protection helps protect against water and cleaning operations. Fast response supports dynamic process monitoring. The M12 interface simplifies electrical installation. The transmitter is designed for continuous industrial service.
30 mm insertion length
Four-digit integrated display
−50…150 °C measuring range
4–20 mA analogue output
IO-Link 1.1
Pt1000 sensing
Stainless-steel construction
Hygienic process design
IP67/IP68/IP69K protection
Fast response
Local temperature display
Digital diagnostics
M12 connection
Compact design
Food and beverage suitability
Food processing machinery
Beverage production
Dairy equipment
Brewing systems
Compact process tanks
Short process connections
Filling equipment
Packaging machinery
CIP systems
Temperature control
Process monitoring
Quality assurance
PLC integration
SCADA monitoring
Machine automation
| Specification | Details |
|---|---|
| Product model | TD2507 |
| Order code | TD-030CFER12-A-ZVG/US |
| Probe length | 30 mm |
| Product type | Temperature transmitter with display |
| Measuring range | −50…150 °C |
| Factory setting | −10…150 °C |
| Sensor | Pt1000 |
| Output | 4–20 mA |
| Maximum load | 300 Ω |
| Display | 4-digit LED |
| Display resolution | 0.1 K |
| Analogue resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| IO-Link | Yes |
| IO-Link revision | 1.1 |
| Communication speed | COM2, 38.4 kBaud |
| Dynamic response T05 | 1 s |
| Dynamic response T09 | 3 s |
| Supply voltage | 18–32 V DC |
| Ambient temperature | −25…80 °C |
| Storage temperature | −40…100 °C |
| Protection rating | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Construction | Stainless steel |
| Application | Food, beverage and hygienic process |
