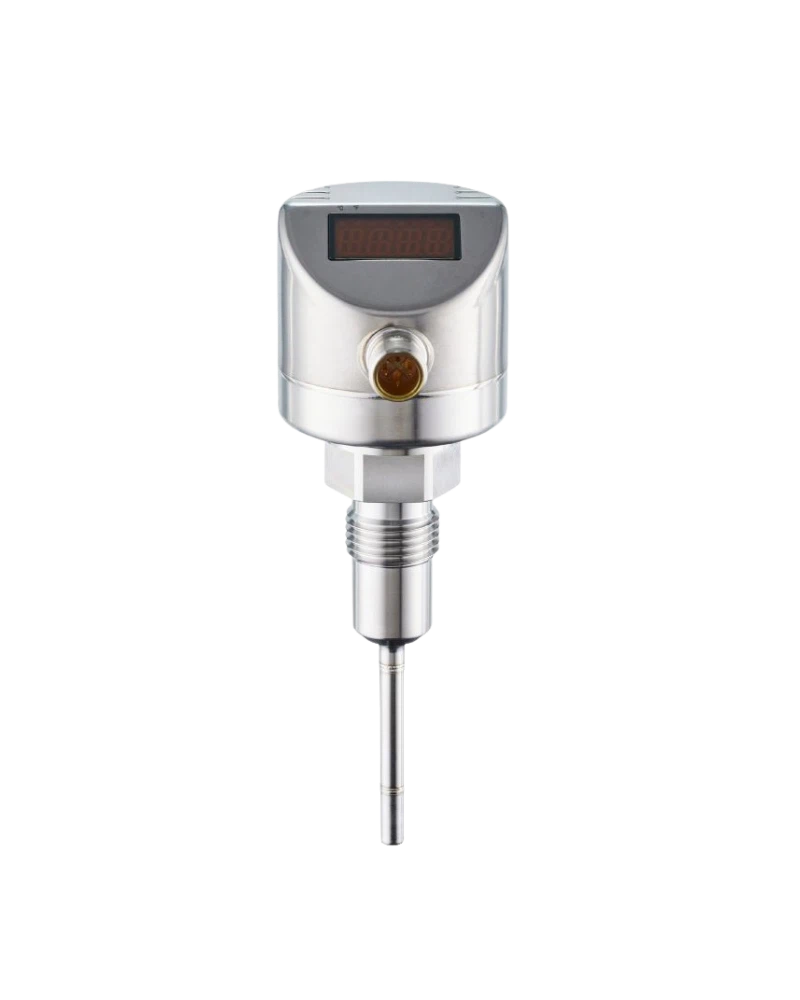

The TD2507 is a compact IFM temperature transmitter designed for process-temperature measurement with local LED indication. Its Pt 1000 Class A sensor provides stable and repeatable temperature measurement. The 30 mm installation length makes the transmitter suitable for compact process installations. A G 1/2 process connection allows connection to compatible threaded process systems. The device provides 4–20 mA output and IO-Link communication for automation integration. Its hygienic construction and high protection rating support demanding food and beverage applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2507 is designed around a compact 30 mm sensing length and G 1/2 threaded process connection. Stainless-steel construction provides durable process-contact material. The integrated LED display allows operators to check the measured temperature locally. The compact design is useful where installation space is restricted. The M12 connector provides a practical industrial electrical connection. Its construction is suited to sanitary process equipment.
The Pt 1000 Class A sensor provides stable temperature measurement. The nominal range covers -50...150 °C. The device can be configured for the required process-temperature range. Its 4–20 mA output allows connection to conventional control systems. IO-Link provides digital parameterisation and diagnostics. The fast response makes it suitable for monitoring process-temperature changes.
The four-digit LED display provides direct temperature indication at the measurement point. Celsius and Fahrenheit presentation support different plant requirements. The M12 connection supports reliable industrial wiring. IO-Link communication provides digital access to configuration and diagnostic information. The 4–20 mA output provides compatibility with PLCs and process controllers. The combination of display and communication simplifies process monitoring.
The TD2507 is suitable for food, beverage and hygienic process equipment. Its stainless-steel process-contact construction supports cleanable installations. High protection ratings help the device withstand demanding industrial environments. The compact 30 mm sensing length is useful for smaller process connections and equipment. It can be used for temperature monitoring of suitable liquids and gases. The complete process installation should be checked for pressure, temperature and hygienic requirements.
30 mm installation length
G 1/2 threaded connection
Pt 1000 Class A
4-digit LED display
°C / °F display
4–20 mA output
IO-Link 1.1
COM2
38.4 kBaud
M12 connector
Stainless-steel body
IP67 / IP68 / IP69K
Fast response
Short-circuit protection
Overload protection
Food processing
Beverage production
Dairy equipment
Brewing systems
Hygienic machinery
Process skids
Piping systems
Liquid monitoring
Gas monitoring
CIP equipment
Temperature control
PLC automation
Process monitoring
Industrial machinery
Production lines
| Specification | Details |
|---|---|
| Model | TD2507 |
| Type code | TD-030CFER12-A-ZVG/US |
| Sensor | Pt 1000 |
| Class | Class A |
| Standard | DIN EN 60751 |
| Measuring range | -50...150 °C |
| Installation length | 30 mm |
| Process connection | G 1/2 |
| Display | 4-digit LED |
| Units | °C / °F |
| Resolution | 0.1 K |
| Analogue output | 4–20 mA |
| Output resolution | 0.04 K |
| Maximum load | 300 Ω |
| IO-Link version | 1.1 |
| Communication | COM2 |
| Baud rate | 38.4 kBaud |
| Minimum cycle time | 2.3 ms |
| Supply | 18...32 V DC |
| Current | <50 mA |
| Connector | M12 |
| Protection | IP67 / IP68 / IP69K |
| Wetted material | 316L / 1.4404 |
| Surface finish | Ra <0.8 µm |
