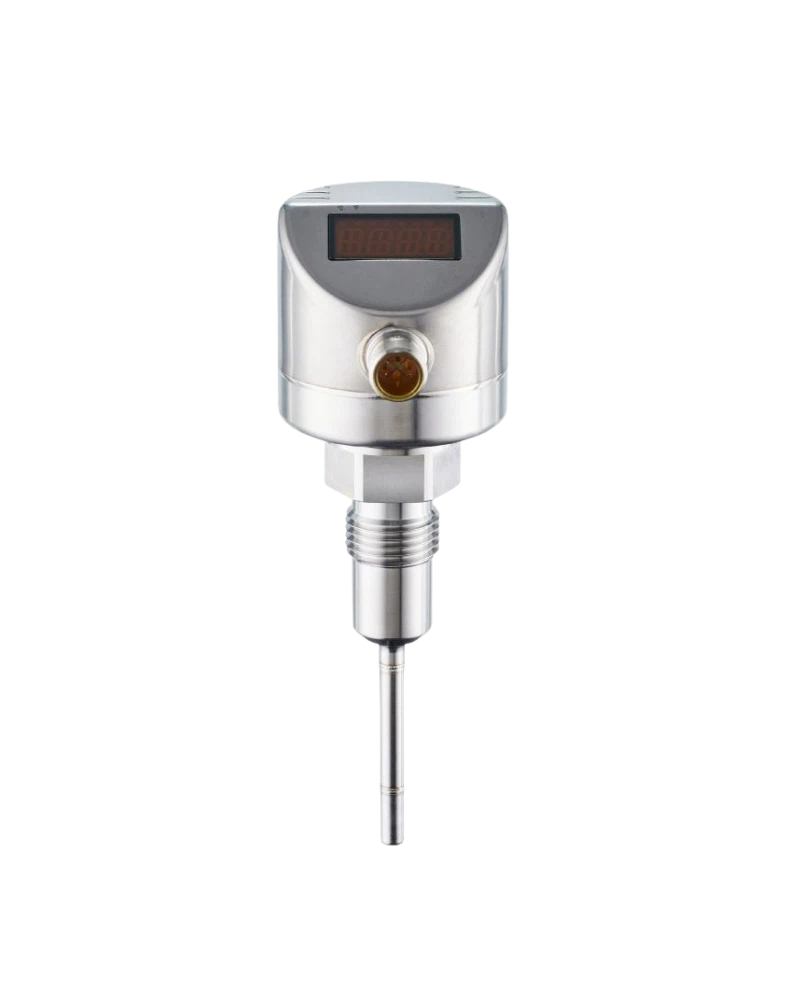

The TD2501 is a compact temperature transmitter with integrated display and a 30 mm probe length. It is designed for hygienic applications where a short sensing depth is required. The transmitter supports a −50…150 °C measuring range and provides a 4–20 mA analogue output. IO-Link communication enables digital configuration, diagnostics and process-data access. Its stainless-steel construction and IP67/IP68/IP69K protection support demanding food and beverage environments. The compact 30 mm design makes the TD2501 suitable for space-constrained process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2501 is intended for compact hygienic temperature measurement. Its 30 mm probe is suitable for short insertion requirements and smaller process connections. The integrated four-digit display provides local process information. Analogue 4–20 mA output supports conventional automation systems. IO-Link enables advanced device configuration and diagnostics. The transmitter combines compact installation with reliable process monitoring.
The temperature sensor detects the process temperature. Electronics convert the measurement into a proportional 4–20 mA signal. IO-Link provides digital communication and parameterisation. The integrated display provides local temperature indication. Diagnostic information can be accessed through the digital interface. This enables local and remote monitoring from one device.
The 30 mm probe provides a compact sensing solution. Stainless-steel construction supports hygienic process requirements. High protection ratings support washdown environments. The transmitter provides fast temperature response. Its compact design is useful where installation space is limited. The device is suitable for continuous process operation.
30 mm probe length
Integrated four-digit display
−50…150 °C range
4–20 mA output
IO-Link 1.1
Pt1000 sensing
Stainless-steel construction
Hygienic design
IP67/IP68/IP69K
Fast response
Local display
Digital diagnostics
M12 connection
Compact installation
Food industry suitability
Compact process equipment
Food machinery
Beverage equipment
Dairy systems
Brewing equipment
Small process vessels
Process piping
Filling machines
Packaging machinery
CIP applications
Temperature control
Local temperature indication
PLC monitoring
SCADA
Quality control
| Specification | Details |
|---|---|
| Product model | TD2501 |
| Order code | TD-030CFER12-A-ZVG/US |
| Probe length | 30 mm |
| Product type | Temperature transmitter with display |
| Measuring range | −50…150 °C |
| Factory setting | −10…150 °C |
| Sensor | Pt1000 |
| Output | 4–20 mA |
| Maximum load | 300 Ω |
| Display | 4-digit LED |
| Display resolution | 0.1 K |
| Analogue resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| IO-Link | Yes |
| IO-Link revision | 1.1 |
| Communication | COM2 |
| T05 response | 1 s |
| T09 response | 3 s |
| Supply voltage | 18–32 V DC |
| Ambient temperature | −25…80 °C |
| Storage temperature | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Construction | Stainless steel |
| Application | Hygienic process |
