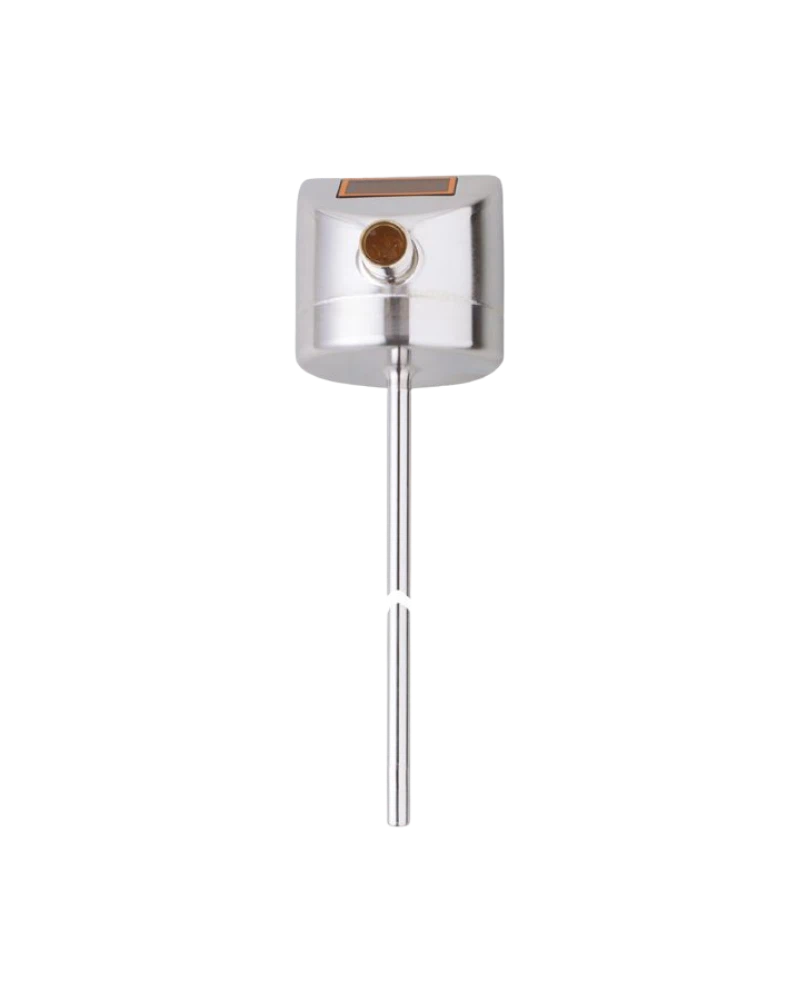

The TD2211 is a hygienic temperature transmitter with an integrated four-digit display for clear local temperature indication. Its 50 mm probe length provides a compact solution for temperature monitoring in process equipment. The transmitter supports a measuring range of −50 to 150 °C and provides a 4–20 mA analogue output. IO-Link communication enables parameterisation, diagnostics and digital process-data access. Its stainless-steel construction and high ingress protection make it suitable for demanding food and beverage applications. The TD2211 combines local visualization with reliable automation-system integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TD2211 is designed for hygienic temperature measurement with direct local indication. Its integrated display allows operators to view the measured temperature directly at the installation point. The 50 mm insertion length is suitable for compact process connections and shorter sensing depths. The transmitter provides both analogue and IO-Link communication for flexible automation integration. Its one-piece stainless-steel design supports hygienic production environments. The device is suitable for process monitoring, control and quality assurance.
The integrated temperature sensing element measures the process medium. The electronics convert the measured temperature into a standard analogue signal. The current output can be transmitted to PLC, DCS or other control equipment. IO-Link provides digital access to process values and device parameters. The integrated display provides local four-digit temperature indication. The transmitter therefore supports local operation and remote automation monitoring simultaneously.
The four-digit display provides clear local visualization of the measured temperature. Display information helps operators verify process conditions without accessing the control cabinet. Parameters can be adjusted through IO-Link. Diagnostic information can also be accessed through the communication interface. The display is useful during commissioning, troubleshooting and routine operation. Its compact design maintains the hygienic character of the sensor.
The TD2211 provides a measuring range of −50…150 °C. Its analogue output accuracy is specified by ifm at approximately ±0.3 K plus ±0.1% of the measuring span under stated conditions. Dynamic response is approximately T05/T09 = 1/3 seconds. Protection ratings include IP67, IP68 and IP69K. The device is designed for high-pressure and washdown environments.
50 mm probe length
Four-digit integrated display
−50…150 °C measuring range
4–20 mA analogue output
IO-Link communication
Stainless-steel construction
Hygienic process design
IP67/IP68/IP69K protection
Fast T05/T09 response
Local temperature visualization
Digital parameterisation
Process diagnostics
PLC integration
Food and beverage suitability
High-pressure process suitability
Food processing
Beverage production
Dairy processing
Breweries
Process tanks
Process piping
Hygienic filling systems
CIP applications
SIP applications
Temperature control loops
Local process indication
PLC monitoring
SCADA systems
Quality-control applications
Machine temperature monitoring
| Specification | Details |
|---|---|
| Product model | TD2211 |
| Order code | TD-050CFED06-A-ZVG/US |
| Product type | Temperature transmitter with display |
| Probe length | 50 mm |
| Measuring range | −50…150 °C |
| Factory setting | −10…150 °C |
| Sensor | Pt1000 |
| Accuracy | Approx. ±0.3 K + ±0.1% MS |
| Analogue output | 4–20 mA |
| Number of analogue outputs | 1 |
| Maximum load | 300 Ω |
| Output protection | Short-circuit/overload protected |
| Display | 4-digit LED |
| Display resolution | 0.1 K |
| Analogue resolution | 0.04 K |
| IO-Link | Yes |
| IO-Link revision | 1.1 |
| IO-Link speed | COM2, 38.4 kBaud |
| Dynamic response T05 | 1 s |
| Dynamic response T09 | 3 s |
| Supply voltage | 18–32 V DC |
| Ambient temperature | −25…80 °C |
| Storage temperature | −40…100 °C |
| Protection rating | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Application | Hygienic process industry |
