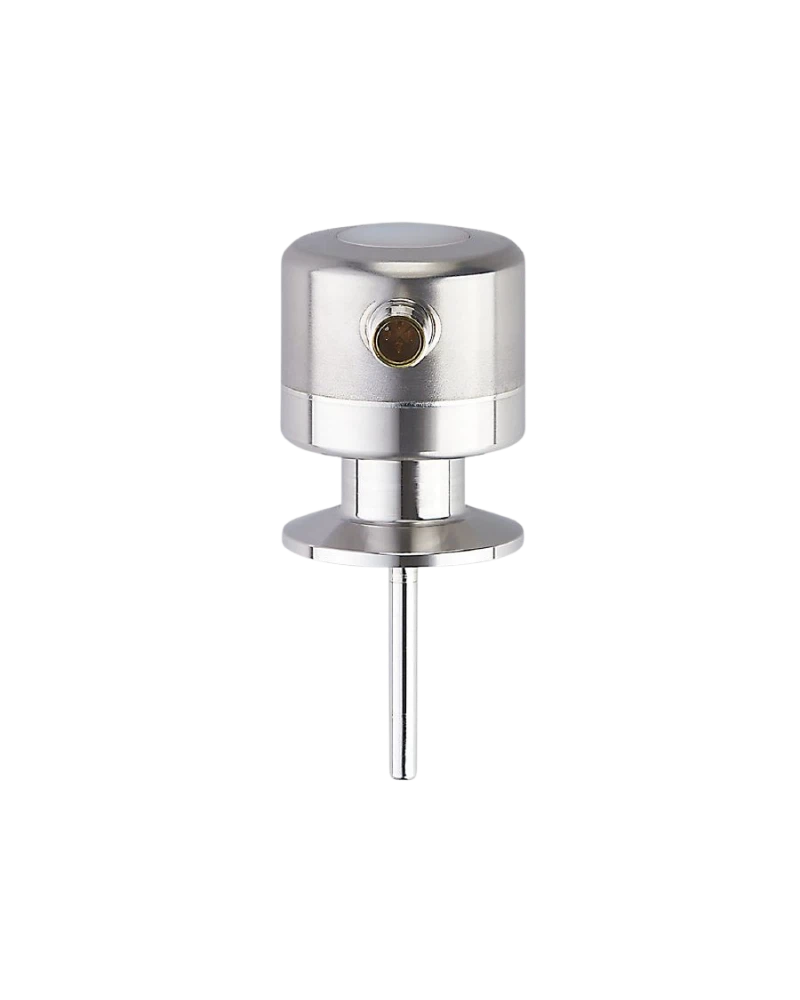

The TCC831 is a 100 mm temperature transmitter designed for accurate process temperature monitoring and integrated diagnostics. Its NTC sensing technology provides reliable temperature measurement while supporting calibration-check functionality. The transmitter provides a 4...20 mA analogue output and IO-Link communication for flexible automation integration. Its 100 mm installation length allows deeper temperature measurement than the shorter TCC811 configuration. Robust construction, high ingress protection and diagnostic functions make it suitable for demanding industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC831 provides intelligent temperature measurement with integrated sensor diagnostics. Its 100 mm probe length supports process applications requiring additional insertion depth. The transmitter communicates through IO-Link for configuration, measurement data and diagnostics. A standard analogue output enables direct integration into conventional control systems. Its robust construction supports reliable operation in industrial process environments.
The TCC831 provides a -25...160 °C measuring range. Its analogue output provides a 4...20 mA process signal. IO-Link provides digital temperature data and diagnostic information. Calibration-check functionality allows monitoring of measurement deviations. The transmitter supports accurate temperature measurement while helping maintenance teams identify sensor-related issues.
The 100 mm installation length allows the sensing element to reach deeper process locations. The device is suitable for liquids and gases. Its stainless-steel construction supports demanding process environments. IP68/IP69K protection provides strong environmental protection. Integrated watchdog, overload and short-circuit protection improve operational reliability.
100 mm installation length
NTC temperature sensing
-25...160 °C measuring range
4...20 mA analogue output
IO-Link communication
Calibration-check function
Diagnostic switching output
IP68/IP69K protection
18...32 V DC operating voltage
M12 industrial connector
Food and beverage processing
Dairy production
Liquid temperature monitoring
Gas temperature measurement
Process heating systems
Cooling applications
Hygienic process equipment
PLC automation
Quality monitoring
Predictive maintenance
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC831 |
| 2 | Order Code | TCC100K1EC01-A-DKG/US |
| 3 | Product Type | Temperature transmitter |
| 4 | Sensor Technology | NTC |
| 5 | Measuring Range | -25...160 °C |
| 6 | Factory Setting | -10...150 °C |
| 7 | Analogue Output | 4...20 mA |
| 8 | Digital Output | 1 diagnostic output |
| 9 | Communication | IO-Link |
| 10 | IO-Link Revision | 1.1 |
| 11 | Calibration Check | 0.5...3 K |
| 12 | Analogue Resolution | 0.05 K |
| 13 | Analogue Precision | ±0.2 K |
| 14 | IO-Link Precision | ±0.2 K |
| 15 | Probe Length | 100 mm |
| 16 | Media | Liquids and gases |
| 17 | Pressure Rating | 160 bar |
| 18 | Operating Voltage | 18...32 V DC |
| 19 | Current Consumption | 10 mA at 24 V |
| 20 | Protection Class | III |
| 21 | Protection Rating | IP68 / IP69K |
| 22 | Reverse Polarity Protection | Yes |
| 23 | Overload Protection | Yes |
| 24 | Housing Material | Stainless steel |
| 25 | Electrical Connection | M12 A-coded |
