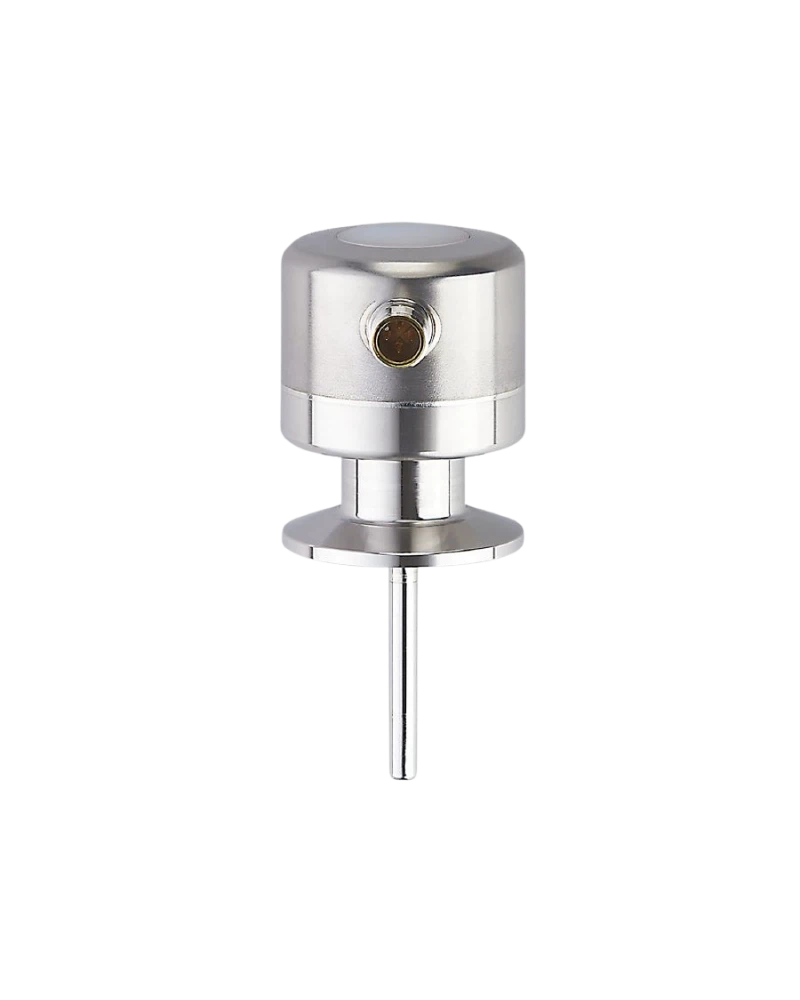

The TCC811 is a self-monitoring temperature transmitter designed for reliable process temperature measurement with an NTC sensing element. It provides accurate analogue output together with IO-Link communication and calibration-check diagnostics. The transmitter is designed for liquid and gas applications and supports a -25...160 °C measuring range. Its 50 mm probe length provides a compact solution for process installations requiring controlled insertion depth. Robust construction, IP68/IP69K protection and diagnostic functions make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC811 is an intelligent temperature transmitter with integrated sensor-condition monitoring. Its NTC reference technology supports calibration-check and diagnostic functions. IO-Link provides convenient digital communication with automation systems. The analogue output allows compatibility with conventional PLC inputs. The compact 50 mm probe makes the transmitter suitable for many process measurement points.
The transmitter provides a -25...160 °C measuring range. The 4...20 mA analogue output provides continuous process temperature information. IO-Link provides additional digital process and diagnostic data. Calibration-check limits can be configured from 0.5 to 3 K. The transmitter provides ±0.2 K precision for analogue and IO-Link temperature measurement.
The transmitter has a 50 mm probe and is designed for liquid and gas applications. Its stainless-steel construction supports industrial process environments. IP68/IP69K protection helps protect the device against moisture and washdown conditions. Diagnostic output functionality communicates calibration status and error conditions. Integrated watchdog and protection functions support reliable operation.
50 mm installation length
NTC sensing technology
-25...160 °C measuring range
4...20 mA analogue output
IO-Link communication
Calibration-check status
Diagnostic output
IP68/IP69K protection
18...32 V DC supply
M12 industrial connection
Food processing
Beverage manufacturing
Liquid temperature monitoring
Gas temperature measurement
Process heating
Cooling systems
Hygienic process automation
PLC control systems
Calibration monitoring
Preventive maintenance
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC811 |
| 2 | Order Code | TCC050K1EC01-A-DKG/US |
| 3 | Product Type | Temperature transmitter |
| 4 | Sensor Technology | NTC |
| 5 | Measuring Range | -25...160 °C |
| 6 | Factory Setting | -10...150 °C |
| 7 | Analogue Output | 4...20 mA |
| 8 | Digital Output | 1 diagnostic output |
| 9 | Communication | IO-Link |
| 10 | IO-Link Revision | 1.1 |
| 11 | Calibration Check | 0.5...3 K |
| 12 | Analogue Resolution | 0.05 K |
| 13 | Analogue Precision | ±0.2 K |
| 14 | IO-Link Precision | ±0.2 K |
| 15 | Probe Length | 50 mm |
| 16 | Media | Liquids and gases |
| 17 | Pressure Rating | 160 bar |
| 18 | Supply Voltage | 18...32 V DC |
| 19 | Current Consumption | 10 mA at 24 V |
| 20 | Protection Class | III |
| 21 | Protection Rating | IP68 / IP69K |
| 22 | Reverse Polarity | Yes |
| 23 | Short-Circuit Protection | Yes |
| 24 | Housing Material | Stainless steel |
| 25 | Electrical Connection | M12 A-coded |
