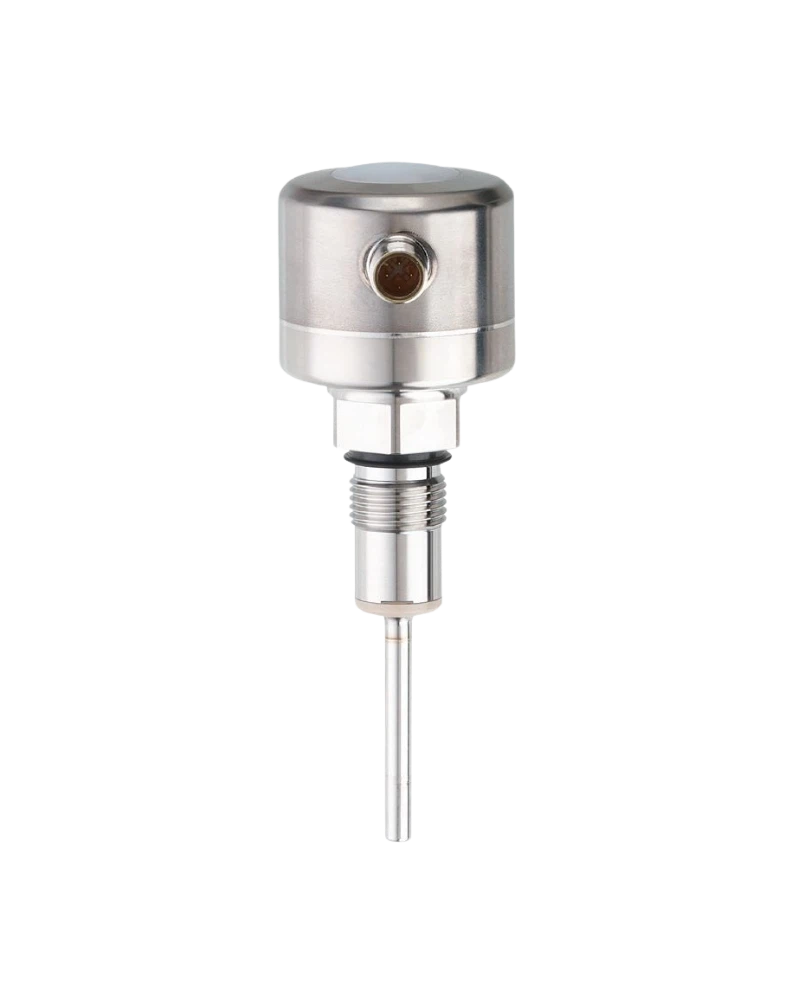

TCC551 is a temperature transmitter designed for extended process temperature measurement applications. It uses Pt1000 sensing technology and an integrated reference element for enhanced measurement monitoring. The model features a long 999 mm installation length for deep vessels and specialized process installations. Its 4...20 mA output supports conventional control systems, while IO-Link enables digital communication and diagnostics. It is suitable for large tanks, process vessels and industrial temperature-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 999 mm installation length allows temperature measurement at significant depth within process vessels. This makes TCC551 suitable for large tanks and specialized industrial equipment. The Pt1000 sensing element provides stable temperature measurement for continuous monitoring. The 4...20 mA signal allows easy integration with PLC and control systems. IO-Link adds advanced digital monitoring and configuration functionality.
TCC551 includes a reference element that supports supervision of the temperature measurement. Internal diagnostics can provide additional information about sensor behaviour. IO-Link allows operators to access diagnostic and parameter data from the control system. This helps identify potential measurement problems before they become process issues. The approach is useful in applications where temperature accuracy and process reliability are important.
The extended probe length makes this transmitter particularly suitable for large process vessels. Stainless-steel construction provides a robust solution for demanding industrial installations. It can be used in liquid-processing and temperature-controlled applications. The transmitter supports integration into modern automated process systems. Proper installation and process compatibility should always be considered for the specific application.
999 mm installation length
Pt1000 sensing element
Integrated reference element
Self-monitoring
4...20 mA output
IO-Link communication
Long insertion length
Diagnostic functions
Digital parameterisation
Stainless-steel construction
Process temperature measurement
PLC integration
Continuous monitoring
Deep-vessel installation
Maintenance diagnostics
Large process tanks
Deep storage vessels
Liquid processing plants
Food processing
Beverage manufacturing
Dairy systems
Industrial process plants
Process skids
Temperature monitoring
Tank automation
Liquid storage
Batch processing
Industrial automation
Process control
Temperature-critical applications
| Specification | Details |
|---|---|
| Product | TCC551 |
| Model | TCC999K1ER12-A-DKG/US |
| Product Type | Temperature transmitter |
| Sensor | Pt1000 |
| Reference Element | Integrated |
| Installation Length | 999 mm |
| Output | 4...20 mA |
| Communication | IO-Link |
| Supply | 18...32 V DC |
| Construction | Stainless steel |
| Application | Process temperature |
| Medium | Liquids/gases |
| Self-Monitoring | Yes |
| Diagnostics | Yes |
| Digital Parameterisation | Yes |
| Installation | Process |
| Mounting | Process connection |
| PLC Compatibility | Yes |
| Sensor Principle | Resistance |
| Signal Type | Analogue/digital |
| Deep Installation | Yes |
| Maintenance | Diagnostic |
| Environment | Industrial |
| Typical Application | Large vessels |
