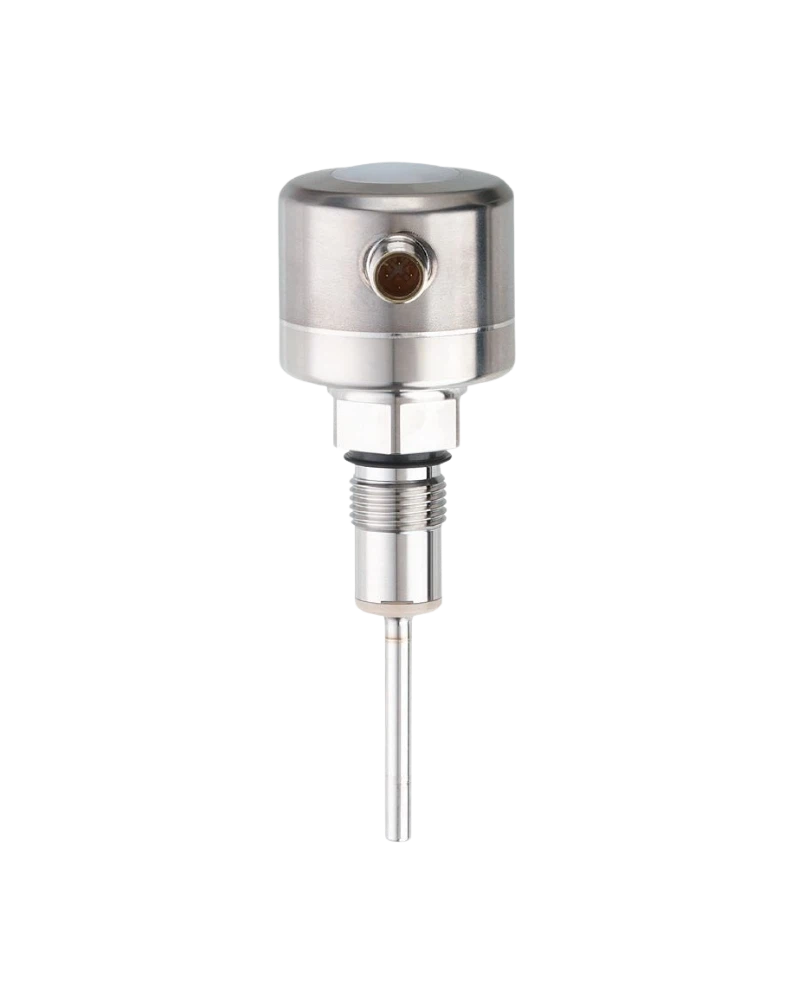

The TCC541 is a 150 mm self-monitoring temperature transmitter designed for accurate and stable process temperature measurement. It uses a Pt1000 sensing element with reference monitoring to support continuous assessment of measurement quality. The transmitter provides 4...20 mA analogue output and IO-Link communication for integration into modern automation architectures. Its G 1/2 threaded process connection offers reliable installation for industrial process equipment. The 150 mm installation length makes it suitable for applications requiring deeper temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC541 combines temperature measurement with integrated diagnostic monitoring. Its longer probe allows the sensing element to reach deeper into vessels and process lines. IO-Link supports digital configuration, identification and diagnostics. The analogue output ensures compatibility with conventional PLC control systems. The transmitter is designed for demanding process and hygienic applications.
The device measures from -25...160 °C. Pt1000 provides the primary temperature measurement. Reference monitoring helps detect deviations in sensor performance. The 4...20 mA signal provides standard analogue process integration. IO-Link provides additional digital measurement and diagnostic data.
The G 1/2 external threaded connection provides a practical process interface. The 150 mm installation length provides deeper insertion capability. Stainless-steel wetted construction supports process durability. IP68/IP69K protection helps withstand demanding environmental conditions. Calibration-check and error diagnostics support reliable long-term operation.
150 mm installation length
Pt1000 measuring element
Reference sensor monitoring
Self-monitoring architecture
-25...160 °C measuring range
4...20 mA output
IO-Link 1.1
Calibration-check function
316L stainless-steel construction
M12 gold-plated contacts
Food processing lines
Dairy plants
Beverage production
Breweries
Process vessels
Heating systems
Cooling systems
Liquid temperature control
Quality assurance
Preventive maintenance
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC541 |
| 2 | Order Code | TCC150K1ER12-A-DKG/US |
| 3 | Product Type | Temperature transmitter |
| 4 | Product Family | TCC Series |
| 5 | Measuring Element | Pt1000 |
| 6 | Reference Element | NTC |
| 7 | Measuring Range | -25...160 °C |
| 8 | Factory Setting | -10...150 °C |
| 9 | Analogue Output | 4...20 mA |
| 10 | Digital Output | Diagnostic output |
| 11 | Communication | IO-Link |
| 12 | Process Connection | G 1/2 external thread |
| 13 | Sealing | Sealing cone |
| 14 | Installation Length | 150 mm |
| 15 | Probe Diameter | 6 mm |
| 16 | Pressure Rating | 160 bar |
| 17 | Media | Liquids and gases |
| 18 | Operating Voltage | 18...32 V DC |
| 19 | Current Consumption | 10 mA at 24 V |
| 20 | Protection Class | III |
| 21 | Protection Rating | IP68 / IP69K |
| 22 | Accuracy | ±0.2 K |
| 23 | Resolution | 0.05 K analogue |
| 24 | Wetted Material | Stainless steel 316L |
| 25 | Electrical Connection | M12 A-coded |
