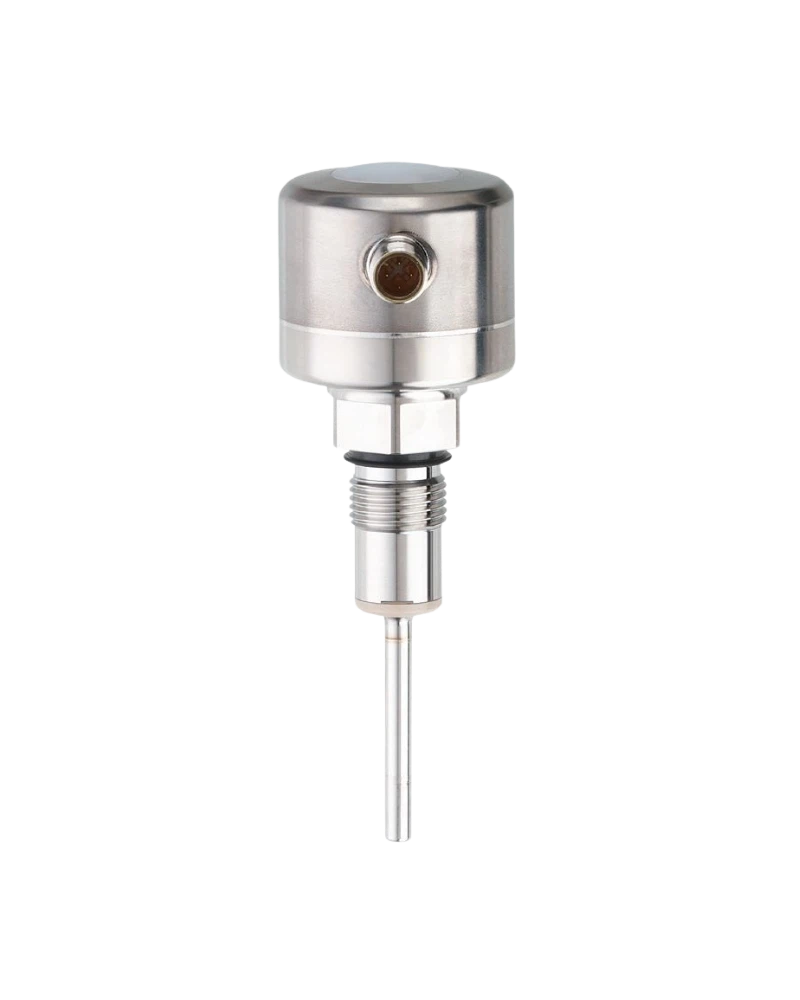

TCC541 is a temperature transmitter with a 150 mm installation length for reliable process temperature monitoring. It uses Pt1000 sensing technology and an integrated reference element for enhanced measurement supervision. The device supports a scalable 4...20 mA analogue output and IO-Link digital communication. Stainless-steel construction provides a robust solution for industrial and hygienic process environments. It can be used across food, beverage, liquid-processing and automated manufacturing applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TCC541 is designed to provide continuous and dependable temperature data. The Pt1000 element supports stable measurement for process-control applications. Its 150 mm insertion length is suitable for medium-depth measurement locations. The analogue output allows simple connection to conventional controllers. IO-Link expands the device with digital configuration and diagnostic capabilities.
The reference element supports internal monitoring of temperature measurement behaviour. This provides an additional layer of measurement supervision compared with conventional sensors. Diagnostic information can be accessed through IO-Link for easier troubleshooting. Operators can use the available information to identify abnormal measurement conditions. This supports improved process reliability and maintenance planning.
TCC541 is suitable for process environments requiring robust and hygienic temperature measurement. Its stainless-steel construction supports use in demanding production equipment. The transmitter can be installed in vessels, pipes and liquid-processing systems. It is appropriate for applications where temperature stability influences product quality. The device can be integrated into both analogue and IO-Link automation architectures.
150 mm installation length
Pt1000 sensor
Integrated reference element
Self-monitoring
4...20 mA output
IO-Link communication
Diagnostic capability
Digital parameterisation
Stainless-steel construction
Hygienic design
Process temperature monitoring
PLC integration
Continuous measurement
Measurement supervision
Industrial automation compatibility
Food processing plants
Beverage manufacturing
Dairy processing
Brewing systems
Liquid processing
Process tanks
Pipelines
Filling equipment
Dosing systems
CIP applications
Temperature-controlled machinery
Process automation
Production skids
OEM equipment
Industrial monitoring
| Specification | Details |
|---|---|
| Product | TCC541 |
| Model | TCC150K1ER12-A-DKG/US |
| Product Type | Temperature transmitter |
| Sensor | Pt1000 |
| Reference | Integrated |
| Installation Length | 150 mm |
| Output | 4...20 mA |
| Interface | IO-Link |
| Supply Voltage | 18...32 V DC |
| Housing | Stainless steel |
| Application | Process temperature |
| Medium | Liquids/gases |
| Self-Monitoring | Yes |
| Diagnostics | Yes |
| Digital Setup | Yes |
| Process Installation | Yes |
| Hygienic Application | Yes |
| PLC Interface | Yes |
| Sensor Technology | Resistance |
| Signal Type | Analogue/digital |
| Maintenance | Diagnostic |
| Installation | Process |
| Environment | Industrial |
| Typical Industry | Food and beverage |
| Use | Temperature control |
