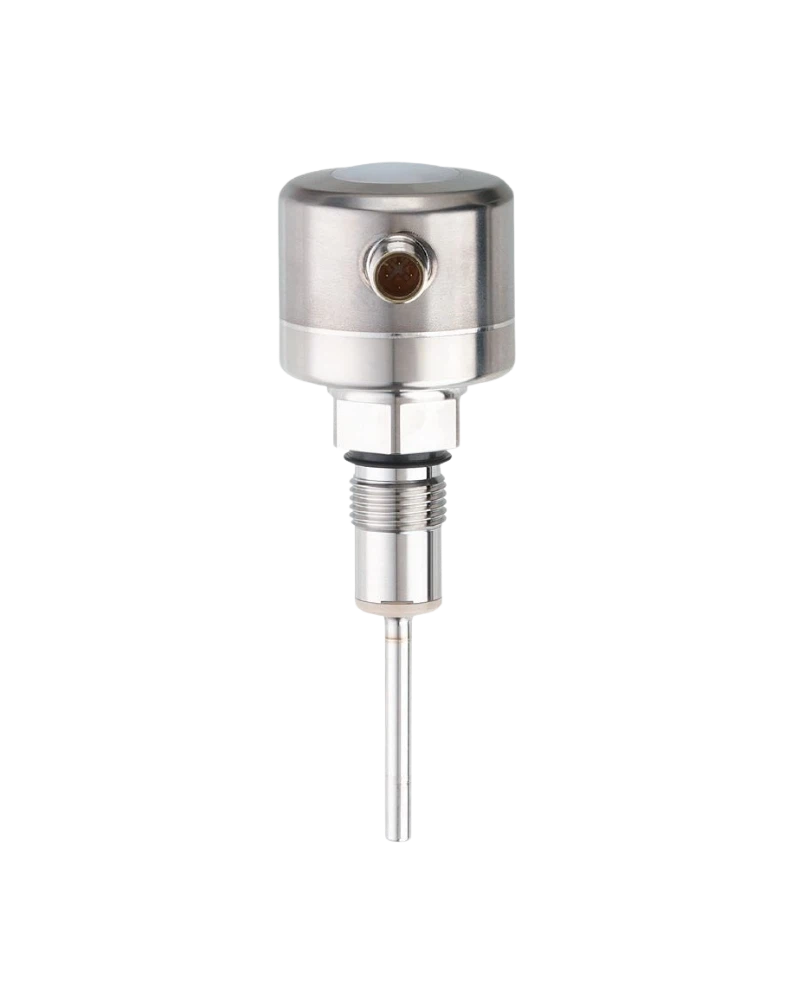

The TCC531 is a 100 mm temperature transmitter designed for reliable process temperature measurement and continuous sensor monitoring. Its Pt1000 measuring element provides accurate temperature feedback while the reference element supports detection of measurement deviations. IO-Link communication provides convenient access to process values, parameters and diagnostic information. The G 1/2 threaded connection supports straightforward installation in process equipment. Its robust 316L stainless-steel construction makes it suitable for demanding food, beverage and industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC531 provides an extended 100 mm insertion length for process temperature measurement. Its self-monitoring architecture improves measurement confidence between calibration intervals. The transmitter can operate as a conventional analogue device or as an IO-Link smart sensor. Diagnostic information supports maintenance and process-quality monitoring. Its construction is suited to liquid and gas applications.
The device provides a -25...160 °C measurement range. The Pt1000 element is used for the primary temperature measurement. A reference element supports monitoring of sensor accuracy and calibration condition. The 4...20 mA output allows integration with standard control systems. IO-Link provides high-resolution digital temperature information and diagnostic data.
The G 1/2 external thread and sealing cone provide a secure process interface. The 100 mm installation length is suitable for deeper measurement points. Stainless-steel wetted parts support demanding process applications. IP68/IP69K protection provides resistance against moisture and washdown conditions. Diagnostic functions provide additional information for preventive maintenance.
100 mm installation length
Pt1000 sensing element
NTC reference element
Self-monitoring temperature measurement
-25...160 °C range
4...20 mA analogue output
IO-Link communication
Calibration-check functionality
316L stainless-steel construction
Gold-plated M12 contacts
Dairy production
Food processing
Beverage production
Brewing systems
Process vessels
Liquid temperature measurement
Thermal processing
Heating and cooling
PLC automation
Process diagnostics
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC531 |
| 2 | Order Code | TCC100K1ER12-A-DKG/US |
| 3 | Product Type | Temperature transmitter |
| 4 | Product Family | TCC Series |
| 5 | Measuring Element | Pt1000 |
| 6 | Reference Element | NTC |
| 7 | Measuring Range | -25...160 °C |
| 8 | Factory Setting | -10...150 °C |
| 9 | Analogue Output | 4...20 mA |
| 10 | Digital Output | Diagnostic switching output |
| 11 | Communication | IO-Link 1.1 |
| 12 | Process Connection | G 1/2 external thread |
| 13 | Sealing | Sealing cone |
| 14 | Installation Length | 100 mm |
| 15 | Probe Diameter | 6 mm |
| 16 | Pressure Rating | 160 bar |
| 17 | Media | Liquids and gases |
| 18 | Supply Voltage | 18...32 V DC |
| 19 | Current Consumption | 10 mA at 24 V |
| 20 | Protection Class | III |
| 21 | Protection Rating | IP68 / IP69K |
| 22 | Accuracy | ±0.2 K |
| 23 | Analogue Resolution | 0.05 K |
| 24 | Housing Material | Stainless steel 316L |
| 25 | Electrical Connection | M12 A-coded |
