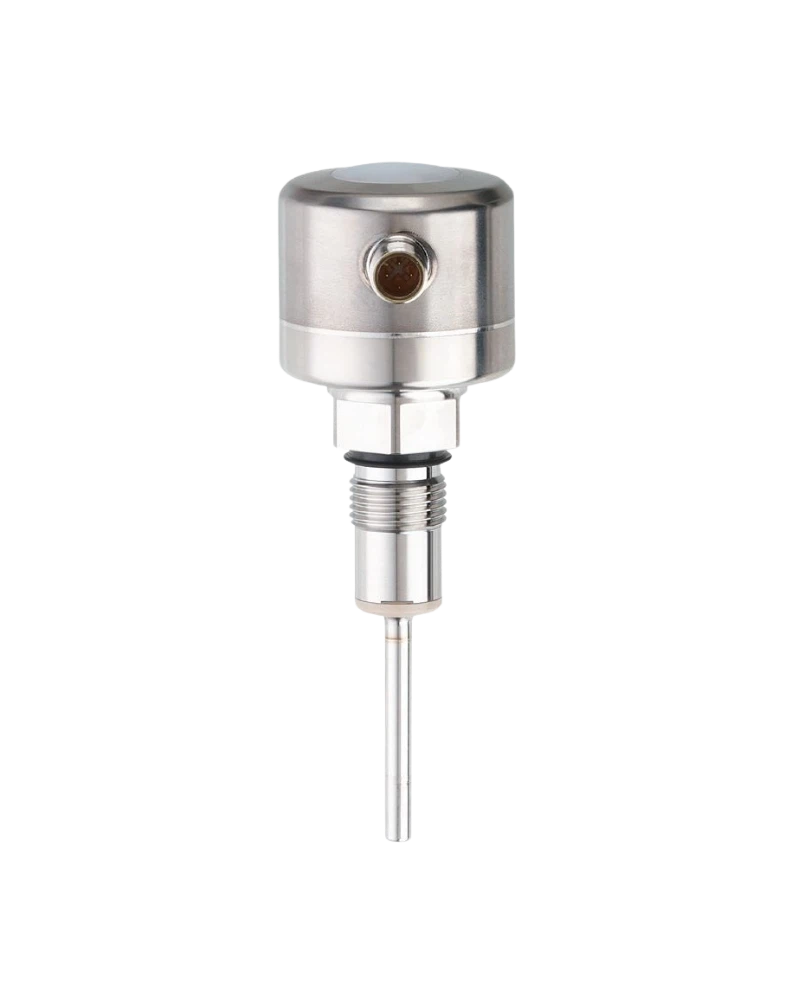

TCC511 is a compact temperature transmitter designed for continuous monitoring of process temperature. It uses a Pt1000 measuring element and reference element to provide reliable measurement supervision. With a 50 mm installation length, the transmitter offers increased insertion depth while retaining a compact process design. The 4...20 mA output supports conventional control systems and IO-Link provides digital communication. It is suitable for food, beverage, liquid processing and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TCC511 is designed to provide consistent temperature information for automated processes. Its Pt1000 sensing element offers reliable temperature measurement across the applicable operating range. The 50 mm insertion length provides flexibility for compact process installations. The analogue output can be connected to PLCs and control systems. IO-Link adds digital access to measurement and diagnostic information.
The transmitter incorporates reference-based monitoring to improve confidence in measured values. Diagnostic functions can help identify abnormal measurement behaviour and potential sensor deviation. IO-Link communication supports digital parameterisation and status monitoring. This helps maintenance personnel troubleshoot the system more efficiently. The device can therefore contribute to reliable process operation and preventative maintenance.
The compact 50 mm construction is suitable for machinery and process equipment with limited installation space. Stainless-steel construction supports demanding process conditions. The transmitter can be integrated into hygienic production equipment and liquid-processing systems. Its combination of analogue and digital communication makes it suitable for different automation architectures. It is particularly useful for OEM machinery and process skids.
50 mm installation length
Pt1000 measuring element
Reference element
Self-monitoring
4...20 mA analogue output
IO-Link interface
Compact design
Stainless-steel construction
Diagnostic functions
Digital parameterisation
Hygienic installation
Continuous temperature measurement
PLC integration
Process-value monitoring
Maintenance support
Food processing equipment
Beverage machinery
Dairy equipment
Liquid handling
Filling systems
Dosing machines
Process skids
Machine automation
Temperature control
Industrial process monitoring
OEM equipment
Hygienic machinery
Production systems
Storage equipment
Process automation
| Specification | Details |
|---|---|
| Product | TCC511 |
| Model | TCC050K1ER12-A-DKG/US |
| Product Type | Temperature transmitter |
| Sensor | Pt1000 |
| Reference Element | Integrated |
| Installation Length | 50 mm |
| Output | 4...20 mA |
| Communication | IO-Link |
| Supply | 18...32 V DC |
| Construction | Stainless steel |
| Application | Temperature measurement |
| Medium | Liquids/gases |
| Self-Monitoring | Yes |
| Diagnostics | Yes |
| Digital Configuration | Yes |
| Process Installation | Yes |
| Hygienic Suitability | Yes |
| Signal Type | Analogue/digital |
| PLC Integration | Yes |
| Sensor Principle | Resistance |
| Mounting | Process mounted |
| Maintenance | Diagnostic |
| Environment | Industrial |
| Typical Industry | Food/process automation |
