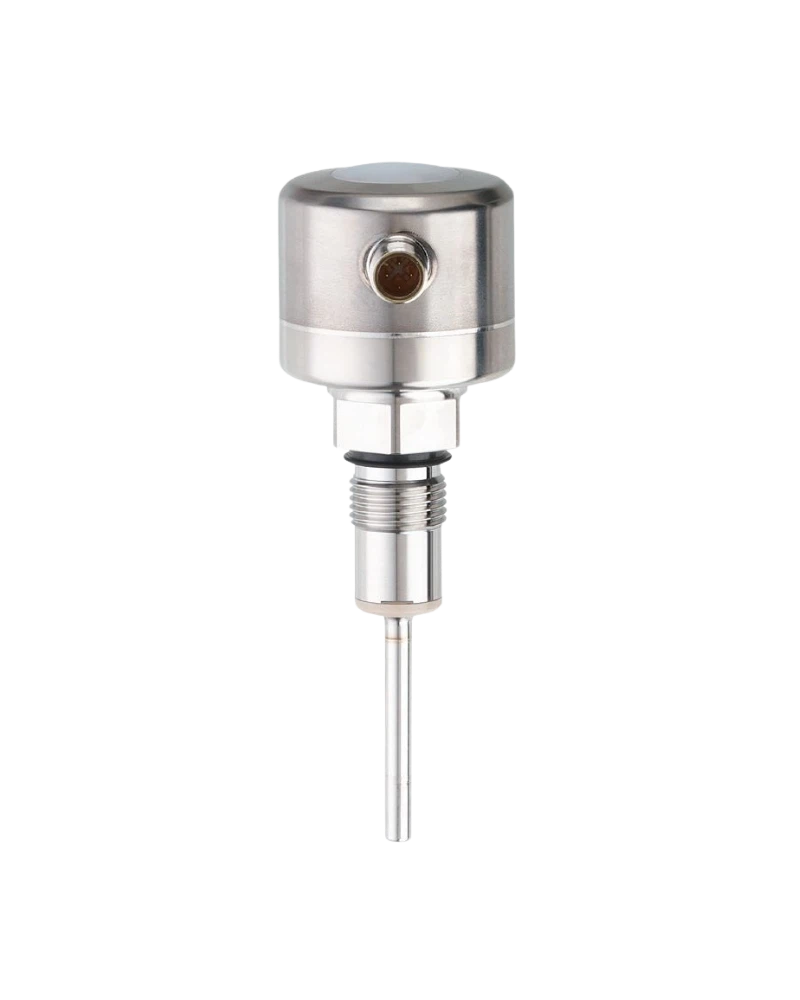

The TCC501 is a compact temperature transmitter with a 30 mm installation length for process applications requiring short insertion depth. It uses a Pt1000 sensing element for accurate temperature measurement and provides self-monitoring capabilities through its diagnostic architecture. The transmitter offers 4...20 mA analogue output and IO-Link communication for flexible automation integration. Its G 1/2 external threaded process connection provides a secure and practical installation method. The compact design makes it suitable for process equipment where installation space is limited.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC501 is designed for compact process temperature measurement. Its 30 mm installation length is useful where available insertion depth is restricted. The transmitter supports analogue process integration as well as digital IO-Link communication. Its self-monitoring design provides additional information about measurement quality. The stainless-steel construction supports industrial process applications.
The Pt1000 measuring element provides precise process temperature measurement. The measuring range extends from -25...160 °C. The 4...20 mA output provides a standard industrial signal. IO-Link enables parameterisation, process-data transmission and diagnostics. Calibration-check functionality helps identify changes in sensor accuracy.
The G 1/2 external threaded connection provides direct process installation. A sealing cone supports reliable process sealing. The 30 mm installation length provides a compact sensing arrangement. Stainless-steel wetted materials are suitable for liquid and gas applications. Diagnostic functions support maintenance and quality monitoring.
30 mm compact installation length
Pt1000 measuring element
-25...160 °C range
4...20 mA analogue output
IO-Link communication
G 1/2 threaded process connection
PNP/NPN electrical design
Calibration-check function
316L stainless-steel construction
M12 connector
Compact process equipment
Food processing
Dairy equipment
Beverage machinery
Liquid temperature measurement
Gas temperature measurement
Heating and cooling systems
Process automation
PLC temperature control
Maintenance diagnostics
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC501 |
| 2 | Order Code | TCC030K1ER12-A-DKG/US |
| 3 | Product Type | Temperature transmitter |
| 4 | Product Family | TCC Series |
| 5 | Measuring Element | Pt1000 |
| 6 | Reference Monitoring | NTC-based monitoring |
| 7 | Measuring Range | -25...160 °C |
| 8 | Factory Setting | -10...150 °C |
| 9 | Analogue Output | 4...20 mA |
| 10 | Diagnostic Output | Switching output |
| 11 | Communication | IO-Link |
| 12 | Process Connection | G 1/2 external thread |
| 13 | Sealing | Sealing cone |
| 14 | Installation Length | 30 mm |
| 15 | Probe Diameter | 6 mm |
| 16 | Pressure Rating | 160 bar |
| 17 | Media | Liquids and gases |
| 18 | Supply Voltage | 18...32 V DC |
| 19 | Current Consumption | 10 mA at 24 V |
| 20 | Protection Class | III |
| 21 | Protection Rating | IP68 / IP69K |
| 22 | Housing Material | Stainless steel 316L |
| 23 | Accuracy | ±0.2 K |
| 24 | Electrical Connection | M12 A-coded |
| 25 | Diagnostic Function | Calibration and error monitoring |
