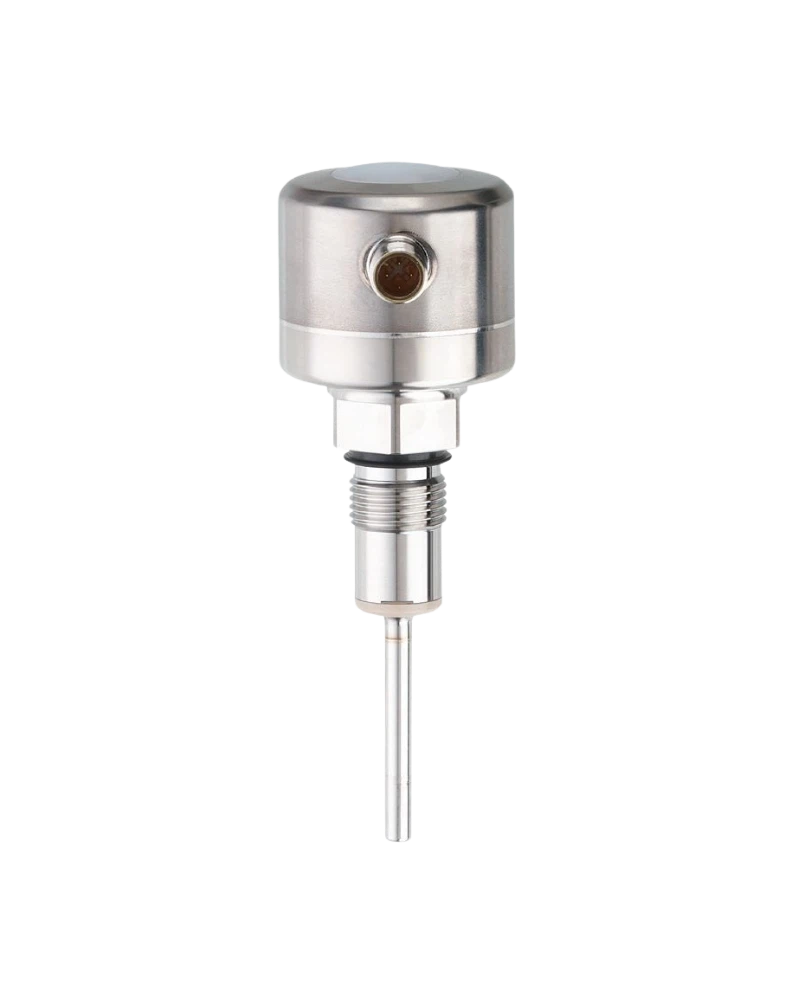

TCC501 is a compact IFM temperature transmitter designed for reliable temperature measurement in process automation applications. It uses a Pt1000 measuring element together with an integrated reference element for enhanced measurement monitoring. The compact 30 mm installation length is suitable for applications with limited installation depth. The transmitter supports 4...20 mA analogue transmission and IO-Link communication. It is suitable for hygienic processing, liquid applications, machine automation and temperature-critical industrial systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TCC501 provides dependable temperature measurement where compact installation is important. The Pt1000 sensing element delivers stable resistance-based temperature measurement. Its short insertion length makes the transmitter useful in compact process equipment and machinery. The 4...20 mA output provides straightforward connection to conventional control systems. IO-Link adds digital configuration and diagnostic capabilities.
The reference element provides additional measurement supervision compared with a conventional temperature transmitter. Internal diagnostics can help identify deviations and abnormal operating conditions. IO-Link enables diagnostic information to be accessed remotely from the automation system. This improves process visibility and can simplify maintenance. The transmitter is therefore suitable for applications requiring reliable and monitored temperature measurement.
The compact construction allows installation where space is restricted. Stainless-steel process construction supports demanding industrial applications. The transmitter can be integrated into pipes, process equipment and automated machinery. It is suitable for liquid-processing and hygienic applications when installed according to system requirements. Its compact size makes it useful for OEM machine designs and production skids.
30 mm installation length
Pt1000 sensor
Integrated reference element
Self-monitoring
4...20 mA output
IO-Link communication
Compact construction
Digital diagnostics
Digital parameterisation
Stainless-steel construction
Hygienic process integration
Continuous measurement
PLC compatibility
Process monitoring
Maintenance diagnostics
Compact process machinery
Food processing machines
Liquid handling equipment
Filling machines
Dosing equipment
Beverage machinery
Dairy equipment
Process skids
Machine automation
Temperature monitoring
PLC-controlled machinery
Hygienic production systems
Industrial process control
OEM machinery
Production equipment
| Specification | Details |
|---|---|
| Product | TCC501 |
| Model | TCC030K1ER12-A-DKG/US |
| Product Type | Temperature transmitter |
| Manufacturer | IFM |
| Sensor Element | Pt1000 |
| Reference Element | Integrated |
| Installation Length | 30 mm |
| Output | 4...20 mA |
| Communication | IO-Link |
| Supply Voltage | 18...32 V DC |
| Construction | Stainless steel |
| Application | Temperature monitoring |
| Medium | Liquids/gases |
| Self-Monitoring | Yes |
| Diagnostics | Yes |
| Parameterisation | Digital |
| Installation | Process mounted |
| Process Design | Hygienic |
| Signal Interface | Analogue/digital |
| PLC Integration | Yes |
| Sensor Principle | Resistance |
| Maintenance | Diagnostic support |
| Environment | Industrial |
| Typical Use | Compact machinery |
