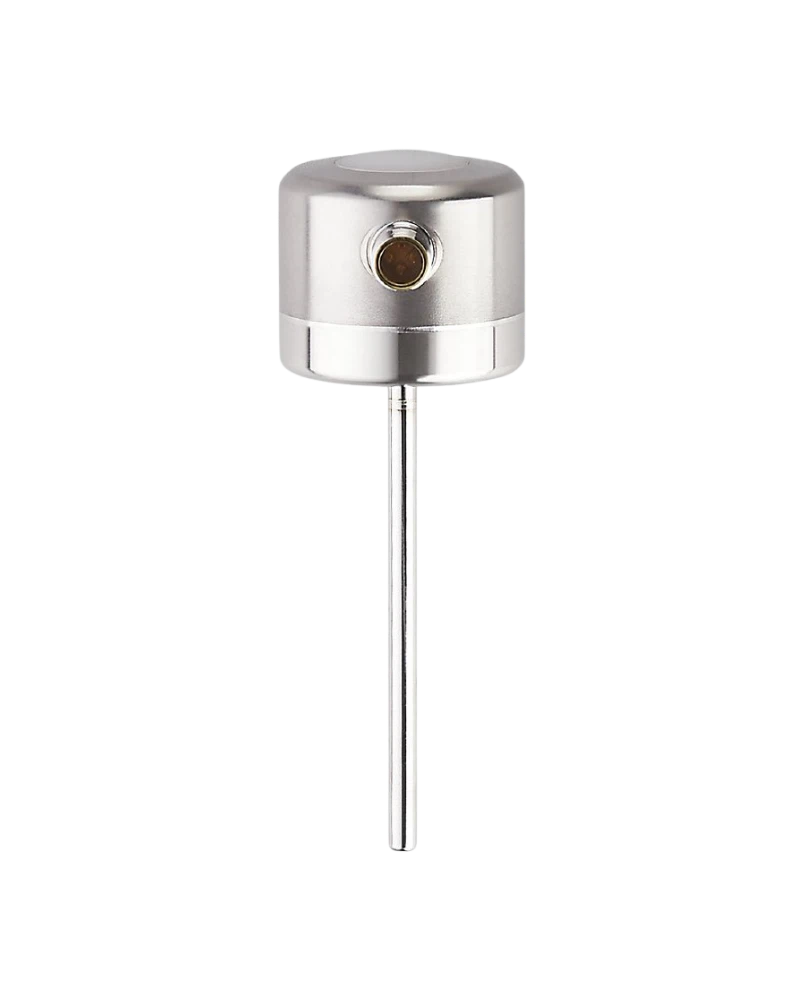

The TCC281 is a long-probe temperature transmitter with a 450 mm installation length for deep process measurement. It combines precise Pt1000 sensing with NTC reference monitoring to support reliable temperature measurement and sensor diagnostics. The device provides 4...20 mA analogue output together with IO-Link communication for advanced process integration. Its Ø6 mm process connection and stainless-steel construction support demanding industrial installations. It is particularly suitable for large vessels, process tanks and applications where extended insertion depth is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC281 is designed for deep temperature measurement in industrial process equipment. Its extended 450 mm probe reaches measurement points that shorter sensors cannot access. The self-monitoring architecture helps maintain measurement confidence over extended operating periods. IO-Link enables access to digital measurement data and diagnostic parameters. The transmitter is suitable for automation systems requiring reliable temperature feedback.
The transmitter provides a -25...160 °C measurement range. The Pt1000 element delivers the primary process temperature measurement. The NTC reference element supports calibration-check and sensor-condition monitoring. The 4...20 mA output integrates with conventional process controllers. IO-Link adds digital measurement and diagnostic functionality.
The 450 mm installation length supports deep immersion into tanks and process vessels. The Ø6 mm process connection provides a compact sensing tip. 316L stainless steel is used for the wetted construction. IP68/IP69K protection supports demanding washdown and industrial environments. Diagnostic functions provide information about calibration status and sensor faults.
450 mm extended installation length
Pt1000 measurement element
NTC reference element
Self-monitoring technology
-25...160 °C measuring range
4...20 mA output
IO-Link 1.1 communication
Calibration-check function
316L stainless-steel construction
IP68/IP69K protection
Large process tanks
Storage vessels
Food and beverage production
Dairy processing
Brewing systems
Thermal treatment processes
Deep process measurement
Heating and cooling systems
Industrial PLC automation
Process quality monitoring
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC281 |
| 2 | Order Code | TCC450K1ED06-A-DKG/US |
| 3 | Product Type | Long-probe temperature transmitter |
| 4 | Product Family | TCC Series |
| 5 | Measuring Element | Pt1000 |
| 6 | Reference Element | NTC |
| 7 | Measuring Range | -25...160 °C |
| 8 | Factory Setting | -10...150 °C |
| 9 | Analogue Output | 4...20 mA |
| 10 | Diagnostic Output | Switching output |
| 11 | Communication | IO-Link 1.1 |
| 12 | Process Connection | Clamp adapter Ø6 mm |
| 13 | Installation Length | 450 mm |
| 14 | Probe Diameter | 6 mm |
| 15 | Pressure Rating | 160 bar |
| 16 | Media | Liquids and gases |
| 17 | Supply Voltage | 18...32 V DC |
| 18 | Current Consumption | 10 mA at 24 V |
| 19 | Protection Class | III |
| 20 | Protection Rating | IP68 / IP69K |
| 21 | Analogue Resolution | 0.05 K |
| 22 | IO-Link Resolution | 0.01 K |
| 23 | Accuracy | ±0.2 K |
| 24 | Housing/Wetted Material | Stainless steel 316L |
| 25 | Electrical Connection | M12 A-coded |
