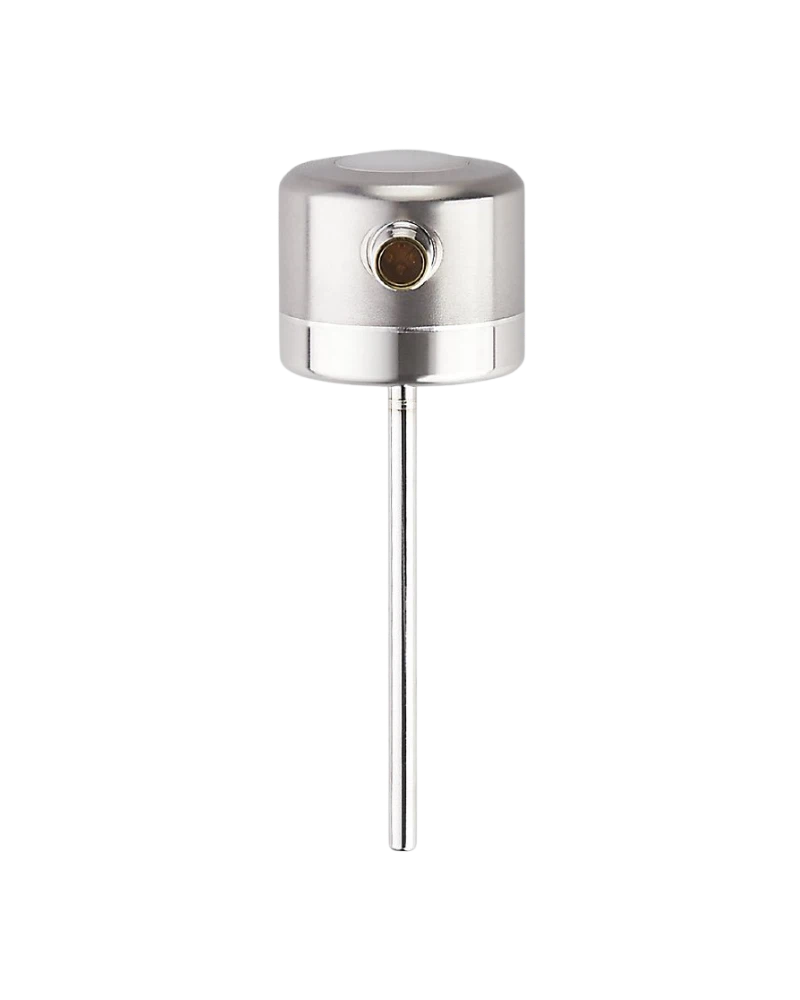

TCC281 is a hygienic temperature transmitter with a 450 mm installation length for applications requiring extended temperature probe insertion. It combines Pt1000 temperature sensing with a reference element for improved measurement monitoring. The device provides a scalable 4...20 mA output and IO-Link communication for flexible control-system integration. Its stainless-steel construction is designed for demanding process and hygienic environments. The transmitter is suitable for tanks, vessels, liquid processing systems and temperature-critical production applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 450 mm installation length allows the sensing element to reach deeper process locations. This makes TCC281 particularly suitable for larger vessels, tanks and process equipment. The Pt1000 sensor provides reliable temperature measurement for continuous monitoring. The 4...20 mA signal can be connected to conventional automation systems. IO-Link provides additional digital communication and parameter access.
TCC281 incorporates reference-based measurement supervision for improved process confidence. The internal monitoring architecture helps identify deviations in sensor behaviour. Diagnostic information can be used during troubleshooting and maintenance operations. Digital communication provides greater transparency than a basic analogue temperature sensor. This can help operators detect potential measurement issues before they affect process quality.
The transmitter is intended for demanding process environments where reliable temperature information is required. Stainless-steel construction supports use in industrial and hygienic machinery. The extended insertion length is useful for temperature measurement within large tanks and vessels. It can be integrated into automated food, beverage and liquid-processing systems. Its flexible communication architecture supports both traditional PLC systems and IO-Link installations.
450 mm installation length
Pt1000 sensing element
Reference element
Self-monitoring functionality
4...20 mA output
IO-Link interface
Digital configuration
Process diagnostics
Stainless-steel housing
Hygienic process construction
Continuous measurement
PLC integration
Extended insertion capability
Temperature deviation monitoring
Industrial process suitability
Large process tanks
Storage vessels
Food processing plants
Beverage production
Dairy processing
Liquid handling systems
Brewing systems
Filling and dosing equipment
Process skids
CIP monitoring
Temperature-sensitive manufacturing
Industrial automation
Process control
Tank temperature monitoring
Hygienic machinery
| Specification | Details |
|---|---|
| Product | TCC281 |
| Model | TCC450K1ED06-A-DKG/US |
| Product Type | Temperature transmitter |
| Manufacturer | IFM |
| Sensor | Pt1000 |
| Reference Sensor | Integrated |
| Installation Length | 450 mm |
| Output Signal | 4...20 mA |
| Digital Interface | IO-Link |
| Supply Voltage | 18...32 V DC |
| Construction | Stainless steel |
| Application | Process temperature |
| Medium | Liquids/gases |
| Monitoring | Self-monitoring |
| Diagnostics | Yes |
| Parameterisation | IO-Link |
| Process Connection | Hygienic |
| Mounting | Process installation |
| Signal Integration | PLC |
| Measurement Type | Resistance temperature |
| Installation Environment | Industrial |
| Hygiene Suitability | Yes |
| Maintenance Function | Diagnostics |
| Typical Use | Tanks and vessels |
