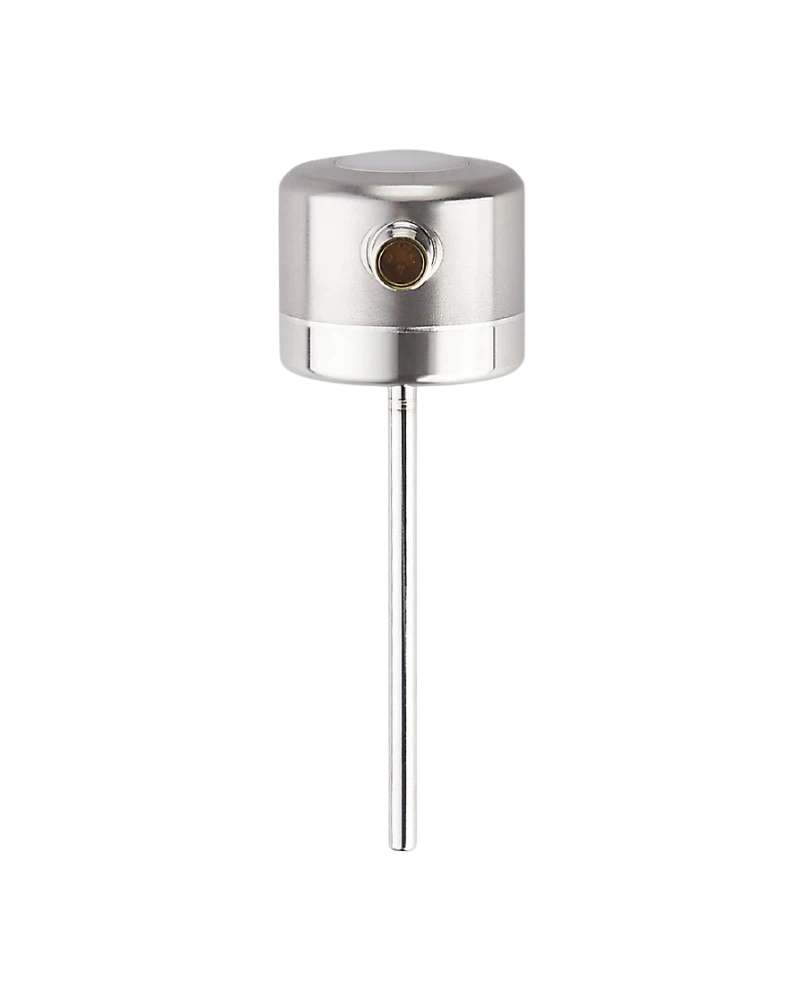

The TCC261 is a 250 mm temperature transmitter designed for deeper process measurement applications. It combines a Pt1000 temperature element with an NTC reference element for continuous monitoring of measurement accuracy. The transmitter supports a 4...20 mA analogue signal and IO-Link digital communication. Its Ø6 mm clamp-adapter process connection enables integration into hygienic process installations. With robust materials, diagnostic functionality and a long probe, it is suitable for demanding industrial temperature applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC261 provides extended probe reach for applications where the sensing point is located deeper inside a vessel or process line. Its self-monitoring design helps identify measurement deviations during operation. IO-Link provides access to process data and diagnostic parameters. The transmitter can therefore support both conventional control architectures and modern digital automation systems. Its long probe configuration provides flexibility for process installation design.
The measuring range extends from -25...160 °C. Pt1000 provides the primary temperature measurement while NTC supports sensor monitoring. The analogue output can be scaled for integration with process controllers. IO-Link provides a high-resolution digital temperature value and diagnostic information. Calibration-check limits can be configured for monitoring sensor performance.
The 250 mm installation length provides extended immersion into process equipment. A Ø6 mm clamp-adapter configuration supports compact process integration. The stainless-steel construction provides durability for liquid and gas measurement. Diagnostic outputs can communicate calibration-check status and error conditions. Protection against overload, short circuit and reverse polarity improves operational reliability.
250 mm probe length
Pt1000 temperature sensing
NTC reference monitoring
Self-monitoring capability
-25...160 °C measuring range
4...20 mA analogue output
IO-Link 1.1 interface
Calibration-check diagnostics
Robust 316L construction
M12 electrical connection
Process tanks
Mixing vessels
Food production systems
Dairy processing
Beverage plants
Thermal process control
Heating and cooling systems
Deep insertion measurement points
PLC automation
Condition-based maintenance
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC261 |
| 2 | Order Code | TCC250K1ED06-A-DKG/US |
| 3 | Product Type | Temperature transmitter |
| 4 | Product Family | TCC Series |
| 5 | Measuring Element | Pt1000 |
| 6 | Reference Element | NTC |
| 7 | Measuring Range | -25...160 °C |
| 8 | Factory Setting | -10...150 °C |
| 9 | Analogue Output | 4...20 mA |
| 10 | Digital Output | Diagnostic switching output |
| 11 | Communication | IO-Link 1.1 |
| 12 | Process Connection | Clamp adapter Ø6 mm |
| 13 | Installation Length | 250 mm |
| 14 | Probe Diameter | 6 mm |
| 15 | Pressure Rating | 160 bar |
| 16 | Media | Liquids and gases |
| 17 | Supply Voltage | 18...32 V DC |
| 18 | Current Consumption | 10 mA at 24 V |
| 19 | Protection Class | III |
| 20 | Protection Rating | IP68 / IP69K |
| 21 | Output Accuracy | ±0.2 K |
| 22 | Analogue Resolution | 0.05 K |
| 23 | Housing Material | Stainless steel 316L |
| 24 | Electrical Connection | M12 |
| 25 | Diagnostics | Calibration check and error diagnostics |
