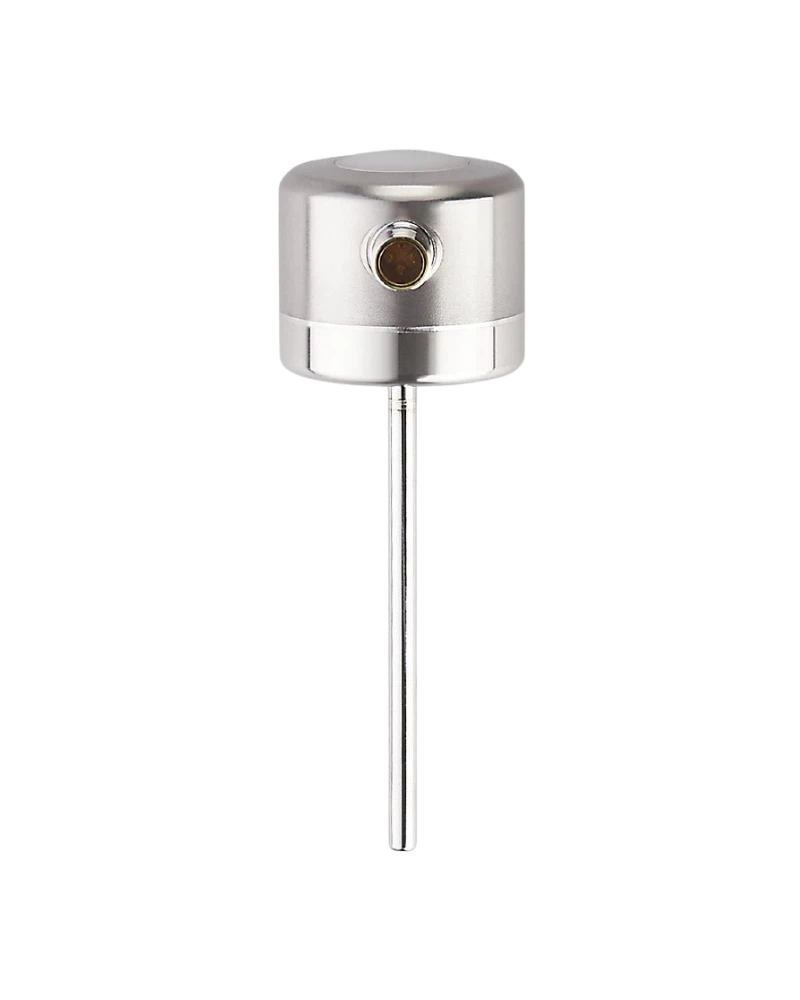

The TCC241 is a 150 mm temperature transmitter designed for reliable temperature measurement in industrial process environments. Its Pt1000 sensing element provides accurate measurement while the NTC reference element supports continuous sensor monitoring. IO-Link communication enables digital access to measurement data, parameters and diagnostic information. The Ø6 mm clamp-adapter process connection provides a compact and process-friendly installation arrangement. Its robust construction and self-monitoring capability make it suitable for demanding food, beverage and process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC241 is designed for applications requiring dependable temperature measurement with additional sensor diagnostics. The 150 mm probe provides increased insertion depth for process vessels and pipelines. Its self-monitoring architecture supports improved measurement confidence between calibration intervals. IO-Link provides advanced configuration and diagnostic capabilities. The transmitter is suited to automated process-control environments where data quality is important.
The device measures temperatures from -25...160 °C. A Pt1000 element provides the primary measurement signal and an NTC element provides reference monitoring. The 4...20 mA output can be connected directly to standard PLC analogue inputs. IO-Link allows digital temperature values and diagnostic information to be transmitted. Calibration-check functionality provides an additional tool for monitoring sensor performance.
The 150 mm installation length provides deeper process insertion than shorter variants. The Ø6 mm process interface supports a compact hygienic installation. Stainless-steel wetted materials are suitable for liquids and gases. IP68/IP69K protection supports operation in demanding environments. Diagnostic functions assist maintenance personnel with sensor-condition monitoring.
150 mm installation length
Pt1000 primary sensor
NTC reference sensor
Self-monitoring architecture
-25...160 °C measuring range
4...20 mA output
IO-Link communication
Calibration-check capability
IP68/IP69K protection
316L stainless-steel wetted parts
Food processing equipment
Dairy production systems
Beverage manufacturing
Process vessels
Liquid temperature control
Heating and cooling systems
Hygienic process automation
PLC-based monitoring
Quality assurance
Maintenance diagnostics
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC241 |
| 2 | Order Code | TCC150K1ED06-A-DKG/US |
| 3 | Product Type | Temperature transmitter |
| 4 | Product Family | TCC Series |
| 5 | Measuring Element | Pt1000 |
| 6 | Reference Element | NTC |
| 7 | Measuring Range | -25...160 °C |
| 8 | Factory Setting | -10...150 °C |
| 9 | Analogue Output | 4...20 mA |
| 10 | Diagnostic Output | 1 switching output |
| 11 | Communication | IO-Link |
| 12 | Process Connection | Clamp adapter Ø6 mm |
| 13 | Installation Length | 150 mm |
| 14 | Probe Diameter | 6 mm |
| 15 | Pressure Rating | 160 bar |
| 16 | Media | Liquids and gases |
| 17 | Operating Voltage | 18...32 V DC |
| 18 | Current Consumption | 10 mA at 24 V |
| 19 | Protection Class | III |
| 20 | Protection Rating | IP68 / IP69K |
| 21 | Reverse Polarity | Yes |
| 22 | Short-Circuit Protection | Yes |
| 23 | Housing | Stainless steel 316L |
| 24 | Accuracy | ±0.2 K |
| 25 | Electrical Connection | M12, A-coded |
