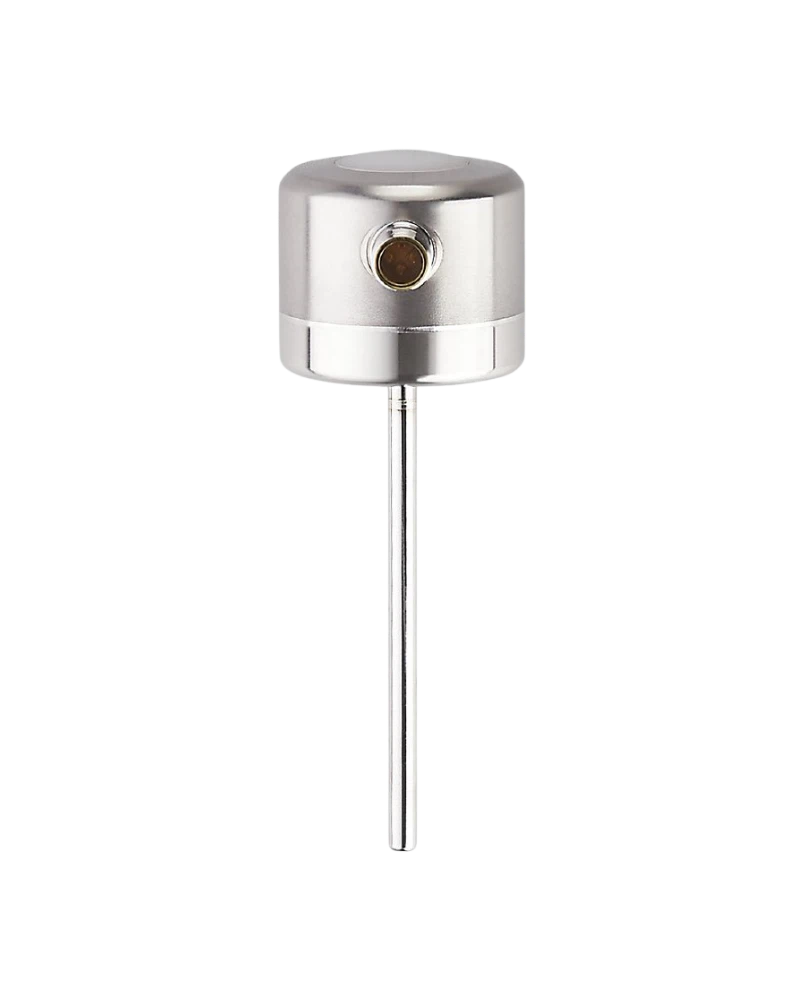

The TCC231 is a precision temperature transmitter with a 100 mm installation length for reliable process temperature measurement. It combines Pt1000 sensing with NTC-based reference monitoring to improve measurement reliability. The transmitter provides both 4...20 mA analogue output and IO-Link communication for flexible system integration. Its Ø6 mm clamp-adapter process connection supports compact hygienic process installations. The device is designed for continuous temperature monitoring, calibration support and automated diagnostics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC231 provides reliable temperature measurement for industrial process automation. Its self-monitoring architecture allows measurement quality to be evaluated during operation. IO-Link gives maintenance and automation systems access to detailed process and diagnostic data. The transmitter is designed with hygienic materials and process-compatible construction. Its 100 mm probe length provides deeper process penetration than compact variants.
The Pt1000 element provides the primary temperature signal while the NTC reference element supports diagnostic monitoring. The measuring range is -25...160 °C. The analogue output provides a standard 4...20 mA process signal. IO-Link provides digital measurement data and parameterisation. Calibration-check limits can be configured to support condition-based maintenance.
The TCC231 uses a Ø6 mm clamp-adapter connection. Its 100 mm installation length supports deeper measurement locations. Stainless-steel wetted materials provide good resistance for demanding process environments. The device incorporates short-circuit, overload and reverse-polarity protection. Diagnostic functions provide early indication of calibration deviations and sensor errors.
100 mm installation length
Pt1000 sensing element
NTC reference monitoring
-25...160 °C range
4...20 mA output
IO-Link 1.1 communication
Calibration-check function
Diagnostic output
IP68/IP69K protection
316L stainless-steel wetted construction
Food and beverage plants
Dairy processing
Brewing systems
Liquid process monitoring
Thermal process control
Cooling equipment
Heating systems
Hygienic production lines
Temperature quality control
Predictive maintenance
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC231 |
| 2 | Order Code | TCC100K1ED06-A-DKG/US |
| 3 | Product Type | Temperature transmitter |
| 4 | Product Family | TCC Series |
| 5 | Measuring Element | 1 × Pt1000 |
| 6 | Reference Element | 1 × NTC |
| 7 | Measuring Range | -25...160 °C |
| 8 | Factory Setting | -10...150 °C |
| 9 | Analogue Output | 4...20 mA |
| 10 | Digital Output | 1 diagnostic output |
| 11 | Communication | IO-Link |
| 12 | IO-Link Revision | 1.1 |
| 13 | Process Connection | Clamp adapter Ø6 mm |
| 14 | Installation Length | 100 mm |
| 15 | Probe Diameter | 6 mm |
| 16 | Pressure Rating | 160 bar |
| 17 | Media | Liquids and gases |
| 18 | Supply Voltage | 18...32 V DC |
| 19 | Current Consumption | 10 mA at 24 V |
| 20 | Protection Class | III |
| 21 | Protection Rating | IP68 / IP69K |
| 22 | Housing Material | Stainless steel 316L |
| 23 | Electrical Connection | M12 |
| 24 | Accuracy | ±0.2 K |
| 25 | Response Time | T05/T09 approx. 1.5/4 s |
